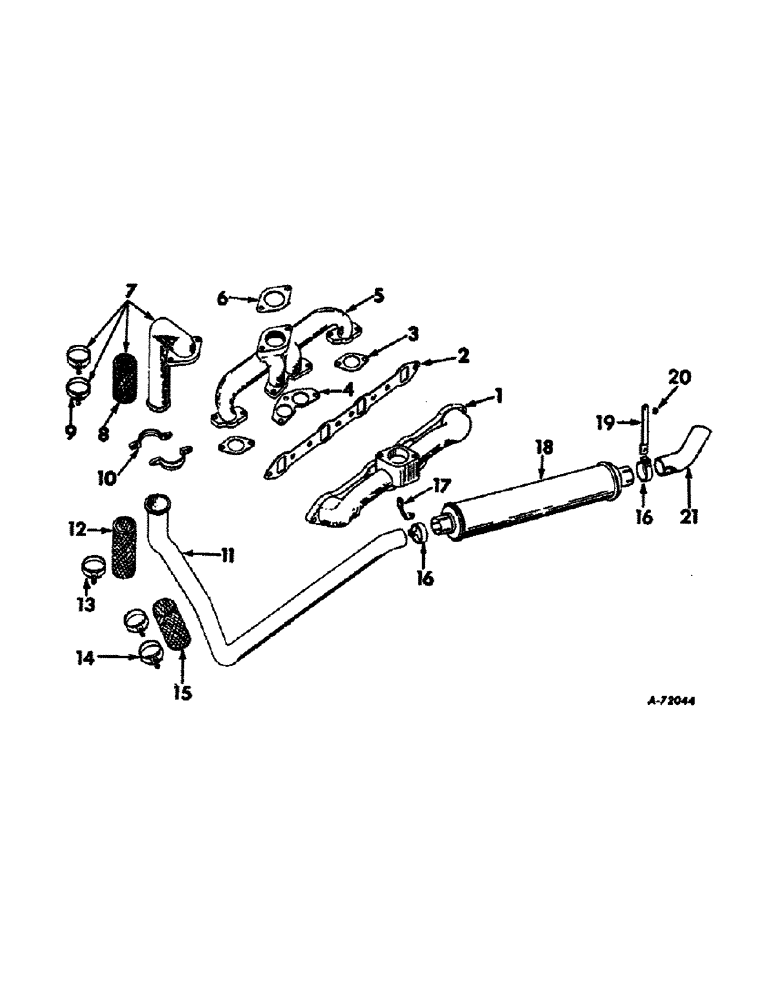

Запчасти Case IH D-188 (C-24) - UNDERSLUNG EXHAUST SYSTEM, INTERNATIONAL 504 AND 2504 TRACTORS

1

308389R1

MANIFOLD, intake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

308390R1

GASKET

intake manifold

1шт.

3

278313R2

GASKET

exhaust manifold end

2шт.

4

278314R1

MANIFOLD GASKET

exhaust manifold center

1шт.

5

308388R1

MANIFOLD, exhaust

1шт.

39524DA

NUT

manifold stud

7шт.

113934H

WASHER

manifold front stud nut

2шт.

6

369282R2

GASKET

exhaust pipe elbow

1шт.

7

375125R11

ELBOW ASSY., exhaust pipe

1шт.

179842

SPACER

3/8-16 x 1-3/8 cap

2шт.

8

375127R1

TAPE, exhaust pipe elbow

1шт.

9

46364H

CLAMP

exhaust pipe elbow tape

2шт.

10

369283R1

CLAMP

exhaust pipe

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 x 1-3/4 hex-hd cap, Pipe oil filling, TD-7E, TD-8E, 100E and 125E crawlers

1шт.

11

375126R22

PIPE, EXHAUST SYSTEM

PIPE WITH FOUR CLAMPS, 29979D, One sleeve, 275561R2 and one sleeve, 382291R2, Exhaust

1шт.

12

375561R2

SLEEVE

exhaust pipe asbestos, 11 in.

1шт.

13

29979D

CLAMP

exhaust pipe sleeve

2шт.

14

29979D

CLAMP

exhaust pipe sleeve

2шт.

15

382291R2

SLEEVE

exhaust pipe asbestos, 6 in.

1шт.

16

48889DA

CLAMP

exhaust muffler

2шт.

93082H

NUT

muffler clamp

2шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

2шт.

17

369286R1

SUPPORT

muffler front

1шт.

18

371039R91

MUFFLER

exhaust

1шт.

18

371039R91GV

MUFFLER

Value, Muffler

1шт.

19

369287R1

SUPPORT

muffler rear

1шт.

20

392664R1

SPACER, muffler support rear

1шт.

21

369288R1

PIPE

TAIL

1шт.
