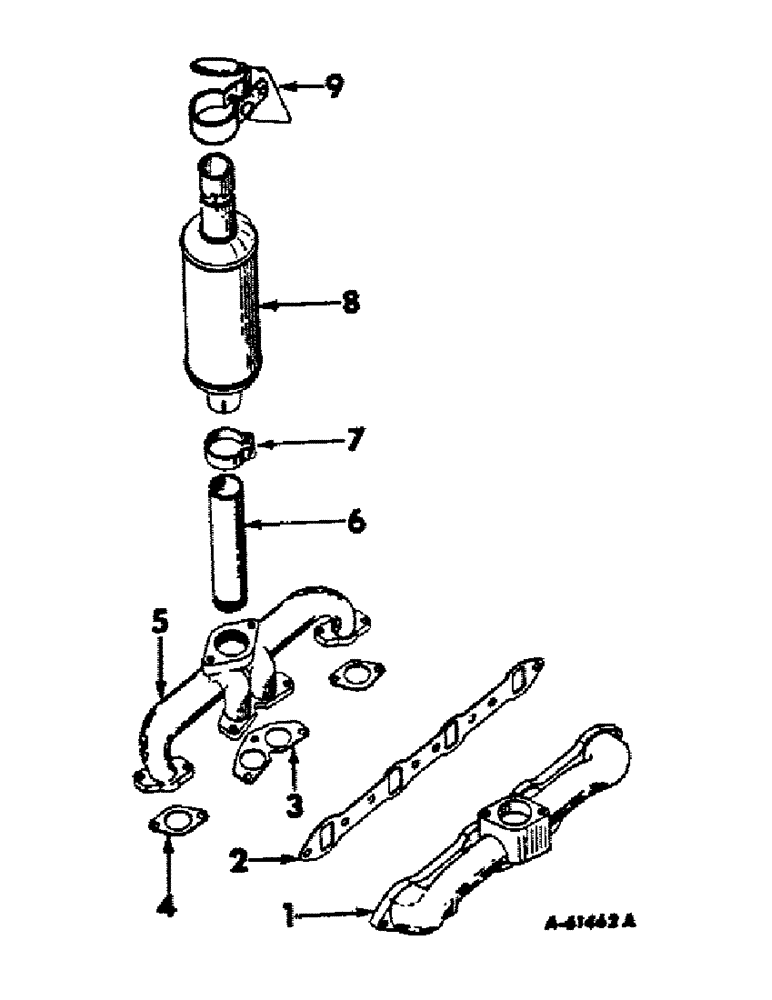

Запчасти Case IH D-188 (C-23) - EXHAUST SYSTEM, INTERNATIONAL 504 AND 2504 TRACTORS WITH VERTICAL EXHAUST

1

308389R1

MANIFOLD, intake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

308390R1

GASKET

intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

exhaust manifold center

1шт.

4

278313R2

GASKET

exhaust manifold end

2шт.

5

308388R1

MANIFOLD, exhaust

1шт.

113934H

WASHER

manifold front stud nut

2шт.

39524DA

NUT

manifold stud

7шт.

6

361384R1

PIPE

exhaust

1шт.

7

403585R1

CLAMP

exhaust muffler, Replaces 350602R1

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

403551R1

MUFFLER

exhaust, Replaces 370644R92

1шт.

8

403551R1GV

MUFFLER

Value, Muffler

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

321574R91

PLUG

CAP ASSY., exhaust

1шт.
