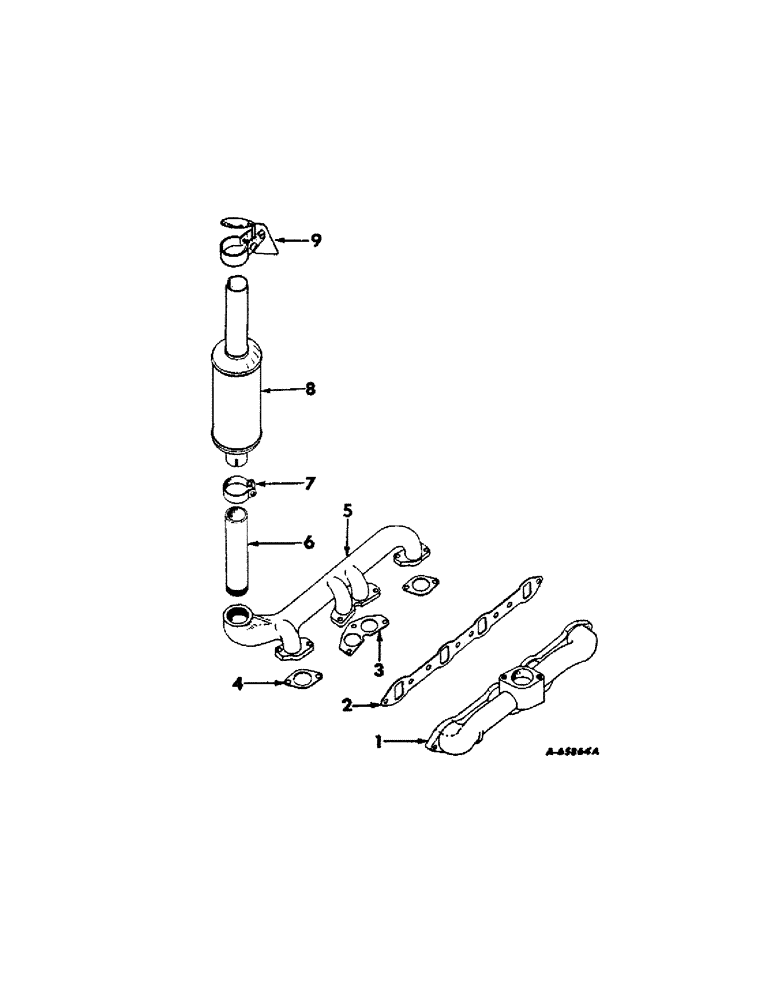

Запчасти Case IH D-188 (C-22[A]) - EXHAUST SYSTEM, 504 AND 2504 TRACTORS

1

308389R1

MANIFOLD, intake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

308390R1

GASKET

intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

exhaust manifold center

1шт.

4

278313R2

GASKET

exhaust manifold end

2шт.

5

318382R1

MANIFOLD, exhaust

1шт.

39524DA

NUT

manifold stud

7шт.

113934H

WASHER

manifold front stud nut

2шт.

6

361384R1

PIPE

exhaust

1шт.

7

403585R1

CLAMP

exhaust muffler, Replaces 350602R1

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

403550R1

NO LONGER SERVICED

MUFFLER, exhaust, Replaces 70644R92

1шт.

9

381799R91

CAP

ASSY., exhaust

1шт.
