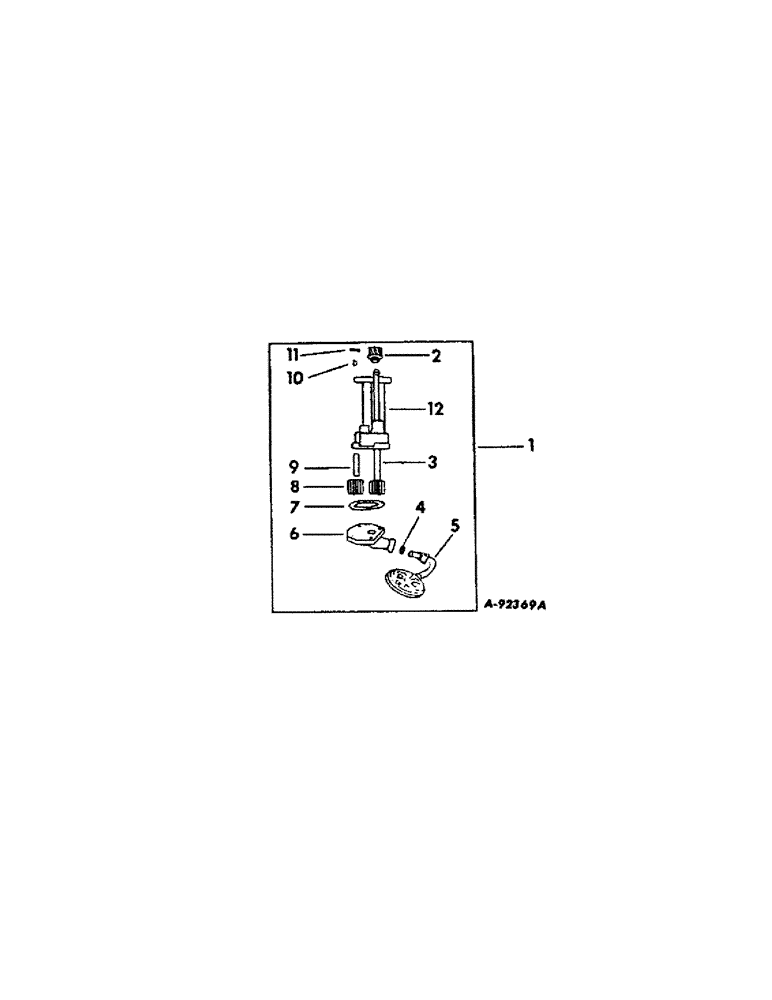

Запчасти Case IH D-188 (C-21) - OIL PUMP

1

230421R91

PUMP, HYDRAULIC

PUMP ASSY., oil less screen, Less ref. nos. 4 and 5

1шт.

735245C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1928211C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

69608R1

GEAR

GEAR, oil pump drive

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR ASSY., oil pump drive

1шт.

4

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, oil pump screen

1шт.

5

308367R91

FILTER CARTRIDGE

SCREEN ASSY., oil pump

1шт.

137195

PIN, 1/8 x 1-1/4 cotter

1шт.

6

169679R1

SPARE PART COVER, oil pump body

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

69607R1

GASKET

GASKET, oil pump body cover

1шт.

8

227713R1

GEAR WHEEL

GEAR, oil pump body driven

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, oil pump idler gear

1шт.

10

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

11

112011

PIN,1/8" x 7/8"

PIN, 1/8 x 7/8 sq ends straight

1шт.
