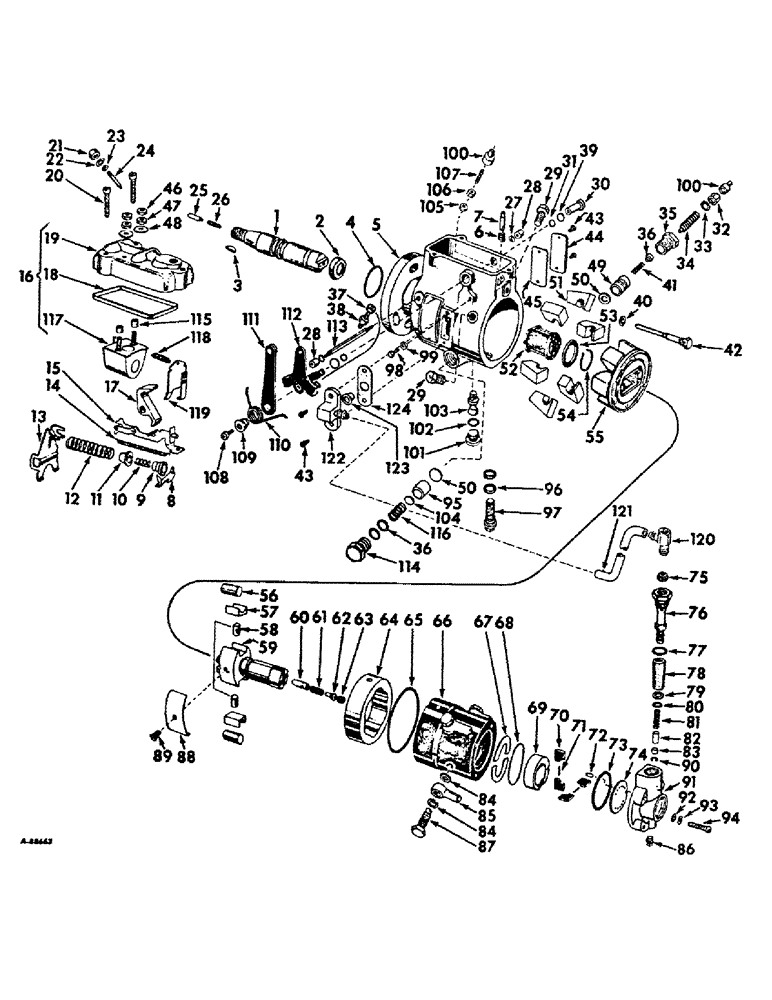

Запчасти Case IH D-188 (C-17) - FUEL INJECTION PUMP, ROOSA MASTER

324279R91

PUMP ASSY., fuel injection, Also order ref. nos. 16 and 30

1шт.

1

687003C91

SHAFT

W/PIN 687004C1, drive, Replaces 304715R1

1шт.

687004C1

PIN, shaft roll

1шт.

2

313288R1

SEAL

drive shaft oil

2шт.

3

106750

KEY

5/32 x 5/8 Woodruff 6, Used only w/shaft, 304715R1

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL, pilot tube oil

1шт.

5

702858C91

HOUSING

ASSY., pump, Will work for 324187R91

1шт.

619449C1

BUSHING

housing

1шт.

6

304746R1

VALVE SPRING

SPRING, metering valve

1шт.

7

313683R1

VALVE

metering

1шт.

313286R1

WASHER

SHIM, metering valve

1шт.

8

324188R91

ARM

ASSY., metering valve

1шт.

9

368015R1

RETAINER, idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

idling spring

1шт.

12

367999R1

VALVE SPRING

SPRING, governor control

1шт.

13

321367R1

ARM

governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

702350C1

LINKAGE

HOOK ASSY., governor linkage

1шт.

313242R1

SCREW, linkage hook adjusting

1шт.

313240R1

WASHER, hook adjusting screw

1шт.

16

702369C91

COVER AND SOLENOID ASSY., Consists of ref. nos. 18, 19, 16 through 48, 115 and 117 through 119

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

control cover

1шт.

19

304744R1

COVER ASSY

COVER, control

1шт.

20

319674R1

SCREW

cover hold-down

3шт.

319676R1

WASHER

cover screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER, cover screw lock

3шт.

21

368009R1

NUT

low idle adjusting screw

1шт.

22

304728R1

WASHER

low idle adjusting screw

1шт.

23

304729R1

SEAL

low idle adjusting screw

1шт.

24

304788R1

SET SCREW

low idle adjusting

1шт.

25

319725R1

BUTTON, thrust

1шт.

26

304717R1

VALVE SPRING

SPRING, thrust button

1шт.

27

304721R1

SEAL

pivot shaft

2шт.

28

368018R1

NUT

pivot shaft retaining

2шт.

29

368810R1

SCREW, head locking

2шт.

30

615828C1

SHAFT

shut-off

1шт.

313690R1

LOCK ASSY

CLIP, shaft retainer

1шт.

31

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, throttle shaft

2шт.

32

312313R1

NUT, advance adjusting screw lock

1шт.

33

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, advance adjusting screw

1шт.

34

319691R1

CAPSCREW,1/4" x 1.385"

SCREW, advance adjusting

1шт.

3

319693R1

PLUG

piston hole power

1шт.

36

319687R1

WIPER SEAL

advance piston hole plug

4шт.

37

304789R1

ADJUSTMENT SCREW

high idle adjusting

1шт.

38

307818R1

LOCK NUT

NUT, high idle adjusting

1шт.

39

319744R1

WASHER

throttle shaft seal

2шт.

40

368014R1

WASHER

guide stud

1шт.

41

319692R1

GUIDE

advance adjusting spring

1шт.

42

313677R1

STUD

governor idling spring

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

cover

4шт.

44

304740R1

COVER ASSY

COVER, timing line

1шт.

45

367979R1

GASKET

cover

1шт.

46

321314R1

NUT

terminal contact lock

2шт.

47

308618R1

NUT, contact screw retaining

2шт.

48

308617R1

WASHER, contact screw

2шт.

49

319987R1

PISTON, power

1шт.

50

368035R1

WASHER

advance slide

2шт.

51

319669R1

WEIGHT

governor

6шт.

52

321369R1

ARM

SLEEVE, governor thrust

1шт.

53

368342R1

THRUST WASHER

governor sleeve thrust

1шт.

54

368345R1

SNAP RING

RING, governor cage retaining

1шт.

55

702585C91

RETAINER ASSY., governor weight

1шт.

615768C1

CLIP

RING, retaining

1шт.

56

368805R1

ROLLER

plunger cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, cam roller

2шт.

58

317893R1

PLUNGER, rotor

2шт.

58

317892R1

PLUNGER, rotor

2шт.

58

317891R1

PLUNGER, rotor

2шт.

58

317894R1

PLUNGER, rotor

2шт.

58

317895R1

PLUNGER, rotor

2шт.

59

NSS

NOT SOLD SEPARAT

Not furnished separately

1шт.

60

606141C1

LOCK VALVE

VALVE, distributor rotor delivery, Optional w/606142C1

1шт.

60

606142C1

LOCK VALVE

VALVE, distributor rotor delivery, Optional w/606141C1

1шт.

51

606144C1

VALVE SPRING

SPRING, distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP, distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, delivery valve retaining

1шт.

64

319733R1

RING, cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

319726R91

HEAD AND ROTOR ASSY., hydraulic, Consists of

1шт.

317895R1

PLUNGER

2шт.

304800R1

WASHER

RETAINER

2шт.

304801R1

RING

1шт.

317901R1

CAPSCREW,3/25" x 7/32"

SCREW

1шт.

606144C1

VALVE SPRING

SPRING

1шт.

606145C1

LOCK ASSY

STOP

1шт.

304804R1

VALVE

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

KIT, crankshaft bearing cap intermediate

1шт.

69

304745R1

GUIDE

LINER, transfer pump

1шт.

70

346728R1

BLADE

transfer pump

4шт.

71

346724R1

SPRING

transfer pump blade

2шт.

72

368812R1

DOWEL

PIN, end plate roll

1шт.

73

367982R1

O-RING,0.154" Width

transfer pump

1шт.

74

346725R1

PLATE ASSY.

PLATE, thrust

1шт.

75

346705R91

PLUG

ASSY., end plate adjusting

1шт.

76

615356C1

PLATE ASSY.

SLEEVE, end plate

1шт.

77

368030R1

RING

O-RING, end plate sleeve

1шт.

78

346708R1

FILTER

ELEMENT, filter

1шт.

79

346709R1

SEAL

SEAL, element

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, End plate sleeve

1шт.

81

346707R1

VALVE SPRING

SPRING, regulating

1шт.

82

367988R1

PLUNGER

PISTON, regulating

1шт.

83

615142C1

SEAL

SEAL, regulating piston

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel line connector screw

8шт.

85

CONNECTOR, injector pipe, Furnished as part of injection pipe

1шт.

86

615695C1

PLUG

end plate pipe

1шт.

340214R1

SEAL

end plate ring

1шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

6шт.

88

304797R1

VALVE SPRING

SPRING, leaf

1шт.

89

368806R1

SCREW, leaf spring adjusting

1шт.

90

346731R1

RING

retaining

1шт.

91

346704R1

PLATE ASSY.

PLATE, end

1шт.

615489C1

LOCK ASSY

STRAP, end plate

1шт.

92

319676R1

WASHER

end plate screw

4шт.

93

115545

LOCK WASHER,Int Tooth, #10

WASHER, end plate screw lock

4шт.

94

615491C1

SCREW

end plate

4шт.

95

319986R1

PISTON, spring

1шт.

96

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Head locating screw

2шт.

97

319679R91

CAPSCREW

SCREW, head locating

1шт.

98

20789R1

SCREW, torque screw hole plug

1шт.

99

324791R1

SEAL ASSY.

WASHER, torque screw hole plug

1шт.

100

313287R1

COVER ASSY

CAP, torque and advance adj screw

2шт.

101

319688R1

PLUG

advance screw hole

1шт.

102

319689R1

WIPER SEAL

advance screw hole plug

1шт.

103

347316R1

SCREW

cam advance

1шт.

104

368575R1

SHIM

advance, .004, .006

1шт.

104

372617R1

SHIM, advance, .0155, .0175

1шт.

104

372618R1

SHIM

advance, .032, .034

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, torque screw

1шт.

106

321313R1

NUT

torque screw

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW, torque

1шт.

108

217921

SCREW, throttle lever spring

1шт.

109

304743R1

RETAINER

throttle lever spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle lever

1шт.

111

304738R91

LEVER

ASSY., throttle

1шт.

112

702393C1

SHAFT

ASSY., throttle, Will work for 304749R91

1шт.

113

368016R1

SHAFT

governor arm pivot

1шт.

114

319684R1

PLUG, piston hole spring

1шт.

115

308619R1

RING

TUBE, cover insulating

2шт.

116

319989R1

SPRING, outer advance

1шт.

117

321695R91

FRAME

ASSY., solenoid

1шт.

118

308616R1

VALVE SPRING

SPRING, shut-down coil

1шт.

119

308615R91

LEVER

ARM ASSY., shut-down

1шт.

120

610954C91

FITTING ASSY., inlet

1шт.

121

610952C1

HOSE,0.20" ID x 5.41"

- Return oil 0.20" ID x 5.41"

1шт.

122

610955C1

SCREW

SCREEN, return oil

1шт.

123

610951C91

FITTING

ASSY., timing and return

1шт.

124

610953C1

GASKET

timing and return fitting

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead pump and sealing

6шт.

279673R91

WASHER

WIRE, torque screw cap seal

1шт.

266758R91

CABLE PULLING GRIP

CABLE ASSY., ground

1шт.
