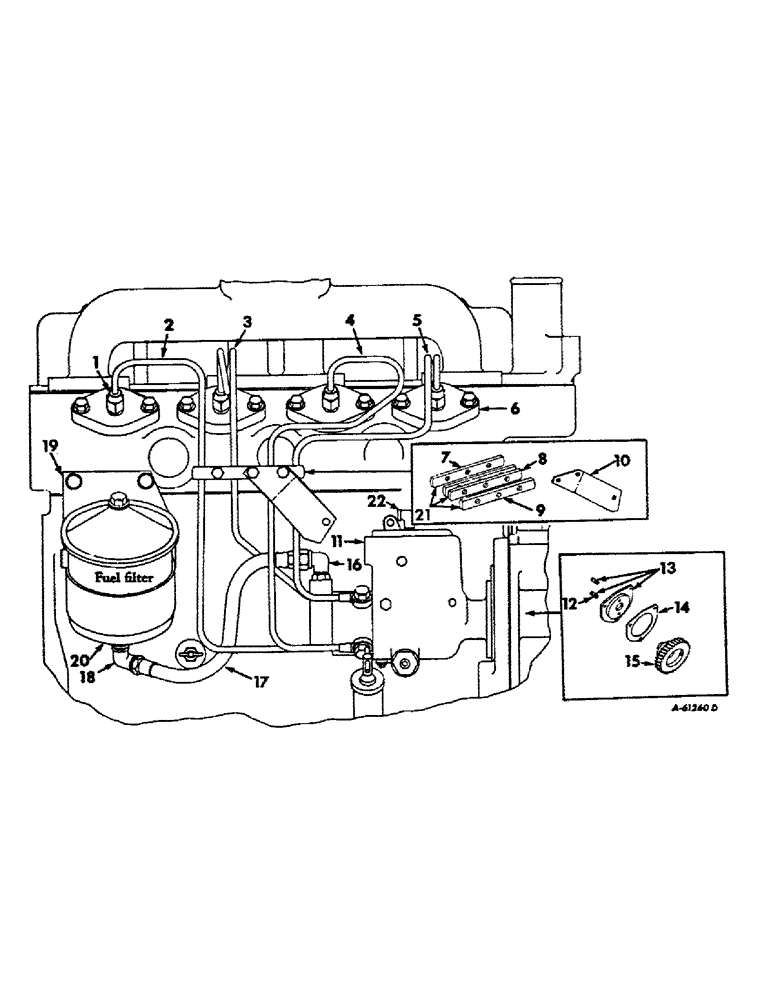

Запчасти Case IH D-188 (C-15) - FUEL INJECTION PUMP, CONNECTIONS AND PIPES

1

250617R1

NUT

injection pipe nozzle end

4шт.

250610R2

GUARD

SLEEVE, injection pipe nut

4шт.

2

312528R11

LINE

PIPE ASSY., injection cylinder no. 4

1шт.

3

312527R11

LINE

PIPE ASSY., injection cylinder no. 3

1шт.

4

312526R11

LINE

PIPE ASSY., injection cylinder no. 2

1шт.

5

312525R11

PIPE

ASSY., injection cylinder no. 1

1шт.

6

NOZZLE ASSY., injection, For components see list of parts of injection nozzle

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

7

670002C1

CLAMP, injection pipe tapped, Order package 701126C91

1шт.

8

670003C1

PAD, injection pipe clamp

2шт.

9

670001C11

CLAMP, injection pipe drilled, Order package 701126C91

1шт.

181316

SUPPORT

3шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

315995R1

BRACKET, engine shut-off wire, 504 and 2504 tractors

1шт.

11

PUMP ASSY., injection, For components see list of parts under details of injection pump

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

142619H

WASHER

injection pump

2шт.

12

303463R1

STUD

injection pump mounting

2шт.

13

303462R11

ADAPTER, w/two studs, 303463R1 injection pump

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 13/32 x 13/16 x 16 ga

3шт.

278347R1

GASKET

injection pump

1шт.

15

612114C1

GEAR, injection pump

1шт.

114497

NUT, 9/16-18 hex. jam

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

16

118755

ELBOW

3/8-90 deg injection pump inlet

1шт.

17

277042R91

HOSE

fuel filter to pump 5/16 x 9/16 x 10-1/2 long

1шт.

18

137538

YOKE

ELBOW, 1/4-90 deg fuel filter outlet

1шт.

19

609331C1

BRACKET, fuel filter, 3514 tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

310381R1

BRACKET, fuel filter, 504 and 2504 tractors

1шт.

20

FILTER ASSY., final fuel, For components see list of parts under details of fuel filter

1шт.

21

701126C91

PACKAGE, pipe clamp service

1шт.

22

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

fuel return pipe

1шт.

19984R1

TUBE NUT,7/16"-24

NUT, return pipe elbow

1шт.

279673R91

WASHER

SEAL, injection pump torque screw

1шт.
