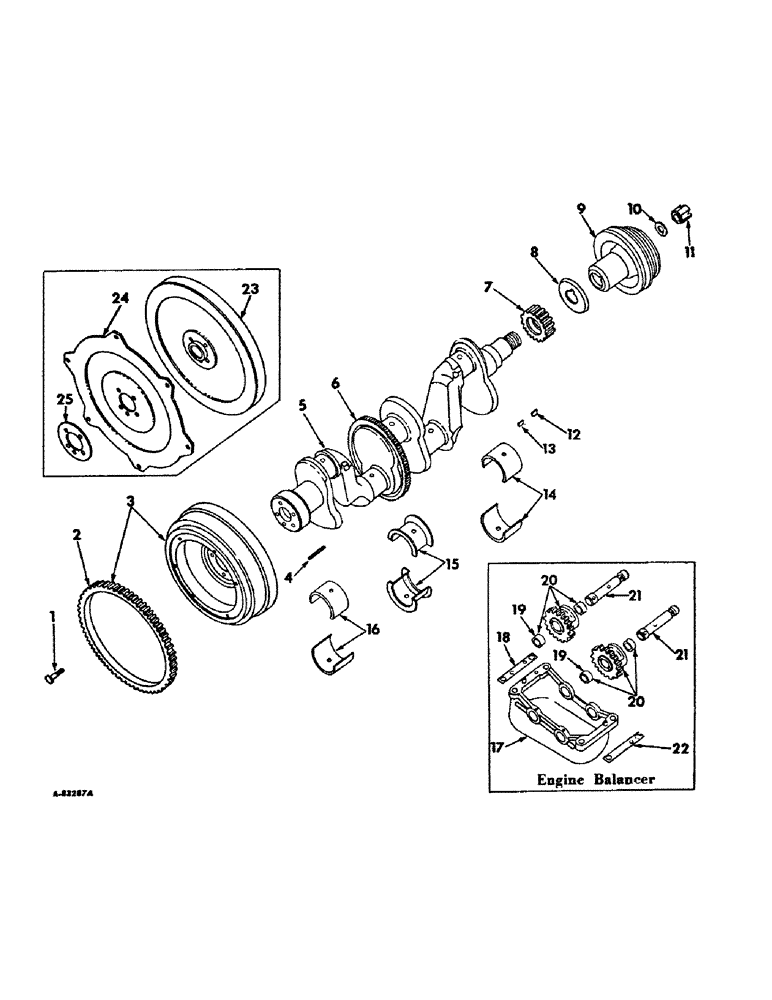

Запчасти Case IH D-188 (C-11) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

601557C1

BOLT

flywheel to crankshaft, Tractors w/o hydra-shuttle transmission

4шт.

2

367042R1

GEAR

flywheel ring, 134 teeth, 3514 tractors w/engine serial no. 29632 and below, 504 and 2504 tractors with engine serial no. 13675 and below

1шт.

2

396421R1

GEAR, RING

GEAR, flywheel ring, 133 teeth, 3514 tractors w/engine serial no. 29633 and above, 504 and 2504 tractors with engine serial no. 13676 and above, Tractors w/standard and hydrostatic transmissions

1шт.

3

310378R11

FLYWHEEL ASSY., Engine serial no. 13675 and below

1шт.

3

701095C91

FLYWHEEL, w/ring gear, Engine serial no. 13676 and above, 3514 tractors w/o hydra-shuttle transmission

1шт.

3

612310C11

FLYWHEEL, w/ring gear, 3514 tractors w/hydrostatic transmissions

1шт.

4

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

5

318405R91

CRANKSHAFT

ASSY., Std., Consists of

1шт.

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING

4шт.

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

1шт.

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

1шт.

367276R91

BEARING LINER

BEARING

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

308398R1

GEAR

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

82970R1

STUD

PIN

1шт.

5

320252R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, Consists of four connecting rod bearings, Three crankshaft bearings and crankshaft

1шт.

6

308398R1

GEAR, balancer drive

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

7

367272R1

PINION

GEAR, crankshaft

1шт.

8

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

9

607090C11

PULLEY ASSY., fan drive, 3514 tractors

1шт.

9

308401R11

PULLEY

fan drive, 504 and 2504 tractors

1шт.

10

70109R1

WASHER

starting crank nut

1шт.

11

V84199

NUT,1"-14, Thin

crankshaft

1шт.

12

117994

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY, fan drive pulley

1шт.

13

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, crankshaft gear

1шт.

14

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY., crankshaft front, 2 halves, Std.

1шт.

14

367303R91

BEARING ASSY

BEARING ASSY., crankshaft front, 2 halves, .002 U/S

1шт.

14

376673R91

BEARING ASSY

BEARING ASSY., crankshaft front, 2 halves, .010 U/S

1шт.

14

376686R91

BEARING ASSY

BEARING ASSY., crankshaft front, 2 halves, .020 U/S

1шт.

14

367291R91

BEARING

ASSY., crankshaft front, 2 halves, .030 U/S

1шт.

15

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSY., crankshaft center, 2 halves, Std.

1шт.

15

367306R91

BEARING ASSY

BEARING ASSY., crankshaft center, 2 halves, .002 U/S

1шт.

15

376676R91

JOURNAL

BEARING ASSY., crankshaft center, 2 halves, .010 U/S

1шт.

15

376689R91

BEARING ASSY

BEARING ASSY., crankshaft center, 2 halves, .020 U/S

1шт.

15

367294R91

BEARING ASSY

ASSY., crankshaft center, 2 halves, .030 U/S

1шт.

16

367276R91

BEARING LINER

BEARING ASSY., crankshaft rear, 2 halves, Std.

1шт.

16

367300R91

CRANKSHAFT BEARING

BEARING ASSY., crankshaft rear, 2 halves, .002 U/S

1шт.

16

376670R91

BEARING ASSY

BEARING ASSY., crankshaft rear, 2 halves, .010 U/S

1шт.

16

376683R91

BEARING ASSY

BEARING ASSY., crankshaft rear, 2 havles, .020 U/S

1шт.

16

367288R91

BEARING ASSY

ASSY., crankshaft rear, 2 halves, .030 U/S

1шт.

17

310146R11

HOUSING ASSY., engine balancer

1шт.

141239

AXLE PIN,3/8" x 11/16"

PIN, 3/8 x 11/16 dowel

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

310149R1

SHIM

balancer housing LH

2шт.

19

310384R1

BEARING

BUSHING, balancer weight shaft

4шт.

20

310147R11

PINION

WEIGHT ASSY., balancer

2шт.

21

310148R11

SHAFT

ASSY., balancer weight

2шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

22

310150R1

SHIM

balancer housing RH

2шт.

23

391607R2

FLYWHEEL, Tractors with hydra-shuttle transmission, 3514 tractors

1шт.

24

391608R1

PLATE, converter drive, Tractors with hydra-shuttle transmission, 3514 tractors

1шт.

25

391609R1

RETAINER, back-up, Tractors with hydra-shuttle transmission, 3514 tractors

1шт.

601557C1

BOLT

back-up retainer

4шт.
