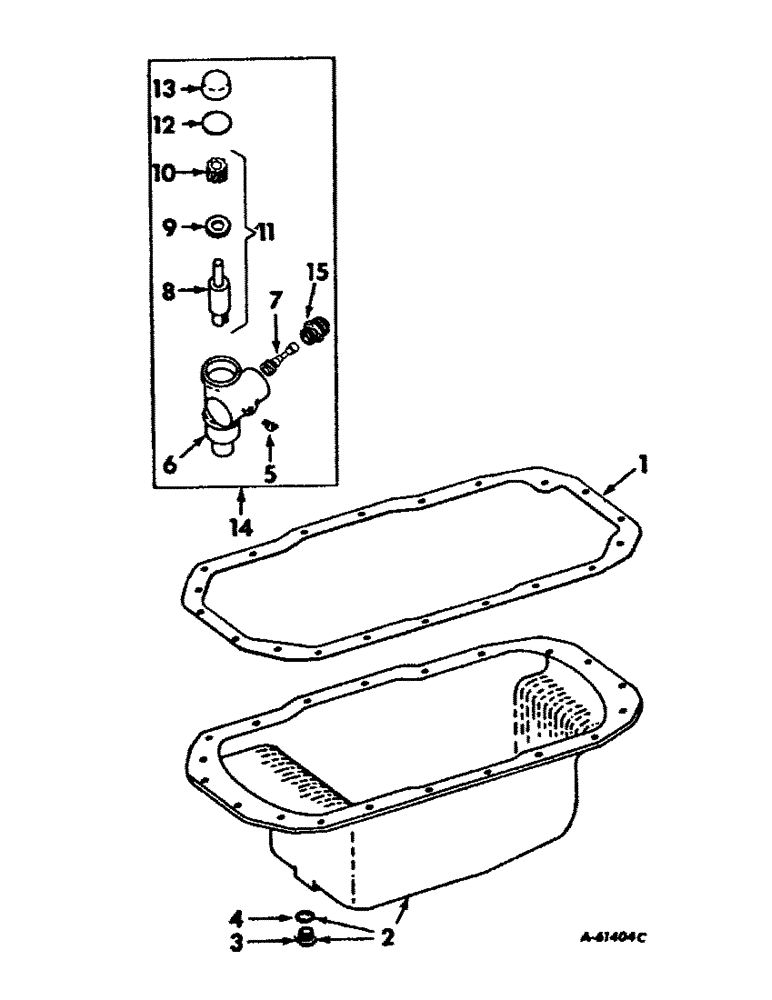

Запчасти Case IH D-188 (C-10) - CRANKCASE OIL PAN AND SUPPORT

1

308416R1

OIL PAN GASKET SET

crankcase pan

1шт.

2

332510R91

PAN

ASSY., crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

3

445096

PLUG

crankcase oil pan drain, Will work for 359875R1

1шт.

4

3405H

GASKET

crankcase oil pan drain plug

1шт.

5

62022R91

FITTING

lubrication

1шт.

6

312158R1

HOUSING

oil pump shaft support

1шт.

7

368245R12

PINION

GEAR, tachometer drive, For use w/support assy., 670186C91

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT, tachometer drive, Not serviced separately, Order shaft assy., 312159R11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, tachometer thrust, Not serviced separately, Order shaft assy., 312159R11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR, tachometer drive, Not serviced separately, Order shaft assy., 312159R11

1шт.

11

312159R11

SHAFT

ASSY., tachometer drive

1шт.

12

312162R1

PLATE ASSY.

PLATE, tachometer thrust

1шт.

13

172557

PLUG

oil pump shaft support housing

1шт.

14

670186C91

SUPPORT ASSY., oil pump shaft, Replaces 349384R91

1шт.

15

368246R1

CONNECTION

HOUSING, tachometer connection, For use w/support assy., 670186C91

1шт.
