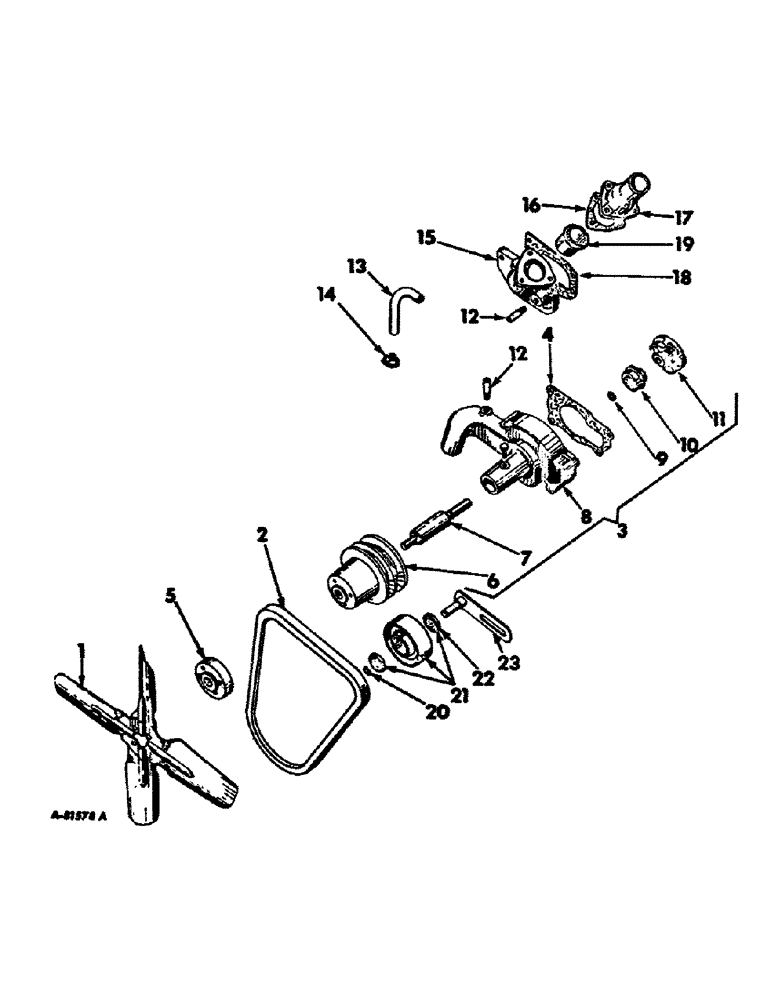

Запчасти Case IH BD-154 (B-08) - THERMOSTAT AND WATER PUMP, 424, 2424, 444 AND 2444 TRACTORS

1

706749R91

FAN

BLADE ASSY., fan

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

237153R1

BELT,37.00" L

V-BELT, Fan

1шт.

3

0C

ORDER COMPONENTS

PUMP ASSY., water, Order components, Consists of

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

704216R4

BODY

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

1шт.

3040316R1

HUB

1шт.

709909R2

TURBINE

IMPELLER

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

703822R91

SEAL

1шт.

3065123R1

TUBE

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

water pump

1шт.

5

389272R1

SPACER, fan

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

3040316R1

HUB

water pump pulley

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle

1шт.

8

704216R4

BODY

water pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retaining

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, Water pump spindle

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R2

TURBINE

IMPELLER, water pump

1шт.

12

3065123R1

TUBE

connecting, thermostat by-pass hose

2шт.

13

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

14

3074617R1

CLAMP

CLIP, thermostat by-pass hose

2шт.

15

3069642R11

HOUSING

ASSY., thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

3065125R1

GASKET

thermostat housing cover

1шт.

17

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

703815R1

GASKET

thermostat housing

1шт.

19

369322R91

THERMOSTAT

180 deg opening

1шт.

20

3040306R1

SNAP RING

CIRCLIP, retaining fan belt adjusting pulley

1шт.

21

3040302R11

PULLEY

fan belt adjusting

1шт.

22

392672R91

BEARING, BALL,15 mm ID x 35 mm OD x 11 mm

BEARING, fan belt adjusting pulley

2шт.

23

3040313R21

BRACKET

fan belt adjusting pulley

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3048877R92

WATER PUMP

PUMP, for Ref. only, it subs to all components

1шт.
