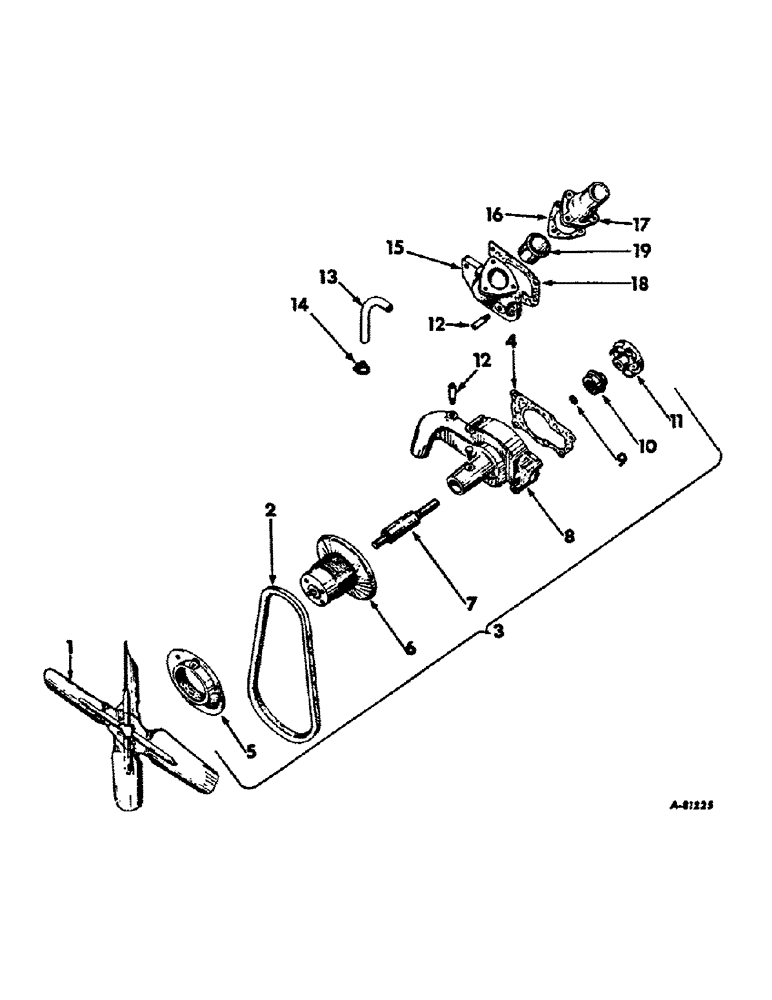

Запчасти Case IH BD-154 (B-06) - THERMOSTAT AND WATER PUMP, B-414, 3414, 3444 TRACTORS AND 7000 FORK LIFT

1

706749R91

FAN

BLADE ASSY., fan

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

376371R1

V-BELT,0.64" W

Fan, B-414, 3414, 3444 tractors 0.64" W

1шт.

2

3060464R1

BELT,0.66" W

Fan, Heavy duty, B-414 tractors 0.66" W

1шт.

2

401691R1

BELT,0.50" W x 34.00" L

Fan, 7000 fork lift 0.50" W x 34.00" L

1шт.

3

703820R94

WATER PUMP

PUMP ASSY., water, Consists of

1шт.

3

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

704216R4

BODY

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

1шт.

703825R11

FLANGE

1шт.

704222R1

HUB

1шт.

709909R2

TURBINE

IMPELLER

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

703822R91

SEAL

1шт.

3065123R1

TUBE

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

water pump

1шт.

5

703825R11

FLANGE

w/screw, 102831 and nut, 114502 water pump pulley

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

5/16-18 x 7/8 hdls-dog-pt set

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle

1шт.

8

704216R4

BODY

water pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retaining

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

water pump spindle

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R2

TURBINE

IMPELLER, water pump

1шт.

12

3065123R1

TUBE

connecting, Thermostat by-pass hose

2шт.

13

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

14

3074617R1

CLAMP

CLIP, thermostat by-pass hose

2шт.

15

3069642R11

HOUSING

thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

3065125R1

GASKET

thermostat housing cover

1шт.

17

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

703815R1

GASKET

thermostat housing

1шт.

19

369322R91

THERMOSTAT

180 deg opening

1шт.
