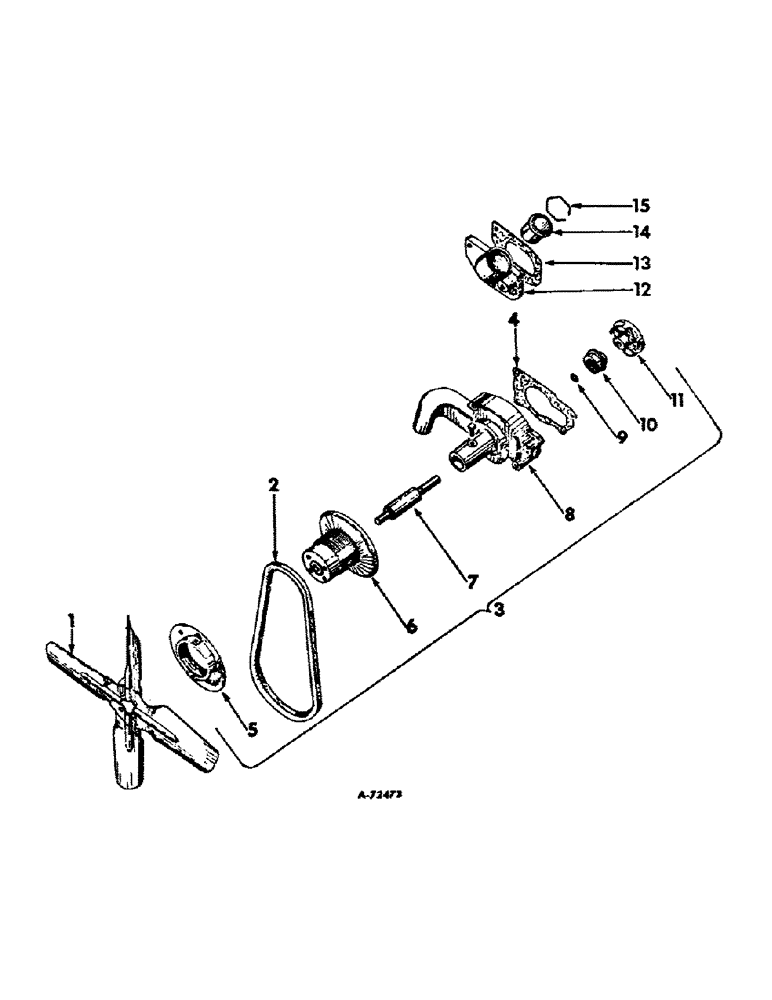

Запчасти Case IH BD-154 (B-05) - THERMOSTAT AND WATER PUMP, B-414 AND 3414 LOADER TRACTORS WITH SERIAL NUMBER 32794 AND BELOW

1

706749R91

FAN

BLADE ASSY., fan

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

376371R1

V-BELT,0.64" W

Fan, Optional w/3060464R1 0.64" W

1шт.

2

3060464R1

BELT,0.66" W

Fan, Optional 2/376371R1 0.66" W

1шт.

3

389918R91

PACKAGE

PUMP ASSY., water, Order package, 389919R91

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

water pump

1шт.

5

703825R11

FLANGE

WITH SCREW, 102831 and nut, 114502, Water pump pulley

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

5/16 x 7/8 hdls dog-pt set

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle

1шт.

8

704216R2

BODY

water pump, Order body, 704216R3 and plug, 103884

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retaining

1шт.

143992

PLUG,Slotted, 1/4" NPT

1/4 slt-hdls pipe

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 x 3/4 x 3/32

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R2

TURBINE

IMPELLER, water pump

1шт.

12

703814R1

HOUSING

thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

703815R1

GASKET

thermostat housing

1шт.

14

369322R91

THERMOSTAT

180 degree opening

1шт.

15

3040778R2

RING, SNAP

RING, thermostat retainer

1шт.
