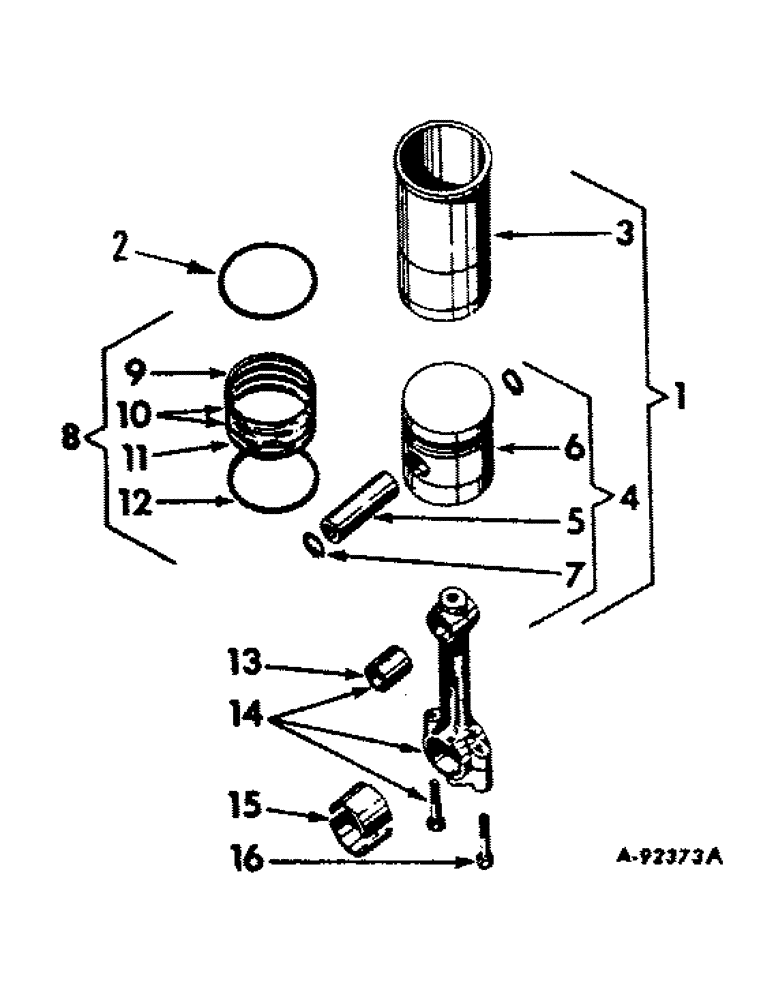

Запчасти Case IH BD-154 (B-04) - CONNECTING RODS, PISTONS AND SLEEVES

1

3044479R94

PISTON & RINGS KIT

SLEEVE W/PISTON ASSY., cylinder, Consists of

4шт.

3044480R94

PISTON

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

2

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

3

SLEEVE, cylinder, Order sleeve w/piston assy., 3044479R94

4шт.

4

3044480R94

PISTON

W/RINGS ASSY., Consists of

4шт.

3044476R1

PIN

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

NSS

NOT SOLD SEPARAT

RINGS

2шт.

NSS

NOT SOLD SEPARAT

RINGS

2шт.

5

3044476R1

PIN

piston, Std.

4шт.

5

3044477R1

PIN, piston, .005 oversize

1шт.

6

PISTON, Order sleeve w/piston assy., 3044479R94

4шт.

7

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

8

3114778R91

PISTON RING SET

SET, piston ring

4шт.

9

RING, compression piston, top groove, Order ref. no. 8

4шт.

10

RING, compression piston, second and third groove, Order ref. no. 8

8шт.

11

RING, oil control piston, fourth groove, Order ref. no. 8

4шт.

12

RING, oil control piston, fifth or bottom groove, Order ref. no. 8

4шт.

13

3043611R1

BUSHING

piston pin

4шт.

14

3061214R91

PITMAN ASSY.

ROD ASSY., connecting, 424, 2424, 444, 2444, 3414, 3444 tractors and 7000 fork lift, B-414 w/engine serial no. 13736 and above

4шт.

14

704088R91

ROD, CONNECTING

ROD ASSY., connecting, B-414 w/engine serial no. 13735 and below

4шт.

15

3070536R11

BEARING

ASSY., connecting rod, 2 havles, Std., Will work for 710327R11 for 424 and 2424 tractors

4шт.

15

3070538R11

JOURNAL

BEARING ASSY., connecting rod, 2 halves, .015 U/S, Will work for 713660R11 424 and 2424 tractors

4шт.

15

3070537R11

BEARING

ASSY., connecting rod, 2 halves, .030 U/S, Will work for 710737R11 for 424 and 2424 tractors

1шт.

15

3070546R91

BEARING LINER

SET, connecting rod bearing, Std.

1шт.

15

3070539R91

BEARING LINER

SET, connecting rod bearing, .015 U/S

1шт.

15

3070547R91

CRANKSHAFT BEARING

SET, connecting rod bearing, .030 U/S

1шт.

16

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.
