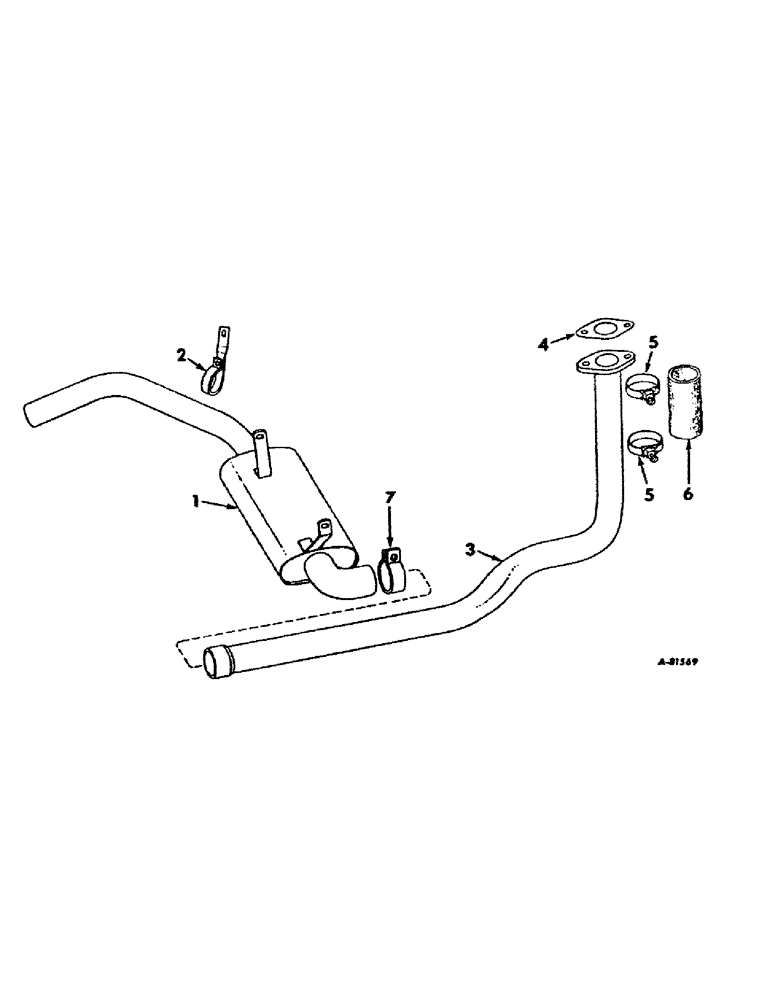

Запчасти Case IH BD-154 (B-32) - EXHAUST SYSTEM, 424, 2424, 444 AND 2444 TRACTORS WITH UNDERSLUNG EXHAUST

1

3047572R92

MUFFLER

exhaust

1шт.

2

705449R92

CLAMP, muffler outer pipe support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

388828R11

PIPE

ASSY., exhaust

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

388980R1

GASKET

exhaust pipe flange

1шт.

5

29979D

CLAMP

exhaust pipe asbestos tape

2шт.

6

370639R1

TAPE

exhaust pipe asbestos

1шт.

7

48889DA

CLAMP

exhaust muffler front

1шт.

102635

NUT,3/8"-16, G5

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
