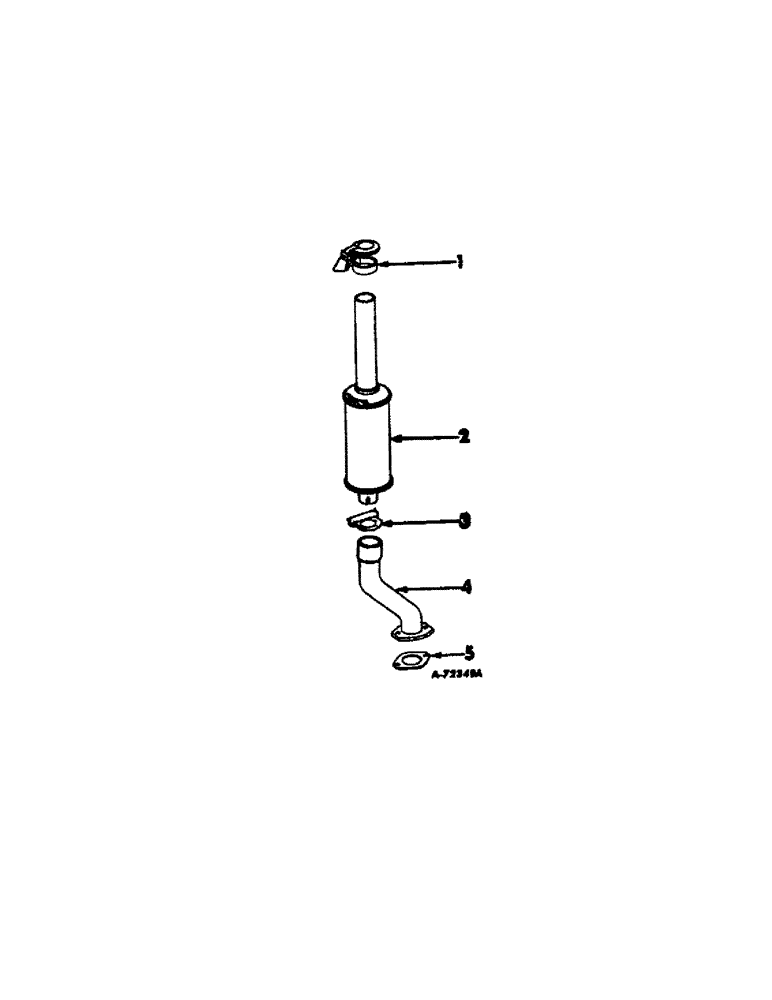

Запчасти Case IH BD-154 (B-31) - EXHAUST SYSTEM, 3414, 3444 TRACTORS AND 7000 FORK LIFT

1

403586R1

CYLINDER END CAP

CAP ASSY., weather, Replaces 321574R91

1шт.

2

403551R1

MUFFLER

exhaust, Replaces 370644R92

1шт.

2

403551R1GV

MUFFLER

Value, Muffler

1шт.

3

403585R1

CLAMP

muffler exhaust, Replaces 170571R91

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

378926R11

PIPE

ASSY., exhaust

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe stud 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

704613R1

GASKET

exhaust pipe flange

1шт.
