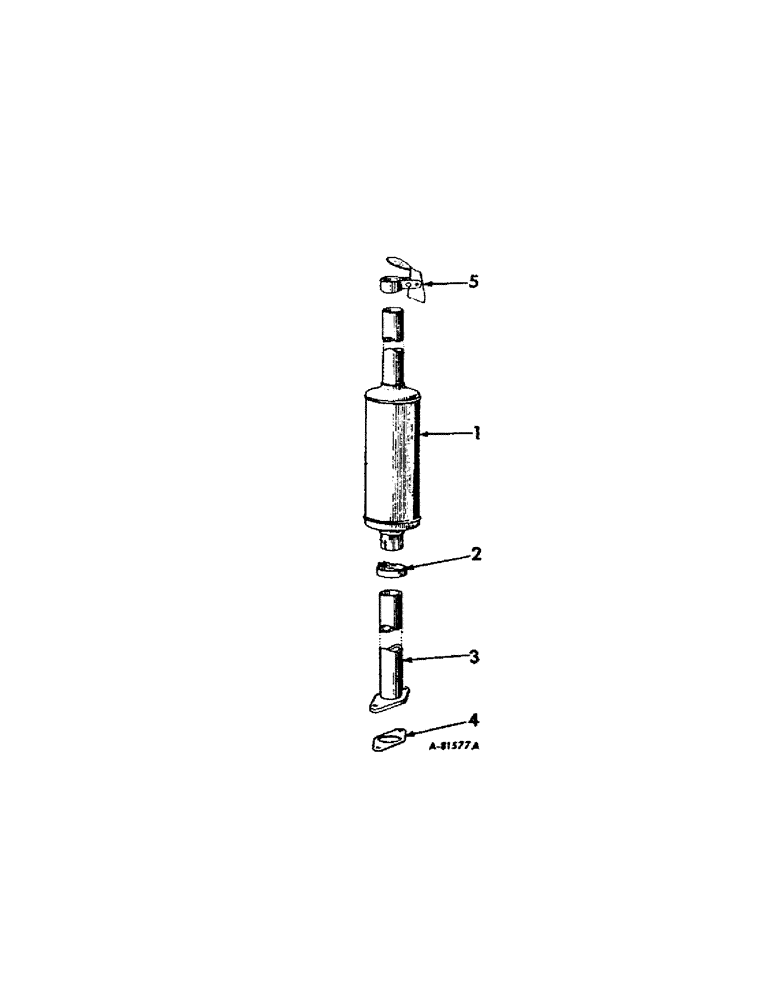

Запчасти Case IH BD-154 (B-31[A]) - EXHAUST SYSTEM, 424, 2424, 444 AND 2444 TRACTORS WITH VERTICAL EXHAUST

1

403825R1

MUFFLER

exhaust, Replaces 381665R92

1шт.

1

403825R1GV

MUFFLER

Value, Muffler

1шт.

2

400826R1

CLAMP, exhaust muffler, Replaces 48889DA

1шт.

93082H

NUT

exhaust muffler clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

388976R11

PIPE

ASSY., exhaust

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

388980R1

GASKET

exhaust pipe flange

1шт.

5

403827R1

CAP

ASSY., weather, Replaces 381799R91

1шт.
