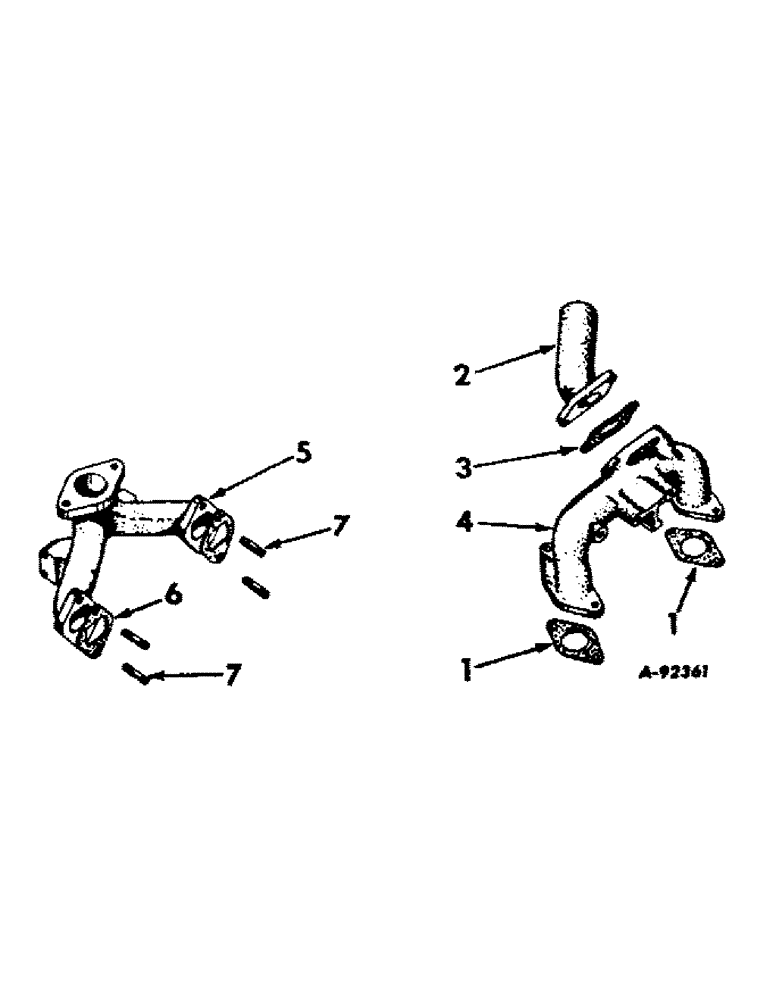

Запчасти Case IH BD-154 (B-29) - INTAKE AND EXHAUST MANIFOLDS

1

704162R1

MANIFOLD GASKET

intake manifold

2шт.

2

3069245R1

PIPE, air intake manifold, 424, 2424, 444 and 2444 tractors w/engine serial no. 82211 and below, B-414 tractors w/engine serial no. 21832 and below

1шт.

2

3063372R1

PIPE

air intake manifold, 3444 tractors and 7000 fork lift, 424, 2424, 444 and 2444 tractors w/engine serial no. 82212 and above, 3414 loader tractors w/power train serial no. 2317 and above, B-414 w/engine serial no. 21833 and above

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

3063373R1

GASKET

air intake manifold pipe

1шт.

4

3063371R1

MANIFOLD

air intake, 424, 2424, 444 and 2444, 3444 tractors and 7000 fork lift, 3414 loader tractors w/power train serial no. 2317 and above, B-414 w/engine serial no. 21833 and above

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, 3/8-16 x 3-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

3044499R1

MANIFOLD

air intake, 3414 loader tractors w/power serial no. 2316 and below, B-414 w/serial no. 21832 and below

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

20157R1

BOLT,3/8" x 3 1/8", Gr 8

SCREW, 3/8-16 x 3-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

3045354R21

MANIFOLD

ASSY., exhaust

1шт.

706164R1

STUD, exhaust manifold

2шт.

6

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

7

703874R1

STUD

manifold to cylinder head

4шт.

280136

NUT,3/8"-16, G8

Exhaust manifold stud 3/8"-16, G8

4шт.
