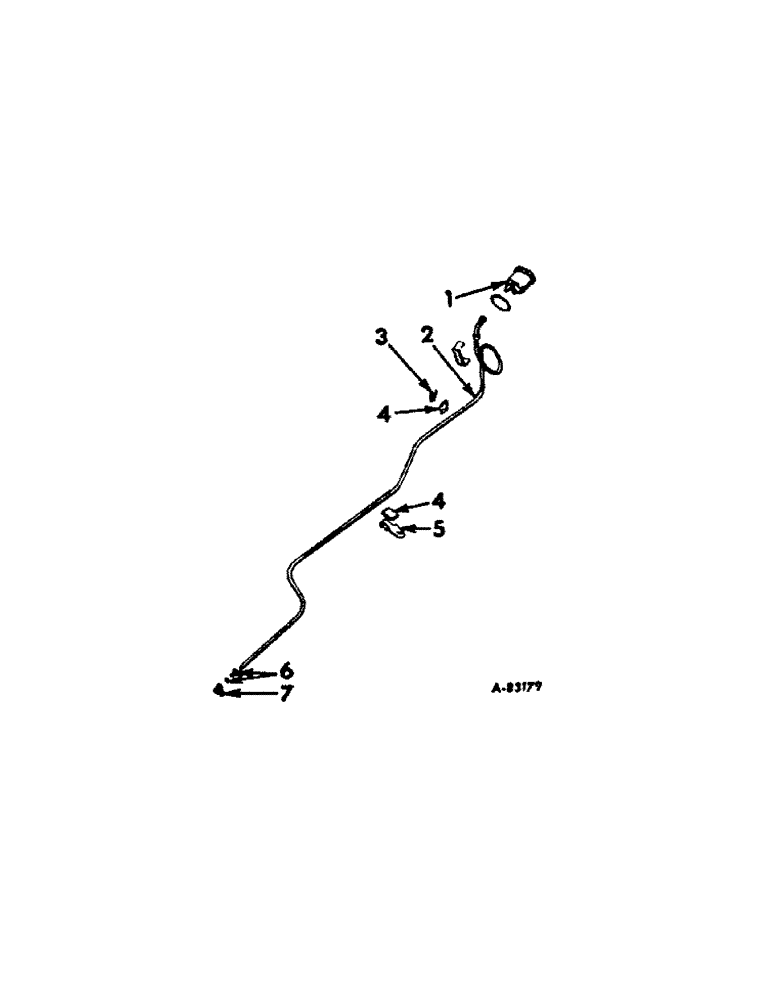

Запчасти Case IH BD-154 (B-28[A]) - OIL PRESSURE GAUGE AND CONNECTIONS, B414 TRACTORS

1

709166R91

ELECTRICAL GAUGE

GAUGE ASSY., oil pressure

1шт.

2

3040385R91

PIPE

W/NUT, 3041151R11, engine to pressure gauge oil

1шт.

3

60938D

CLIP, oil pressure pipe rear

1шт.

17408R1

BOLT, 3/8-16 x 5/8 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

403551R1

MUFFLER

WASHER, 3/8 med lock

1шт.

403551R1GV

MUFFLER

Value, Washer

1шт.

4

52728D

CUSHION, oil pipe

2шт.

5

708115R1

PLATE ASSY.

CLIP, oil pressure pipe front

1шт.

6

3041151R11

NUT

oil pipe coupling

1шт.

7

3040386R1

ELBOW

oil, Serial Range: pipe-engine

1шт.
