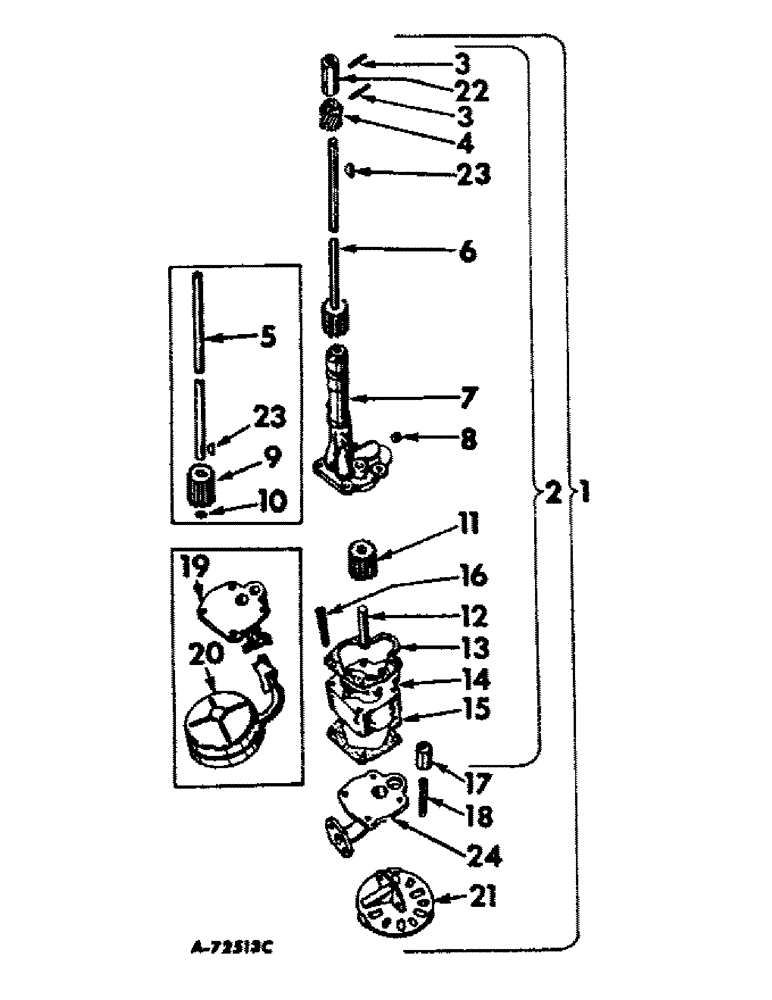

Запчасти Case IH BD-154 (B-26) - OIL PUMP, B-414 AND 3414 LOADER TRACTORS

1

3043131R93

PUMP

ASSY., oil, Serial no. 30944 and below

1шт.

1

3064060R91

PUMP

ASSY., oil, Serial no. 30945 and above

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

ASSY., oil pump

1шт.

3

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll 1/8 x 25/32

1шт.

4

704107R1

GEAR

PINION, oil pump drive

1шт.

5

3042478R1

SHAFT

oil pump drive, Serial no. 27582 and below

1шт.

6

3042572R91

SHAFT

ASSY., oil pump drive, Serial no. 27583 and above

1шт.

7

BODY ASSY., oil pump, Discontinued for service, Serial no. 27582 and below

1шт.

7

3042570R91

BODY

ASSY., oil pump, Serial no. 27583 and above, Consists of

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

CASE

1шт.

706628R1

GASKET

1шт.

932205R1

LOCK PIN,M10 x 40, Slotted

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

8

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

9

751656R1

GEAR

oil pump body, Serial no. 27582 and below

1шт.

10

27999H

RING

RETAINER, oil pump body gear, Serial no. 27582 and below

1шт.

11

751657R1

GEAR

oil pump body idler, Serial no. 27582 and below

1шт.

11

3063757R1

GEAR

oil pump body idler, Serial no. 27583 and above

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT, oil pump idler, Not serviced separately

1шт.

13

706628R1

GASKET

oil pump body

1шт.

14

NSS

NOT SOLD SEPARAT

CASE, oil pump gear, Not serviced separately

1шт.

15

711558R1

GASKET

oil pump gear

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll 13/32 x 1-19/32

2шт.

17

751830R2

VALVE

oil pressure regulating

1шт.

18

751829R1

SPRING

oil pressure regulating valve

1шт.

19

751828R1

COVER

oil pump, Serial no. 30944 and below

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

20

56108D

FILTER SCREEN

SCREEN, oil pump, Serial no. 30944 and below

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

21

3064062R91

FILTER SCREEN

SCREEN, oil pump, Serial no. 30945 and above

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive

1шт.

23

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, 1/8 x 5/8 Woodruff 5, Serial no. 30944 and below

2шт.

24

3064061R1

COVER

oil pump, Serial no. 30945 and above

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.
