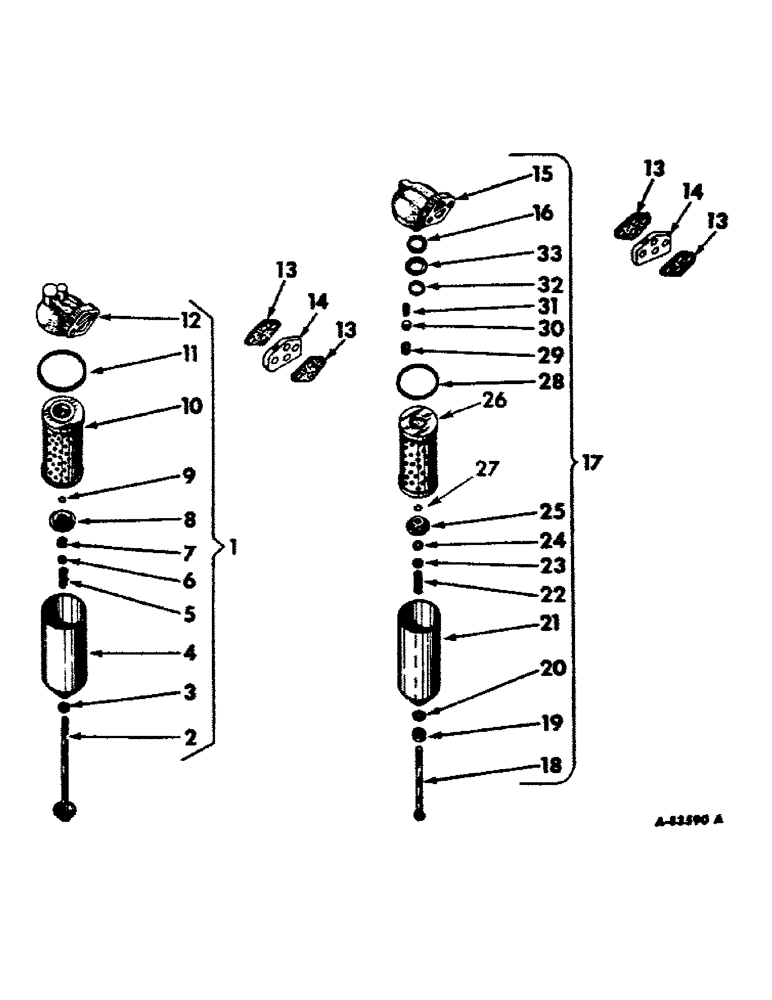

Запчасти Case IH BD-154 (B-25) - LUBRICATING OIL FILTER

1

3042420R92

FILTER

ASSY., oil, Telcalemit, Optional w/3066851R91

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

ASSY., center

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R1

PLATE

ASSY., pressure

1шт.

9

3065965R1

RING

CIRCLIP, center bolt

1шт.

10

376364R91

ELEMENT

PACKAGE, element service, Replaces 3068655R91

1шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

ASSY., filter

1шт.

13

706592R2

GASKET

lubricating oil filter base

2шт.

14

3069246R1

SPACER

oil filter mounting

1шт.

15

3069113R91

HEAD

ASSY.

1шт.

16

Not used in this application

1шт.

17

3066851R91

FILTER

ASSY., oil, Purolator, Optional w/3042420R92

1шт.

179846

LEVER

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

3069112R1

BOLT

center

1шт.

19

707862R1

DISC

COLLAR, center bolt

1шт.

20

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

21

707866R1

SUMP

1шт.

22

703789R1

SPRING

1шт.

23

3069114R1

WASHER

1шт.

24

3069109R1

WASHER

SEAL, center spindle

1шт.

25

NOT USED IN THIS APPLICATION

1шт.

26

376364R91

ELEMENT

PACKAGE, element service, Optional w/3068655R91

1шт.

26

3068655R91

ELEMENT

PACKAGE, element service, Optional w/376364R91

1шт.

27

707859R1

SEALING RING

SEAL, head

1шт.

28

NOT USED IN THIS APPLICATION

1шт.

29

NOT USED IN THIS APPLICATION

1шт.

30

NOT USED IN THIS APPLICATION

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

3069108R1

GUIDE

element

1шт.
