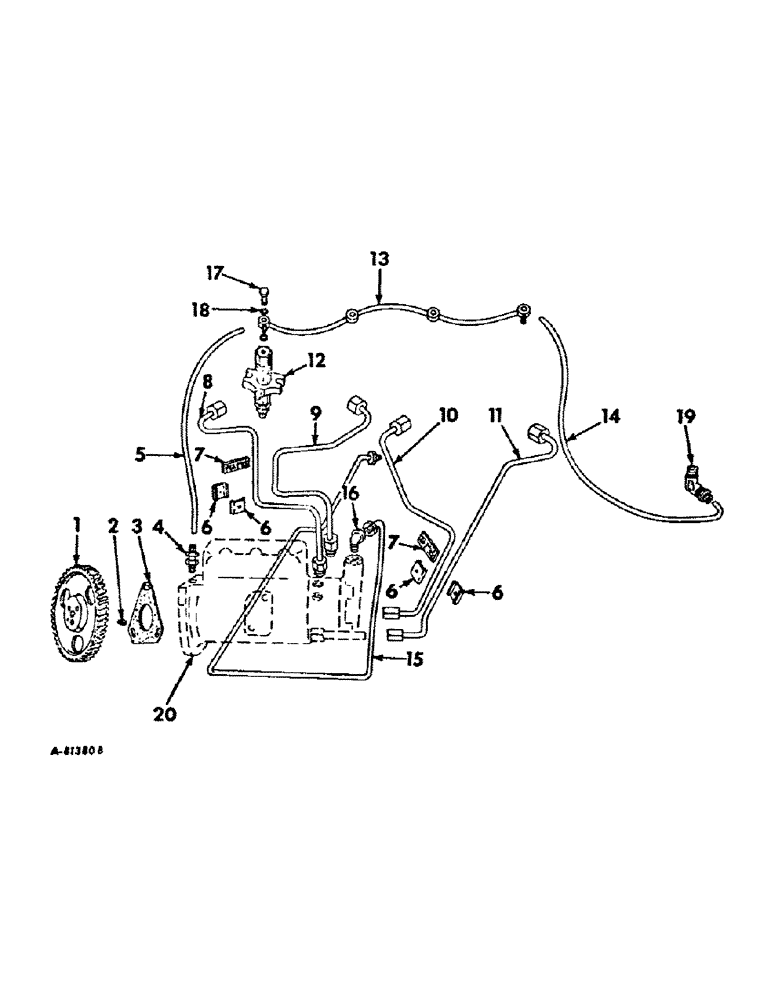

Запчасти Case IH BD-154 (B-20) - FUEL INJECTION SYSTEM, 424, 2424, 444 AND 2444 TRACTORS

1

708290R11

GEAR

W/PIN 708291R1, injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

W/WASHER, 5/16-24 x 3/4

3шт.

2

708291R1

DOWEL

PIN, dowel

1шт.

3

708289R1

BOLT

GASKET, injection pump

1шт.

4

388727R1

CONNECTOR, ELEC

CONNECTOR, front tubing injection return

1шт.

5

388730R1

HOSE,9.00"

Injection Return, Front 9.00"

1шт.

6

841432R1

CLAMP

CLIP, injection pump

4шт.

703700R1

NUT, no. 12 type P self-locking

2шт.

100780

VALVE

SCREW, no. 12 x 7/8 mach

2шт.

7

841433R1

INSULATOR BLOCK

PAD, injection pipe clip

2шт.

8

708307R21

PIPE

ASSY., injection, no. 1

1шт.

9

708308R31

PIPE

ASSY., injection, no. 2

1шт.

10

708309R21

PIPE

ASSY., injection, no. 3

1шт.

11

708310R21

PIPE

ASSY., injection, no. 4

1шт.

NOZZLE, fuel injection, For components see list of parts under details of injection nozzle

1шт.

13

3069233R91

PIPE

fuel spill

1шт.

14

388725R1

PIPE

TUBING, injection return rear

1шт.

15

19985R1

TUBE NUT,1/2"-20

PIPE, filter to injection pump ends, (replaces 388729R1)

1шт.

16

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

1/2-20 hi-duty tube fitting male pipe

1шт.

17

705498R1

STUD,M8 x 14mm

banjo

4шт.

18

703519R1

WASHER

4шт.

19

389673R91

ELBOW

poly-flow male, 1/4 OD tube, 1/8 PT

1шт.

20

PUMP ASSY., fuel injection, Refer to fuel injection pump listing, Fuel system

1шт.

707321R91

ELECTRICAL WIRE

SEAL, governor

2шт.
