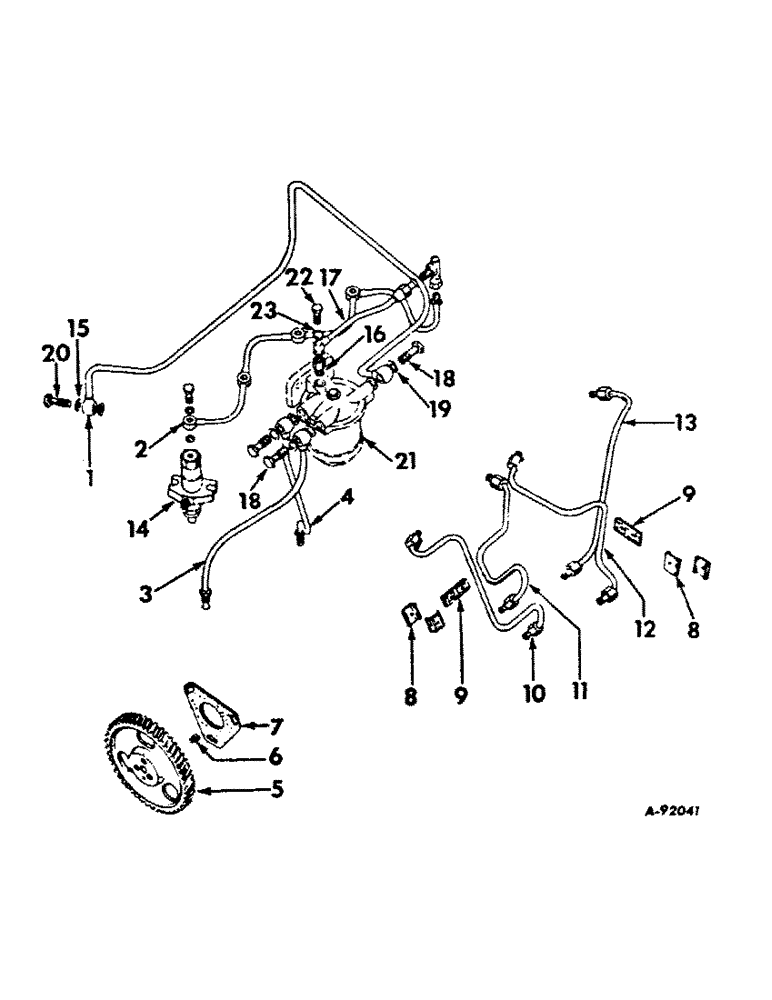

Запчасти Case IH BD-154 (B-19) - FUEL INJECTION SYSTEM, B-414, 3414, 3444 TRACTORS AND 7000 FORK LIFT

1

3043649R94

PIPE

ASSY., fuel feed, Serial Range: pump-filter

1шт.

2

3043653R91

HOSE

PIPE, fuel spill

1шт.

3

3043651R92

PIPE

ASSY., injection pump to filter excess

1шт.

4

3043650R94

PIPE

ASSY., fuel filter to injection pump

1шт.

5

708290R11

GEAR

W/PIN 708291R1, Injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

W/WASHER, 5/16-24 x 3/4

3шт.

6

708291R1

DOWEL

PIN, dowel

1шт.

7

708289R1

BOLT

GASKET, injection pump

1шт.

8

841432R1

CLAMP

CLIP, injection pump

4шт.

703700R1

NUT, no. 12 type P self-locking

2шт.

100780

VALVE

SCREW, no. 12 x 7/8 mach

2шт.

9

841433R1

INSULATOR BLOCK

PAD, injection pipe clip

2шт.

10

708307R21

PIPE

ASSY., injection, no. 1

1шт.

11

708308R31

PIPE

ASSY., injection, no. 2

1шт.

12

708309R21

PIPE

ASSY., injection, no. 3

1шт.

13

708310R21

PIPE

ASSY., injection no. 4

1шт.

14

NOZZLE, fuel injection, For components see list of parts under details injection nozzle

1шт.

15

708297R1

GASKET

WASHER, fuel feed pump banjo bolt

4шт.

16

3043646R91

FITTING

VALVE ASSY., check ball

1шт.

3043647R1

CAPSCREW

SCREW, connection

1шт.

3049111R1

SEALING WASHER

valve

1шт.

701735R1

WASHER

SCREW, connection

2шт.

17

393162R91

HOSE

ASSY., fuel filter

1шт.

18

708296R1

CONNECTOR, ELEC

BOLT, banjo, Fuel filter

3шт.

19

708297R1

GASKET

WASHER, fuel filter banjo bolt

6шт.

20

708296R1

CONNECTOR, ELEC

BOLT, banjo, Fuel feed pump

2шт.

21

FUEL FILTER, Refer to fuel filter listing, This section

1шт.

22

705498R1

STUD,M8 x 14mm

banjo

4шт.

23

703519R1

WASHER

4шт.

3043655R1

CLIP

fuel pipe

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

707321R91

ELECTRICAL WIRE

SEAL, governor

2шт.
