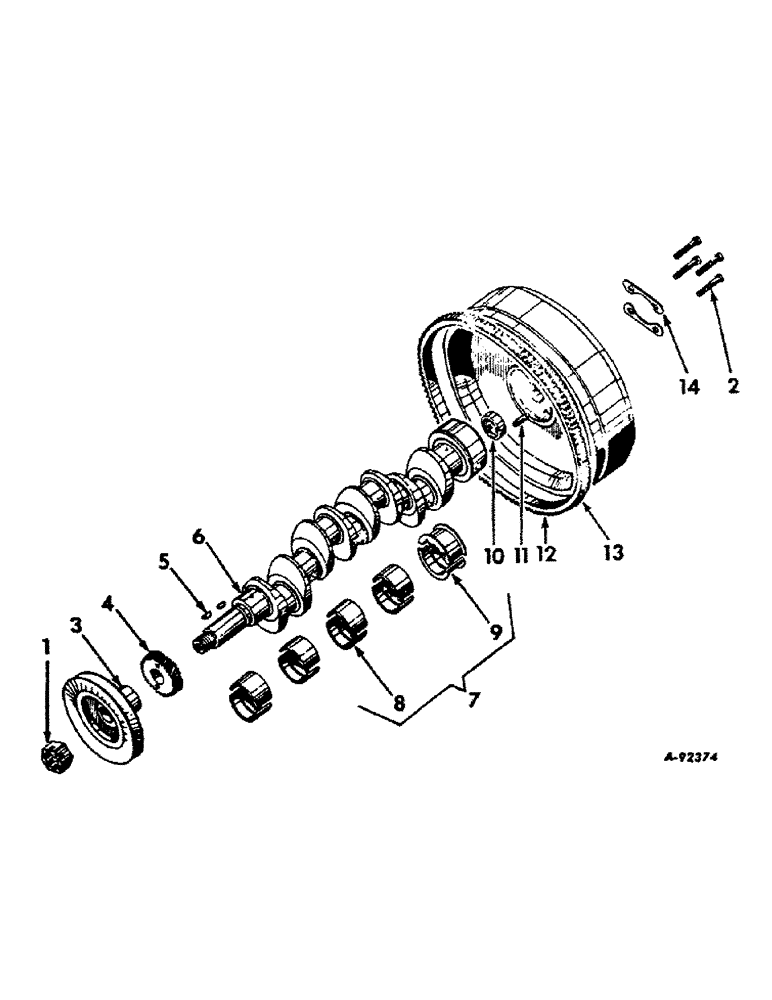

Запчасти Case IH BD-154 (B-14) - CRANKSHAFT FLYWHEEL AND RELATED PARTS

1

NLS

NO LONGER SERVICED

NUT, fan drive pulley

1шт.

2

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel, Dual clutch

4шт.

2

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel, Single clutch, B-414 tractors

4шт.

3

3048133R2

PULLEY

fan drive

1шт.

4

3064088R1

GEAR

PINION, crankshaft, 33 teeth, 424, 2424, 444, 2444 and 3444 tractors and 7000 fork lift, 3414 loader tractors w/engine serial no. 22279 and above

1шт.

4

703865R1

GEAR

crankshaft pinion, B-414 tractors, 3414 loader tractors w/ engine serial no. 22278 and below

1шт.

5

218211

DRIVING SPROCKET

1/4 x 3/4 Woodruff 91

2шт.

6

384599R91

PACKAGE

CRANKSHAFT ASSY., Std., Consists of

1шт.

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING

1шт.

3064523R11

CRANKSHAFT BEARING

BEARING ASSY

4шт.

708910R91

BEARING ASSY

1шт.

710768R91

BEARING SET

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

24550D

PIN

2шт.

6

384600R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, Consists of four connecting rod bearings, five crankshaft bearings and crankshaft

1шт.

7

708912R91

CRANKSHAFT BEARING

SET, crankshaft main bearing, Std.

1шт.

7

708913R91

CRANKSHAFT BEARING

SET, crankshaft main bearing, .030 O/S

1шт.

7

708914R91

CRANKSHAFT BEARING

SET, crankshaft main bearing, .015 O/S

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING ASSY., crankshaft front and center, 2 halves, Std.

4шт.

8

3064524R11

BEARING LINER

BEARING ASSY., crankshaft front and center, 2 halves, .030 U/S

4шт.

8

3064525R11

BEARING LINER

BEARING ASSY., crankshaft front and center, 2 halves, .015 U/S

4шт.

9

708910R91

BEARING ASSY

., crankshaft rear, 2 halves, Std.

1шт.

9

708911R91

BEARING ASSY

., crankshaft rear, 2 halves, .030 U/S

1шт.

9

708915R91

BEARING ASSY

., crankshaft rear, 2 halves, .015 U/S

1шт.

10

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

11

24550D

PIN

flywheel dowel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3044003R11

FLYWHEEL

W/GEAR, 704436R1, For 444, 2444, 3414 and 3444 tractors having dual clutch, 424 and 2424 tractors w/single clutch and serial no. 10240 and below and 2424 tractors w/serial no. 2519 and below

1шт.

13

3046388R11

FLYWHEEL

W/GEAR, 704436R1 and two pins, 141224, For 444, 2444, 3414 and 3444 tractors having single clutch, 424 tractors w/single clutch and serial no. 10241 and above and 2424 tractors w/serial no. 2520 and above

1шт.

13

3069116R11

FLYWHEEL W/RING GEAR, 7000 fork lift, 3414 and 3444 tractors w/torque converter

1шт.

13

3043823R11

FLYWHEEL

W/RING GEAR, B-414 tractors

1шт.

141223

DOWEL,5/16" x 1"

PIN, dowel 5/16 x 1 dowel

2шт.

14

3069118R1

LOCK ASSY

LOCK, flywheel bolt

2шт.
