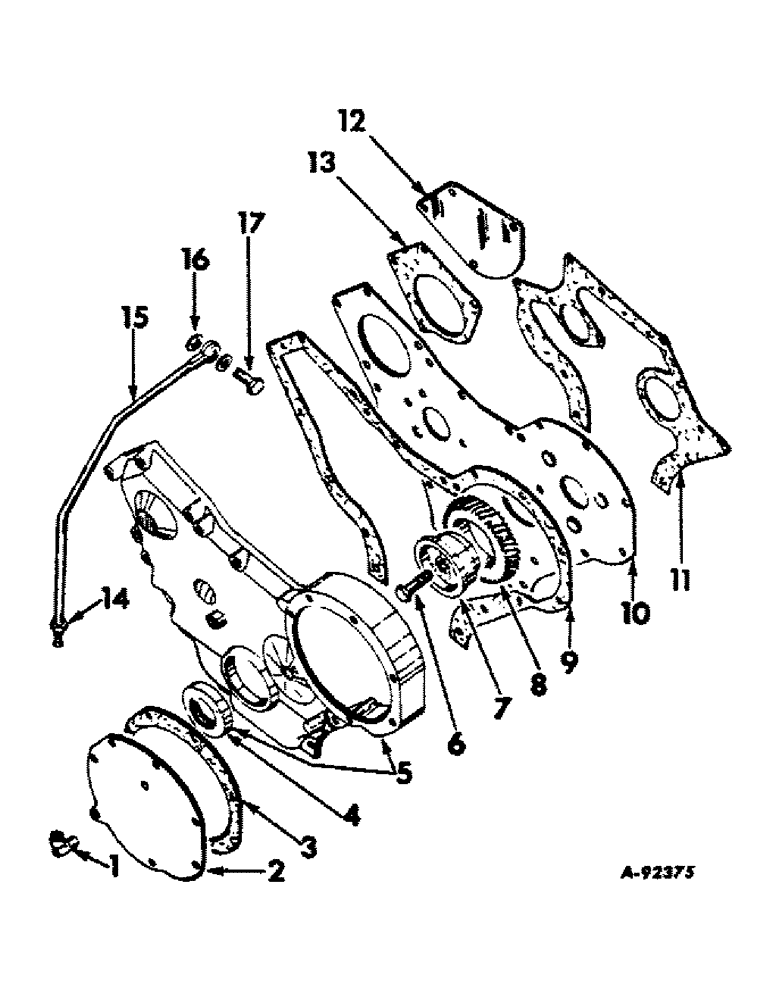

Запчасти Case IH BD-154 (B-12) - CRANKCASE FRONT COVERS
№
Артикул
Название
Примечание
Количество
1
3063558R1
CONNECTOR, ELEC
ELBOW, breather pipe, Injection pump gear cover end
1шт.
2
3040337R1
COVER, injection pump gear, 424, 2424, 444 and 2444 tractors
1шт.
2
709904R2
COVER
injection pump gear, B-414, 2414, 3444 tractors and 7000 fork lift
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
6шт.
3
703849R1
GASKET
injection pump gear cover
1шт.
4
703844R91
OIL RESERVOIR
SEAL, crankshaft front oil
1шт.
5
3042069R21
COVER
W/OIL SEAL, 703844R91, Crankcase front
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
5шт.
179825
BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5
3шт.
6
181434
BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5
SCREW, 1/2-20 x 1-7/8 hex-hd cap
1шт.
7
703853R11
SHAFT
W/PIN, 932039R1, Idler gear
1шт.
181434
BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5
1/2-20 x 1-7/8 hex-hd cap
1шт.
8
703852R1
GEAR
idler
1шт.
9
708285R1
GASKET
crankcase front cover
1шт.
10
709901R11
PLATE
ASSY., crankcase front
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
3047230R1
SCREW
crankcase front plate
2шт.
703636R1
WASHER
crankcase front plate screw
1шт.
11
709903R1
GASKET
crankcase front plate
1шт.
12
703850R1
COVER
hydraulic pump opening, Tractors w/o hyd power supply
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
272391
BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5
SCREW, 5/16-18 x 2-1/8 hex-hd cap
1шт.
179825
BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5
3шт.
Q397
WASHER
3/4 x 11/32 x 16 ga flat
1шт.
13
703851R1
GASKET
hydraulic pump, Tractors w/o hyd power supply
1шт.
14
222-504
TUBE NUT,9/16"-20
NUT, crankcase breather pipe connector
1шт.
15
3043654R92
HOSE
PIPE ASSY., crankcase breather
1шт.
16
708297R1
GASKET
WASHER, breather pipe banjo bolt
2шт.
17
708296R1
CONNECTOR, ELEC
BOLT, banjo, Breather pipe
1шт.
Выбрано товаров: 34
