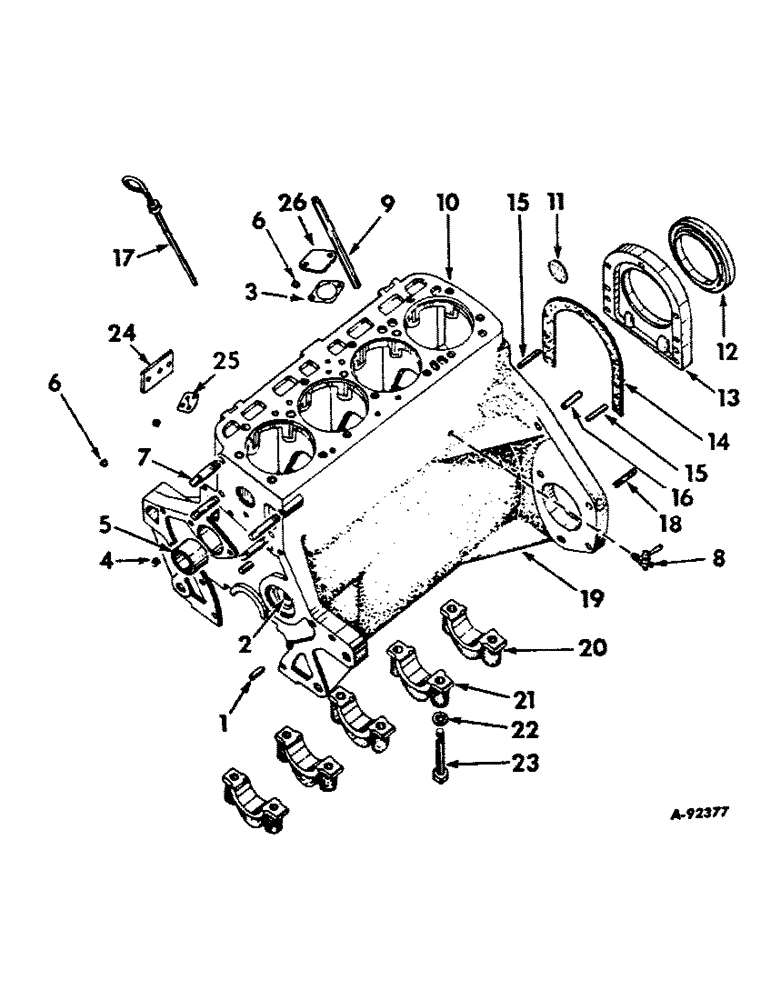

Запчасти Case IH BD-154 (B-10) - CRANKCASE AND RELATED PARTS

1

NLS

NO LONGER SERVICED

3/8 x 1 dowel, crankshaft front

2шт.

2

751610R1

INSERT

lock idler gear bolt screw

1шт.

3

3042467R1

GASKET

tachometer drive opening cover, 3444 tractors and 7000 fork lift, B-414 tractors

1шт.

4

444691

PLUG

1/4 slotted headless pipe

2шт.

5

703827R1

CAMSHAFT BEARING

BUSHING, camshaft front

1шт.

5

703828R1

CAMSHAFT BEARING

BUSHING, camshaft center

1шт.

5

703829R1

CAMSHAFT BEARING

BUSHING, camshaft rear

1шт.

6

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

7

703832R1

STUD

water pump

4шт.

8

106794

VALVE

COCK, 1/4 water drain

1шт.

9

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

10

751834R1

INSERT

7/16 heli-coil thread

16шт.

11

172578

PLUG,Exp, 1 3/4"

1-3/4 dia expansion, type 1

1шт.

12

3072092R91

OIL SEAL

crankshaft rear oil, Will work for 708903R91 on 424 and 2424 tractors

1шт.

13

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

14

708907R2

OIL SEAL

crankshaft rear oil seal retainer

1шт.

15

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel, crankshaft rear oil seal retainer

2шт.

16

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1-1/2 dowel

2шт.

17

706977R91

DIPSTICK

GAUGE, oil level, All machines except 2050 loaders

1шт.

17

490654R1

GAUGE, oil level, 2050 loaders

1шт.

18

703877R1

STUD

cranking motor

1шт.

19

3040912R41

CRANKCASE

ASSY., B-414, 424, 2424, 444 and 2444 tractors, Consists of

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

706941R2

CAP

4шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP

1шт.

106794

VALVE

DRAIN

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

16шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

141244

PIN

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703832R1

STUD

4шт.

703877R1

STUD

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

19

3069133R91

CRANKCASE

ASSY., 3414, 3444 tractors and 7000 fork lift, Consists of

1шт.

3047288R31

CRANKCASE

(NSS)

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

706491R2

CAP

4шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

16шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

NLS

NO LONGER SERVICED

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703832R1

STUD

4шт.

703877R1

STUD

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

20

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP, crankshaft bearing, rear, partially finished, See service manual

1шт.

21

706491R2

CAP

crankshaft bearing, partially finished, See service manual

4шт.

22

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

23

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bering cap

10шт.

24

3069249R1

COVER, fuel filter mounting and feed pump, 424, 2424, 444 and 2444 tractors

1шт.

25

3043370R1

GASKET

fuel feed pump, 424, 2424, 444 and 2444 tractors

1шт.

3063872R1

BOLT

SCREW, cover

2шт.

26

3042468R1

COVER

drive opening, 3444 tractors, B-414 tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
