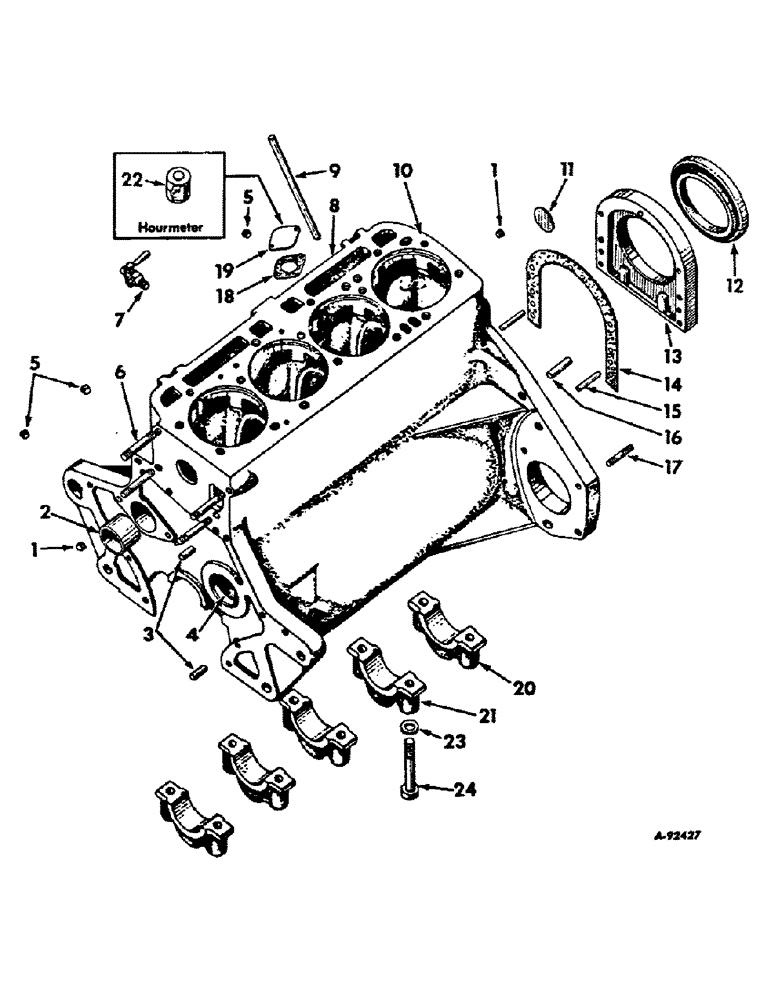

Запчасти Case IH BD-144 (A-06) - CRANKCASE AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
143992
PLUG,Slotted, 1/4" NPT
1/4 sl-headless pipe
2шт.
2
703827R1
CAMSHAFT BEARING
BUSHING, front camshaft
1шт.
2
703828R1
CAMSHAFT BEARING
BUSHING, center camshaft
1шт.
2
703829R1
CAMSHAFT BEARING
BUSHING, rear camshaft
1шт.
3
37-1616
DOWEL,3/8" x 1"
PIN, dowel, camshaft front
2шт.
4
75160R1
INSERT LOCK, 1/2 - 20 x 1/2 idler gear bolt screw
1шт.
5
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
3шт.
6
703832R1
STUD
water pump
4шт.
7
106794
VALVE
TAP, water drain
1шт.
8
3040912R41
CRANKCASE
ASSY., Engine serial no. 17289 and above, Consists of
1шт.
3601211R1
BOLT
10шт.
NSS
NOT SOLD SEPARAT
CRANKCASE
1шт.
703827R1
CAMSHAFT BEARING
BUSHING
1шт.
703828R1
CAMSHAFT BEARING
BUSHING
1шт.
703829R1
CAMSHAFT BEARING
BUSHING
1шт.
706491R2
CAP
4шт.
708902R2
BEARING CAP,2.273" ID x 1.1013"
CAP
1шт.
751834R1
INSERT
16шт.
751610R1
INSERT
1шт.
141223
DOWEL,5/16" x 1"
PIN
2шт.
37-1616
DOWEL,3/8" x 1"
PIN
2шт.
141287
DOWEL,1/2" x 1 1/2"
PIN
2шт.
103884
PLUG,Slotted, 1/4" NPT
2шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
3шт.
703832R1
STUD
4шт.
703877R1
STUD
1шт.
106794
VALVE
TAP
1шт.
751826R1
TUBE,0.375" OD, 5.75" Length
1шт.
3061325R1
WASHER
10шт.
703836R1
WIRE
5шт.
8
751609R31
CRANKCASE
ASSY., Order pkg 3042475R95, Engine serial no. 17288 and below, Consist of
1шт.
3061211R1
BOLT,1/2" - 13 x 2.875"
10шт.
703827R1
CAMSHAFT BEARING
BUSHING
1шт.
703828R1
CAMSHAFT BEARING
BUSHING
1шт.
703829R1
CAMSHAFT BEARING
BUSHING
1шт.
706491R2
CAP
4шт.
708902R2
BEARING CAP,2.273" ID x 1.1013"
CAP
1шт.
751834R1
INSERT
16шт.
751610R1
INSERT
1шт.
141223
DOWEL,5/16" x 1"
PIN
2шт.
37-1616
DOWEL,3/8" x 1"
PIN
2шт.
141287
DOWEL,1/2" x 1 1/2"
PIN
2шт.
172578
PLUG,Exp, 1 3/4"
1шт.
103884
PLUG,Slotted, 1/4" NPT
2шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
3шт.
703832R1
STUD
4шт.
703877R1
STUD
1шт.
106794
VALVE
TAP
1шт.
751826R1
TUBE,0.375" OD, 5.75" Length
1шт.
3061325R1
WASHER
10шт.
703836R1
WIRE
5шт.
9
751826R1
TUBE,0.375" OD, 5.75" Length
dipstick, Engine serial no. 8783 and above
1шт.
10
751834R1
INSERT
7/16-14 heli-coil thread
16шт.
11
172578
PLUG,Exp, 1 3/4"
1-3/4 expansion
1шт.
12
708903R91
HOLDER
OIL SEAL, rear crankshaft
1шт.
13
708904R1
RETAINER
rear oil seal crankshaft
1шт.
706732R1
BOLT,Hex, 5/16" - 18 x 1 1/8"
crankshaft rear oil seal ret
7шт.
14
708907R2
OIL SEAL
crankshaft rear oil set ret
1шт.
15
141223
DOWEL,5/16" x 1"
PIN, crankshaft rear oil seal ret dowel
2шт.
16
141287
DOWEL,1/2" x 1 1/2"
PIN, crankcase rear dowel
2шт.
17
703877R1
STUD
starter motor
1шт.
18
3042467R1
GASKET
hourmeter drive opening, Engine serial no. 17289 and above
1шт.
19
3042468R1
COVER
hourmeter drive opening, Engine serial no. 17289 and above
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
20
708902R2
BEARING CAP,2.273" ID x 1.1013"
CAP, rear crankshaft bearing, partially finished, See service manual
1шт.
21
706491R2
CAP
front crankshaft bearing, partially finished, See service manual
4шт.
22
3042472R92
METER
HOURMETER, Engine serial no. 17289 and above
1шт.
23
3061325R1
WASHER
crankshaft bearing cap bolt
10шт.
24
3061211R1
BOLT,1/2" - 13 x 2.875"
crankshaft bearing cap
10шт.
3043077R1
COVER
feed pump opening, used only with service package
1шт.
27586R1
12 PT SCREW,Flg, 5/16"-18 x 3/4"
5/16 x 3/4 soc-hd cap
2шт.
708295R1
GASKET
fuel feed pump, used only with service package
1шт.
46250D
LOCK, crankcase front plate cap screw
3шт.
110638
RIVET
3/16 x 5/16 rd-hd
3шт.
706975R1
PIN, roll, dipstick, Engine serial no. 8782 and below
1шт.
712064R1
POINTER, timing, Engine serial no. 17288 and below
1шт.
Выбрано товаров: 79
