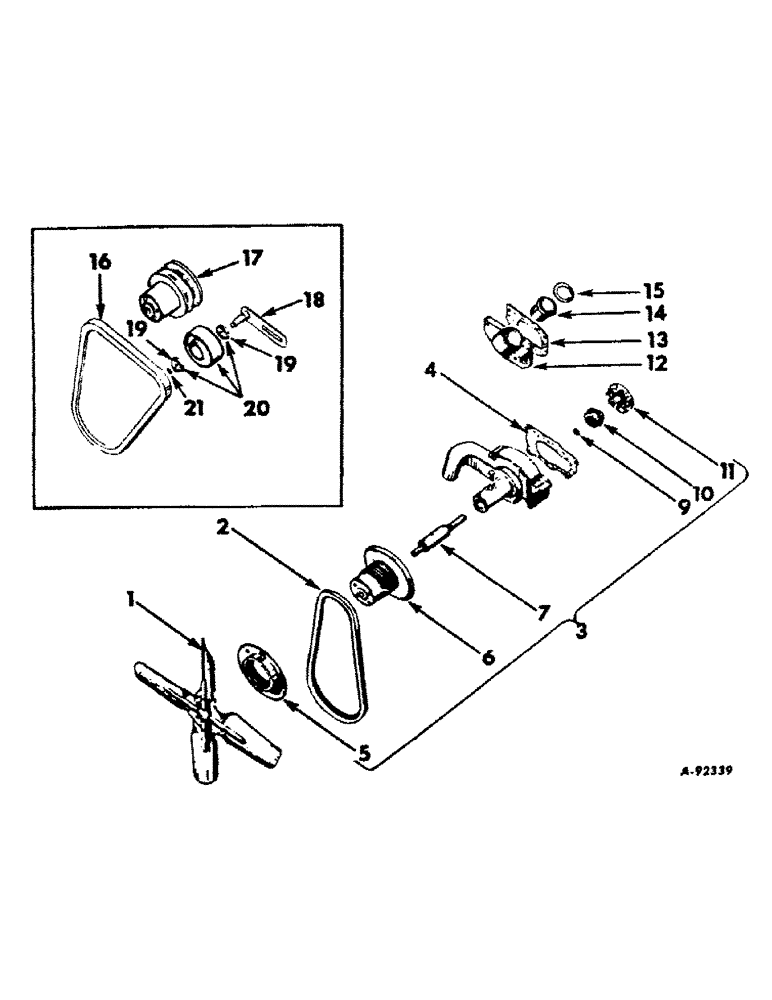

Запчасти Case IH BD-144 (A-04) - FAN, THERMOSTAT AND WATER PUMP

1

706749R91

FAN

BLADE ASSY, fan

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

376371R1

V-BELT,0.64" W

Fan, Optional w/709502R1 0.64" W

1шт.

2

709502R1

BELT

BELT, Fan, Optional, with 376371R1

1шт.

3

703820R92

WATER PUMP

PUMP ASSY, water, Consists of

1шт.

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

704216R2

BODY

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

1шт.

703825R11

FLANGE

1шт.

704219R2

WASHER

FLINGER

1шт.

704222R1

HUB

1шт.

709909R1

IMPELLER

IMPELLOR

1шт.

703822R91

SEAL

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

water pump

1шт.

5

703825R11

FLANGE

water pump pulley w/screw 102831 and nut 114502

1шт.

102831

SCREW

5/16 x 7/8 dog pt. headless

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

spindle water pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

retaining water pump bearing

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

704219R2

WASHER

FLINGER, water pump spindle leak water

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R1

IMPELLER

water pump

1шт.

12

703814R1

HOUSING

thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

703815R1

GASKET

thermostat housing

1шт.

14

369322R91

THERMOSTAT

180 deg opening, Optional w/3042303R91

1шт.

14

3042303R91

THERMOSTAT

170 to 199 deg opening, Optional w/369322R91

1шт.

15

3040778R2

RING, SNAP

RING, thermostat retainer

1шт.

16

376372R1

BELT

fan, Optional w/3040315R1, Tractors equipped with increased capacity cooling

1шт.

16

3040315R1

BELT

fan, Optional w/376372R1

1шт.

17

3040316R1

HUB

water pump pulley, Tractors equipped with increased capacity cooling

1шт.

18

3040313R21

BRACKET

fan belt adj pulley, Tractors equipped with increased capacity cooling

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .065 plain

1шт.

19

3040303R91

BALL BEARING

BEARING, fan belt adj pulley, Tractors equipped with increased capacity cooling

2шт.

19

3040307R91

CRANKSHAFT BEARING

BEARING, fan belt adj pulley

2шт.

19

3040808R91

CRANKSHAFT BEARING

BEARING, fan belt adj pulley

2шт.

20

3040302R11

PULLEY

fan belt adj, Tractors equipped with increased capacity cooling

1шт.

21

3040306R1

SNAP RING

CIRCLIP, fan belt adj pulley ret, Tractors equipped with increased capacity cooling

1шт.
