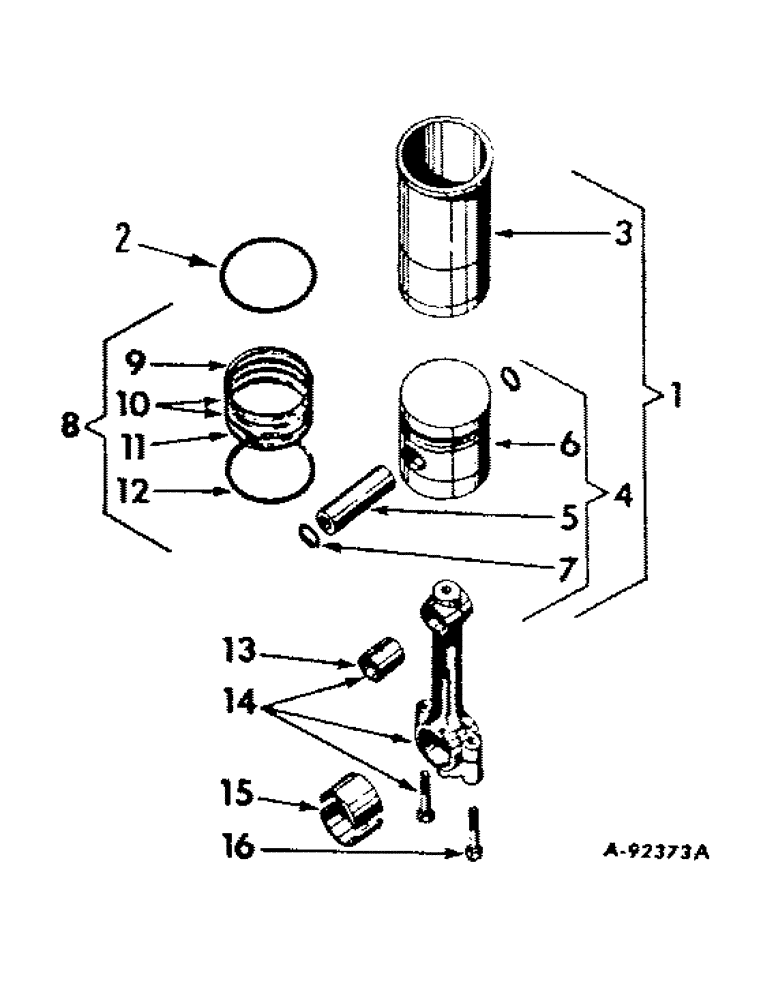

Запчасти Case IH BD-144 (A-03) - CONNECTING RODS, PISTONS AND SLEEVES

1

751604R92

PISTON & RINGS KIT

SLEEVE, cylinder and pistons, Set of 4

1шт.

2

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

3

704092R1

LINER, ENGINE CYLIND

SLEEVE, cylinder, Not service separately, Order 751604R92

4шт.

4

NSS

NOT SOLD SEPARAT

PISTON, Not service separately, Order 751605R92

4шт.

4

751605R92

PISTON

ASSY, pin and rings, Consists of

4шт.

704094R1

LARGE PIN

PIN

1шт.

704099R2

PISTON ASSY

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

704096R1

RING

1шт.

704097R1

RING

2шт.

751606R91

PISTON RING

RING

1шт.

704098R1

RING

1шт.

4

751604R92

PISTON & RINGS KIT

PISTON, w/sleeve and rings, Consists of

4шт.

751605R92

PISTON

1шт.

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING

1шт.

704092R1

LINER, ENGINE CYLIND

SLEEVE

1шт.

5

704094R1

LARGE PIN

PIN, piston, Std

4шт.

5

706411R1

PIN

piston, .005 O/S

4шт.

6

PISTON, Order 751604R92

4шт.

7

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

8

3114775R91

PISTON & RINGS KIT

RING SET, piston

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING, compression piston, top groove and sleeves

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING, compression second and third groove

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING, oil control piston, upper fourth groove

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING, oil control piston, lower or bottom groove

1шт.

13

3043611R1

BUSHING

piston pin

4шт.

14

704089R91

CONNECTING ROD

ROD, connecting, set of four, Consists of

1шт.

704088R91

ROD, CONNECTING

ROD

4шт.

14

704088R91

ROD, CONNECTING

Consists of

4шт.

704087R1

BOLT

2шт.

711045R1

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

706156R1

WIRE

1шт.

15

710327R11

BEARING SET

BEARING, connecting rod, Std

4шт.

15

3070547R91

CRANKSHAFT BEARING

BEARING, connecting rod, .030 U/S

4шт.

15

3070546R91

BEARING LINER

BEARING, connecting rod, Std.

4шт.

15

3070547R91

CRANKSHAFT BEARING

BEARING, connecting rod, .030 U/S

4шт.

15

3070539R91

BEARING LINER

BEARING, connecting rod, .015 U/S

4шт.

16

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.
