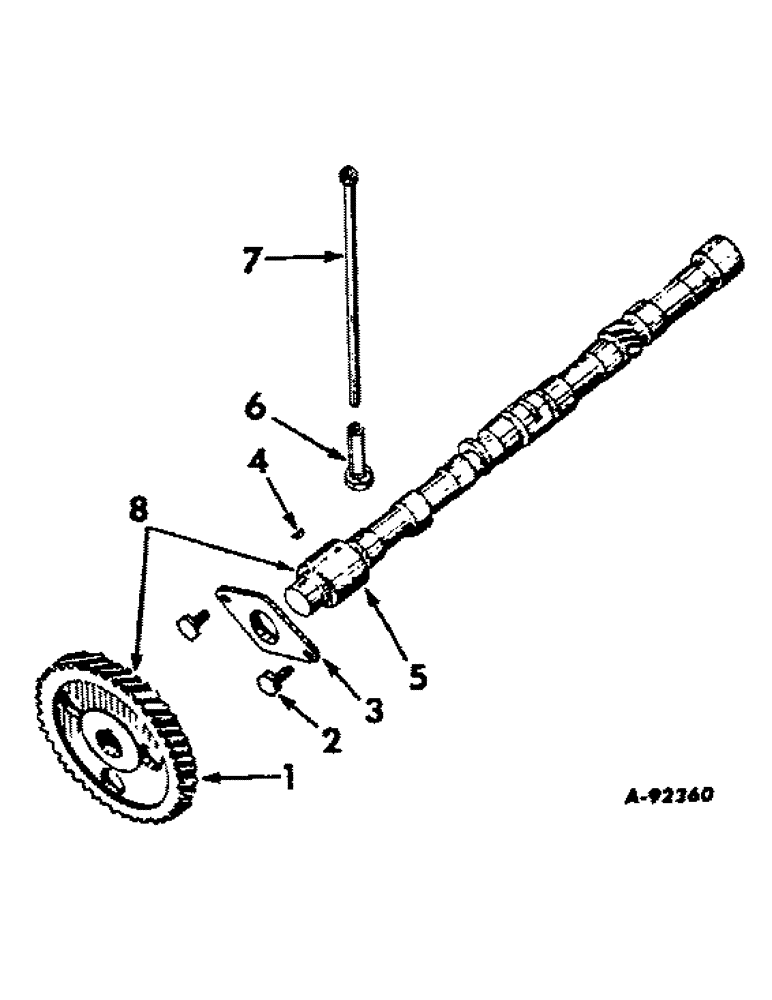

Запчасти Case IH BD-144 (A-02A) - CAMSHAFT AND RELATED PARTS

1

703812R1

GEAR

camshaft, 66 teeth

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

374704R1

PLATE ASSY.

PLATE, camshaft thrust

1шт.

4

431787

WOODRUFF KEY,#61, 3/16" x 5/8", HT

KEY, camshaft gear

1шт.

5

709450R1

CAMSHAFT

1шт.

6

704782R1

TAPPET

valve

8шт.

7

3127452R1

ROD

push valve

8шт.

8

NOT USED IN THIS APPLICATION

1шт.
