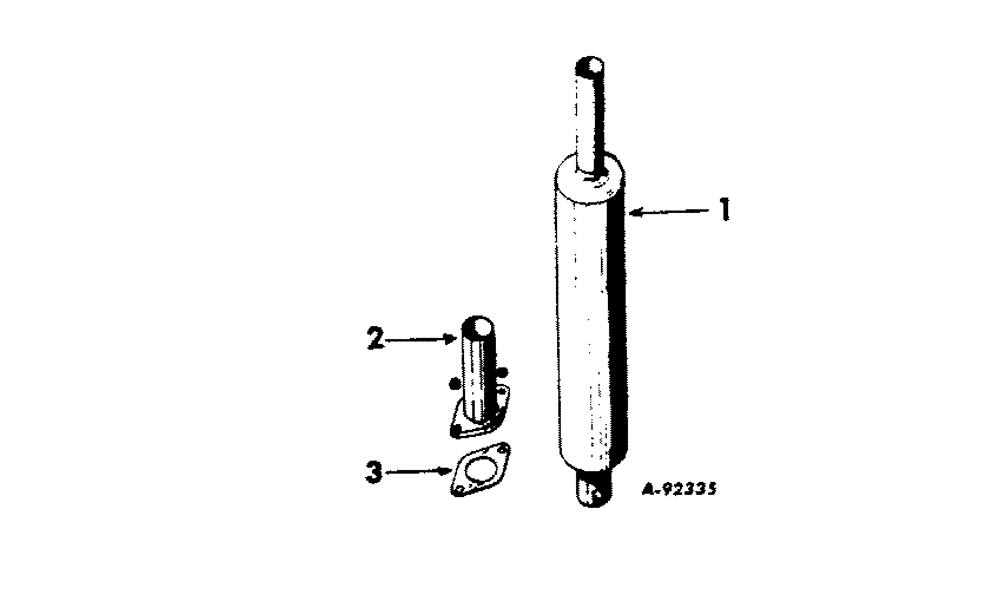

Запчасти Case IH BD-144 (A-27[A]) - UPSWEPT EXHAUST PIPE

1

704616R93

MUFFLER

SILENCER, exhaust

1шт.

1

707713R92

MUFFLER

SILENCER, exhaust

1шт.

1

751779R91

MUFFLER

SILENCER, exhaust

1шт.

2

704614R31

PIPE

exhaust, Serial Range: manifold-silencer

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

704613R1

GASKET

exhaust pipe flange

1шт.

709106R91

NO LONGER SERVICED

UPSWEPT EXHAUST, attachment, Consists of

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

704614R21

EXHAUST SYSTEM PIPE

PIPE

1шт.

704616R93

MUFFLER

SILENCER

1шт.
