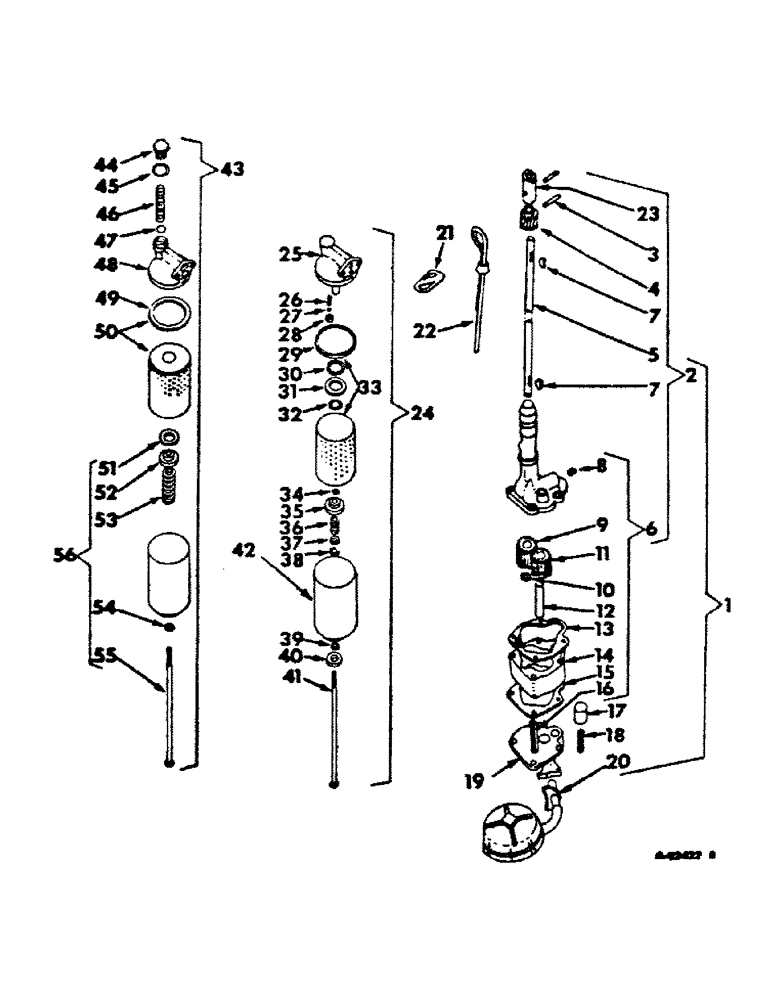

Запчасти Case IH BD-144 (A-25) - OIL PUMP AND FILTER

1

3043131R93

PUMP

ASSY., oil, Engine serial no. 17289 and above, Consists of

1шт.

751830R2

VALVE

1шт.

3043132R93

BODY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

751828R1

COVER

1шт.

711558R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

56108D

FILTER SCREEN

SCREEN

1шт.

751829R1

SPRING

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

1

704105R96

ENGINE OIL PUMP

PUMP ASSY., oil, Engine serial no. 17288 and below, Consists of

1шт.

751830R2

VALVE

1шт.

BODY (NSS)

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

751828R1

COVER

1шт.

711558R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

56108D

FILTER SCREEN

SCREEN

1шт.

751829R1

SPRING

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 hex-hd, Engine serial no. 7328 and above

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap, Engine serial no. 7327 and below

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

oil pump assy., Engine serial no. 17289 and above

1шт.

751831R92

BODY

1шт.

3042479R1

COUPLING, BREAK AWAY

COUPLING

1шт.

751656R1

GEAR

1шт.

751657R1

GEAR

1шт.

NLS

NO LONGER SERVICED

2шт.

704107R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

2шт.

27999H

RING

RETAINER

1шт.

3042478R1

SHAFT

1шт.

2

BODY, oil pump assy., Order oil pump assy., 704105R96, Engine serial no. 17288 and below, Consists of

1шт.

BODY (NSS)

1шт.

751656R1

GEAR

1шт.

751657R1

GEAR

1шт.

103905

KEY

2шт.

704107R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

1шт.

27999H

RING

RETAINER

1шт.

712095R1

SHAFT

1шт.

3

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll 1/8 x 25/32

2шт.

4

704107R1

GEAR

PINION, oil pump drive

1шт.

5

3042478R1

SHAFT

oil pump drive, Engine serial no. 4879 and above

1шт.

5

712095R1

SHAFT

oil pump drive, Engine serial no. 4878 and below

1шт.

6

BODY, oil pump, Not serviced separately, Order oil pump assy.

1шт.

7

NLS

NO LONGER SERVICED

no. 5 Woodruff

2шт.

8

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , Oil pump body drive Slotted, Headless, 1/8" NPT

1шт.

9

751656R1

GEAR

oil pump body

1шт.

10

27999H

RING

RETAINER, oil pump body gear

1шт.

11

751657R1

GEAR

oil pump idler

1шт.

12

SHAFT, oil pump idler

1шт.

13

706628R1

GASKET

oil pump body

1шт.

14

CASE, oil pump gear

1шт.

15

711558R1

GASKET

oil pump gear

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll 13/32 x 1-19/32

2шт.

17

751830R2

VALVE

oil pressure regulating, Engine serial no. 4879 and above

1шт.

17

16016R1

BALL

oil pressure regulating valve, Engine serial no. 4878 and below

1шт.

18

751829R1

SPRING

oil pressure regulating valve, Engine serial no. 4879 and above

1шт.

18

713171R1

SHIM

SPRING, oil pressure regulating valve, Engine serial no. 4878 and below

1шт.

19

751828R1

COVER

oil pump, Engine serial no. 4879 and above

1шт.

19

708110R1

COVER, oil pump, Engine serial no. 4878 and below

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

20

56108D

FILTER SCREEN

SCREEN, oil pump

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

21

706592R2

GASKET

lubricating oil filter base

1шт.

22

706977R91

DIPSTICK

GAUGE, oil level

1шт.

23

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive, Engine serial no. 17289 and above

1шт.

24

708548R91

FILTER CARTRIDGE

FILTER ASSY., lubricating oil, purolator, Optional with 705612R91

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

707873R1

HEAD

filter

1шт.

26

707865R1

SPRING

relief valve

1шт.

27

707870R1

BALL

relief valve

1шт.

28

707864R1

SEAT

relief valve

1шт.

29

707859R1

SEALING RING

SEAL, head

1шт.

30

707861R1

GASKET

1шт.

31

707868R1

GUIDE, element

1шт.

32

707874R1

CIRCLIP

1шт.

33

376364R91

ELEMENT

PACKAGE, oil filter element service, Replaces 3042419R92

1шт.

34

707869R1

RETAINER

CIRCLIP

1шт.

35

707871R1

GUIDE, element, bottom

1шт.

36

703789R1

SPRING

1шт.

37

708967R1

WASHER

1шт.

38

703795R1

RING

SEAL, center spindle

1шт.

39

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

center bolt

1шт.

40

707862R1

DISC

COLLAR, center bolt

1шт.

41

707872R1

BOLT

center

1шт.

42

707866R1

SUMP

filter

1шт.

43

3066851R91

FILTER

ASSY., lubricating oil, AC, Optional w/708548R91

1шт.

44

705739R1

PLUG, valve

1шт.

45

705940R1

GASKET

valve plug

1шт.

46

705741R1

VALVE SPRING

SPRING, valve, element relief

1шт.

47

705743R1

BALL

valve, engine relief

1шт.

48

705738R91

HEAD

ASSY., filter, Consists of

1шт.

705743R1

BALL

1шт.

COVER (NSS)

1шт.

705744R1

GASKET

1шт.

705740R1

GASKET

1шт.

INSERT (NSS)

1шт.

705739R1

PLUG

1шт.

705735R1

SEAL

1шт.

705741R1

VALVE SPRING

SPRING

1шт.

49

705744R1

GASKET

SEAL, head

1шт.

50

376364R91

ELEMENT

PACKAGE, oil filter element service, or

1шт.

50

376364R91

ELEMENT

PAKCAGE, oil filter element service

1шт.

51

705735R1

SEAL

element

2шт.

52

705734R1

RETAINER

lower seal

1шт.

53

705737R1

RETAINER

SPRING, element retainer

1шт.

54

705733R1

WASHER

center bolt

1шт.

55

705732R1

BOLT

center

1шт.

56

705731R91

SHELL

ASSEMBLY

1шт.
