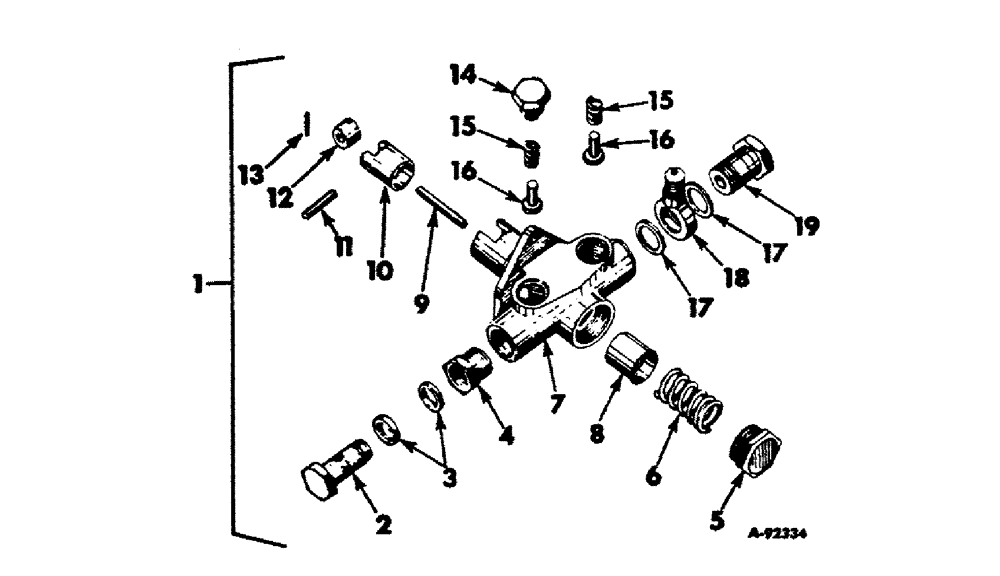

Запчасти Case IH BD-144 (A-22) - INJECTION NOZZLE ENGINE SERIAL NUMBER 17288 AND BELOW

1

705416R91

PUMP ASSY., feed

1шт.

2

708293R1

BOLT

banjo

1шт.

3

704643R1

WASHER

joint

2шт.

4

706194R1

NIPPLE, reducing

1шт.

5

701325R1

PLUG, closing

1шт.

6

701324R1

SPRING, plunger

1шт.

7

703111R91

HOUSING

ASSY., feed pump w/plunger 703112R91 and spindle 703114R1

1шт.

8

701323R1

PLUNGER

1шт.

9

701114R1

GEAR

SPINDLE, tappet

1шт.

10

701327R1

GUIDE, tappet

1шт.

11

701329R1

PIN, tappet bearing

1шт.

12

701328R1

ROLLER, tappet

1шт.

13

701333R1

PIN, retaining

1шт.

14

701332R1

GUIDE

valve

1шт.

15

701331R1

SPRING

valve

2шт.

16

701330R1

VALVE

2шт.

17

701337R1

WASHER

joint

2шт.

18

706193R1

CONNECTION, screwed

1шт.

19

701336R1

STUD, delivery connection

1шт.

3041322R1

O-RING

tappet spindle

1шт.
