(A-20) - FUEL INJECTION NOZZLE, ENGINE SERIAL NUMBER 17288 AND BELOW

Запчасти Case IH BD-144 (A-20) - FUEL INJECTION NOZZLE, ENGINE SERIAL NUMBER 17288 AND BELOW

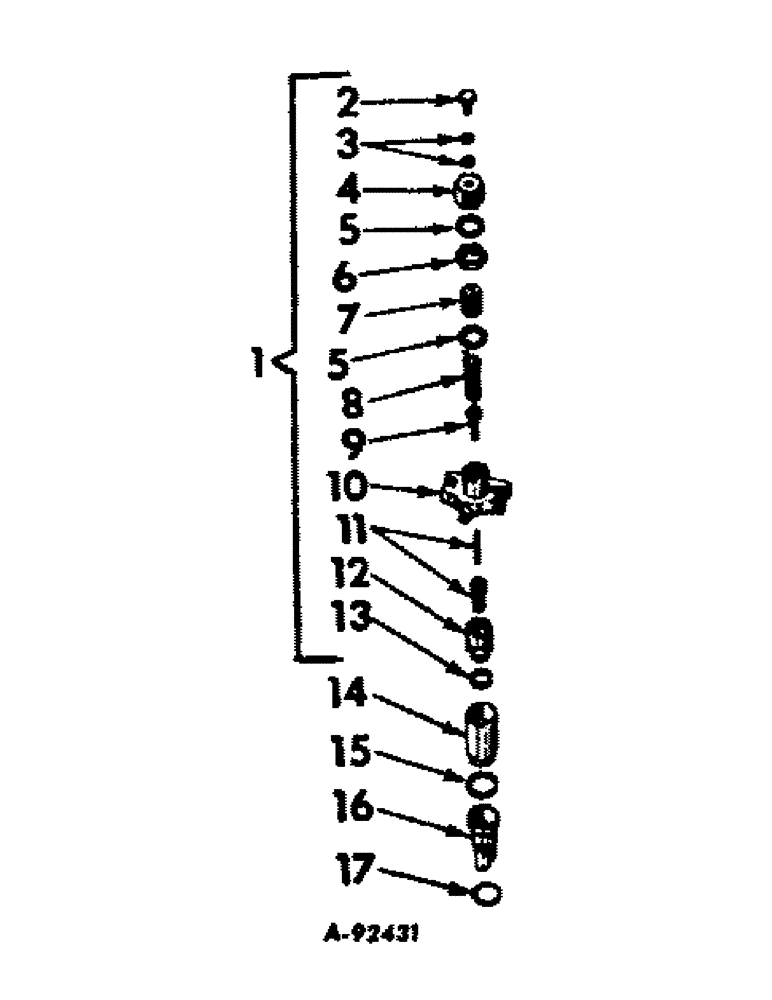

Схема запчастей Case IH BD-144 - (A-20) - FUEL INJECTION NOZZLE, ENGINE SERIAL NUMBER 17288 AND BELOW
6
10
8
4
13
5
7
9
11
15
3
12
16
1
14
17
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

705431R91

NO LONGER SERVICED

NOZZLE AND NOZZLE HOLDER ASSY., injection, Consists of

1шт.

706275R91

NOZZLE HOLDER

BODY

1шт.

706289R1

BOLT

1шт.

706290R1

CAP

1шт.

706292R1

NUT

1шт.

706288R1

NUT

1шт.

706283R1

NUT

1шт.

706284R1

NOZZLE INJECTION

NOZZLE

1шт.

706282R91

NEEDLE BEARING CAGE

SPINDLE

1шт.

706293R1

SPRING

1шт.

706287R1

WASHER

2шт.

703519R1

WASHER

2шт.

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

1шт.

103026

NUT,3/8"-24, G5

8шт.

706077R1

WASHER

8шт.

2

706289R1

BOLT

banjo

4шт.

3

703519R1

WASHER

8шт.

4

706288R1

NUT

nozzle cap holder

4шт.

5

706287R1

WASHER

8шт.

6

708292R1

NUT, lock

4шт.

7

706290R1

CAP, spring

4шт.

8

706293R1

SPRING

4шт.

9

706282R91

NEEDLE BEARING CAGE

SPINDLE ASSY.

4шт.

10

706275R91

NOZZLE HOLDER

BODY, nozzle holder

4шт.

11

706284R1

NOZZLE INJECTION

NOZZLE

4шт.

12

706283R1

NUT

nozzle cap

4шт.

13

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

4шт.

14

708314R1

CHAMBER

HOLDER, pre-combustion

4шт.

15

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

pre-combustion chamber upper

4шт.

16

705359R2

CHAMBER

pre-combustion

4шт.

17

710383R1

GASKET

pre-combustion lower

4шт.
