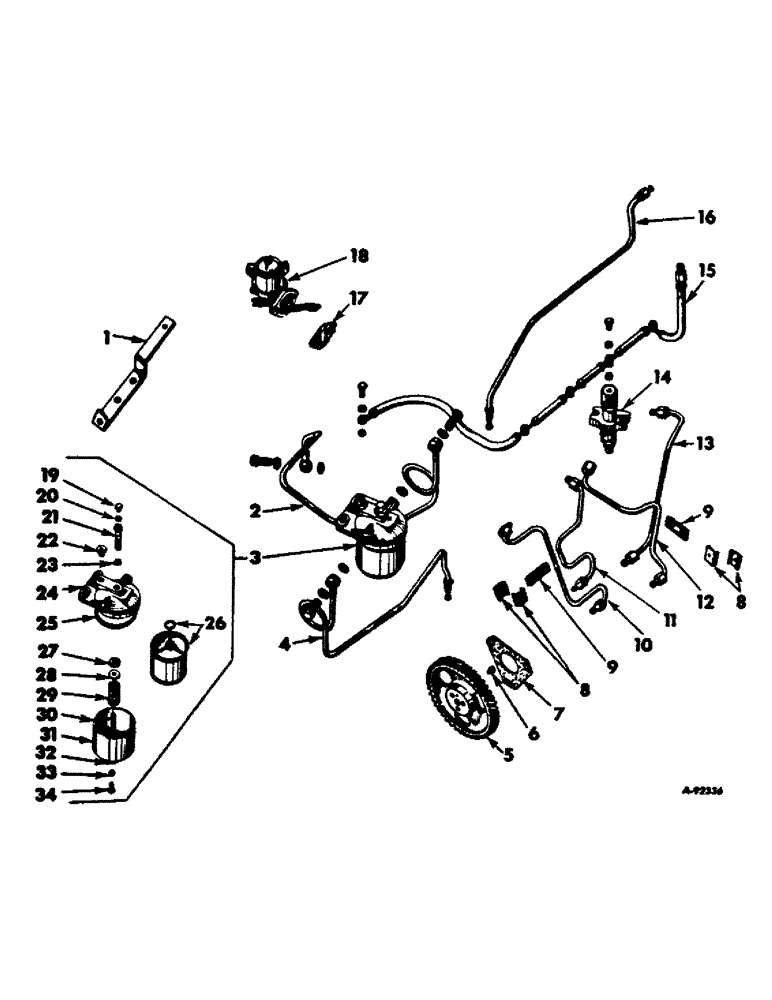

Запчасти Case IH BD-144 (A-19) - FUEL INJECTION PUMP AND CONNECTIONS, ENGINE SERIAL NUMBER 17289 AND ABOVE

1

705425R1

BRACKET, fuel filter support

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

708991R91

PIPE, fuel feed, Serial Range: pump-filter

1шт.

708293R1

BOLT

fuel filter banjo

1шт.

708296R1

CONNECTOR, ELEC

BOLT, fuel feed pump banjo

1шт.

708297R1

GASKET

WASHER, fuel feed pump banjo

2шт.

704643R1

WASHER

fuel filter banjo

1шт.

3

709004R92

FILTER, fuel

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 hex-hd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

3043650R94

PIPE

fuel filter to injection pump fuel

1шт.

708293R1

BOLT

fuel filter banjo

1шт.

704643R1

WASHER

fuel filter banjo

2шт.

5

708290R11

GEAR

injection pump w/pin 708291R1

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

5/16-24 x 3/4 hex-hd mach

3шт.

6

708291R1

DOWEL

PIN, dowel

1шт.

7

708289R1

BOLT

GASKET, injection pump

1шт.

8

841432R1

CLAMP

CLIP, injection pipe

4шт.

703700R1

NUT, no. 12-24 self locking

2шт.

100780

VALVE

SCREW, no. 12-24 x 7/8 mach

2шт.

9

841433R1

INSULATOR BLOCK

PAD, injection pipe

2шт.

10

708307R21

PIPE

no. 1 injection

1шт.

11

708308R31

PIPE

no. 2 injection

1шт.

12

708309R21

PIPE

no. 3 injection

1шт.

13

708310R21

PIPE

no. 4 injection

1шт.

14

3040870R91

FUEL SYSTEM INJECTOR

NOZZLE AND NOZZLE HOLDER, Consists of

4шт.

706275R91

NOZZLE HOLDER

BODY

1шт.

708289R1

BOLT

1шт.

706290R1

CAP

1шт.

706292R1

NUT

1шт.

706288R1

NUT

1шт.

706283R1

NUT

1шт.

3040871R91

NOZZLE CAP

NOZZLE

1шт.

706282R91

NEEDLE BEARING CAGE

SPINDLE

1шт.

706293R1

SPRING

1шт.

706287R1

WASHER

2шт.

703519R1

WASHER

2шт.

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

1шт.

103026

NUT,3/8"-24, G5

8шт.

706077R1

WASHER

8шт.

15

705430R91

PIPE

fuel spill, filter and injector to fuel tank

1шт.

16

708993R91

PIPE, pump to fuel return pipe fuel

1шт.

17

3043370R1

GASKET

feed pump

1шт.

17

3061658R1

GASKET

feed pump, Used in conjunction with 3043370R1

1шт.

18

708294R93

PUMP

feed, FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN THE PARTS CATALOG

1шт.

3063872R1

BOLT

fuel feed pump

2шт.

19

3041357R1

BOLT

vent

1шт.

20

3041358R1

WASHER

vent bolt

1шт.

21

3041364R1

BOLT

1шт.

22

3044912R1

PLUG

1шт.

23

3041358R1

WASHER

1шт.

24

3041360R1

COVER, housing, Order filter 709004R92

1шт.

25

704639R1

GASKET

WASHER, cover sealing

1шт.

26

704640R91

FILTER, ELEMENT

ELEMENT ASSEMBLY, filter

1шт.

27

3041349R1

OIL SEAL

RING, lower sealing

1шт.

28

3041350R1

WASHER, flat

1шт.

29

3041356R1

SPRING

lower

1шт.

30

3041353R1

BOLT, center housing

1шт.

31

3041352R1

HOUSING

1шт.

32

3041354R1

CUP, base

1шт.

3041355R1

RING, sealing

1шт.

33

3041358R1

WASHER

drain plug

1шт.

34

3041357R1

BOLT

PLUG, drain

1шт.

3043249R1

CLIP, fuel pipe

1шт.

707321R91

ELECTRICAL WIRE

SEAL, governor

1шт.

3040973R1

STUD, fuel filter orifice vent

1шт.

703519R1

WASHER

fuel filter orifice vent stud

1шт.
