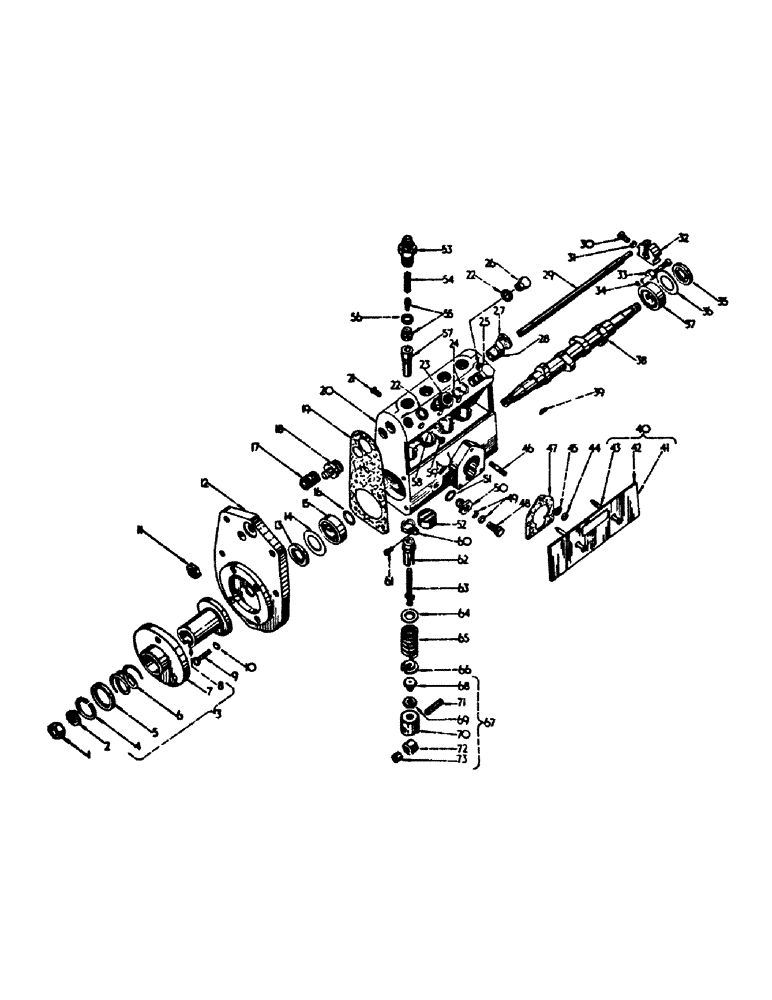

Запчасти Case IH BD-144 (A-14) - FUEL INJECTION PUMP, ENGINE SERIAL NUMBER 17288 AND BELOW

751613R93

PUMP, pneumatic governor injection, Consists of hand primer, fuel pump, fuel feed pump and pneumatic governor

1шт.

706599R92

PUMP, fuel

1шт.

1

701296R1

NUT, camshaft

1шт.

2

701297R1

WASHER, camshaft

1шт.

3

706640R91

COUPLING, BREAK AWAY

COUPLING, uni-directional

1шт.

4

706644R1

SNAP RING

CIRCLIP

1шт.

5

706643R3

CUP WASHER

cup

1шт.

6

706642R2

SPRING

1шт.

7

706641R1

SLEEVE

gear

1шт.

8

706638R1

HUB, gear

1шт.

9

701293R1

SCREW, end plate set

4шт.

10

701315R1

WASHER, end plate set screw

4шт.

11

NSS

NOT SOLD SEPARAT

NUT, end plate stud, Not serviced separately

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE, end, Not serviced separately

1шт.

13

NSS

NOT SOLD SEPARAT

OIL SEAL, Not serviced separately

1шт.

14

NSS

NOT SOLD SEPARAT

SHIM, oil seal, Not serviced separately

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING, roller, Hoffman, Not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.15 MM camshaft, Not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.30 MM camshaft, Not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM, 0.10 MM camshaft, Not serviced separately

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING, control rod, Not serviced separately

1шт.

18

NSS

NOT SOLD SEPARAT

STUD, end plate, Not serviced separately

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET, bearing end plate, Not serviced separately

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING, Not serviced separately

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW, Not serviced separately

1шт.

22

701298R1

WASHER

joint

2шт.

23

706165R1

ADAPTER

1шт.

24

706196R1

GASKET

WASHER, body

2шт.

25

708293R1

BOLT

SCREW, delivery connection

1шт.

26

706167R1

SCREW, air vent

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG, Not serviced separately

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING, control rod, Not serviced separately

1шт.

29

NSS

NOT SOLD SEPARAT

ROD, control, Not serviced separately

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW, Not serviced separately

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER, spring, Not serviced separately

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK, guide, Not serviced separately

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT, guide, Not serviced separately

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER, spring, Not serviced separately

1шт.

35

NSS

NOT SOLD SEPARAT

OIL SEAL, Not serviced separately

1шт.

36

NSS

NOT SOLD SEPARAT

SHIM, oil seal, Not serviced separately

1шт.

37

NSS

NOT SOLD SEPARAT

BEARING, ball, C.A.V., Not serviced separately

1шт.

38

NSS

NOT SOLD SEPARAT

CAMSHAFT, Not serviced separately

1шт.

39

NSS

NOT SOLD SEPARAT

KEY, camshaft, Not serviced separately

2шт.

40

701276R91

PLATE, cover assy.

1шт.

41

701277R1

COVER, inspection

1шт.

42

701278R1

JOINT, inspection cover

1шт.

43

701279R1

SCREW, inspection cover

2шт.

44

701345R1

NUT, feed pump fixing stud

3шт.

45

701301R1

WASHER, feed pump fixing stud

3шт.

46

701299R1

STUD, feed pump fixing

3шт.

47

701280R1

GASKET

feed pump

1шт.

48

703520R1

STUD,M8 x 15mm

leak-off connection

1шт.

49

703519R1

WASHER

2шт.

50

701304R2

BODY, drain level

1шт.

51

701305R1

WASHER, drain level sealing

1шт.

52

NSS

NOT SOLD SEPARAT

CAP, base closure, Not serviced separately

4шт.

53

706161R1

HOLDER, delivery valve

4шт.

54

701268R1

SPRING

delivery valve

4шт.

55

706159R91

VALVE

ASSY., delivery

4шт.

56

706160R1

WASHER

JOINT, delivery valve

4шт.

57

NSS

NOT SOLD SEPARAT

BARREL, Not serviced separately

4шт.

58

NSS

NOT SOLD SEPARAT

WASHER, barrel locking pin, Not serviced separately

4шт.

59

NSS

NOT SOLD SEPARAT

PIN, barrel locking, Not serviced separately

4шт.

60

NSS

NOT SOLD SEPARAT

QUADRANT, control, Not serviced separately

4шт.

61

NSS

NOT SOLD SEPARAT

SCREW, control quadrant set, Not serviced separately

4шт.

62

NSS

NOT SOLD SEPARAT

SLEEVE, control, Not serviced separately

1шт.

63

NSS

NOT SOLD SEPARAT

PLUNGER, Not serviced separately

4шт.

64

NSS

NOT SOLD SEPARAT

PLATE, upper spring, Not serviced separately

4шт.

65

NSS

NOT SOLD SEPARAT

SPRING, plunger, Not serviced separately

4шт.

66

NSS

NOT SOLD SEPARAT

PLATE, lower spring, Not serviced separately

4шт.

67

NSS

NOT SOLD SEPARAT

TAPPET ASSY., Not serviced separately, Consists of ref. nos. 68 thru 73

4шт.

68

NSS

NOT SOLD SEPARAT

SCREW, tappet, Not serviced separately

4шт.

69

NSS

NOT SOLD SEPARAT

NUT, tappet lock, Not serviced separately

4шт.

70

NSS

NOT SOLD SEPARAT

GUIDE, tappet, Not serviced separately

4шт.

71

NSS

NOT SOLD SEPARAT

PIN, tappet roller, Not serviced separately

4шт.

72

NSS

NOT SOLD SEPARAT

ROLLER, tappet, Not serviced separately

4шт.

73

NSS

NOT SOLD SEPARAT

BUSH, tappet roller, Not serviced separately

4шт.
