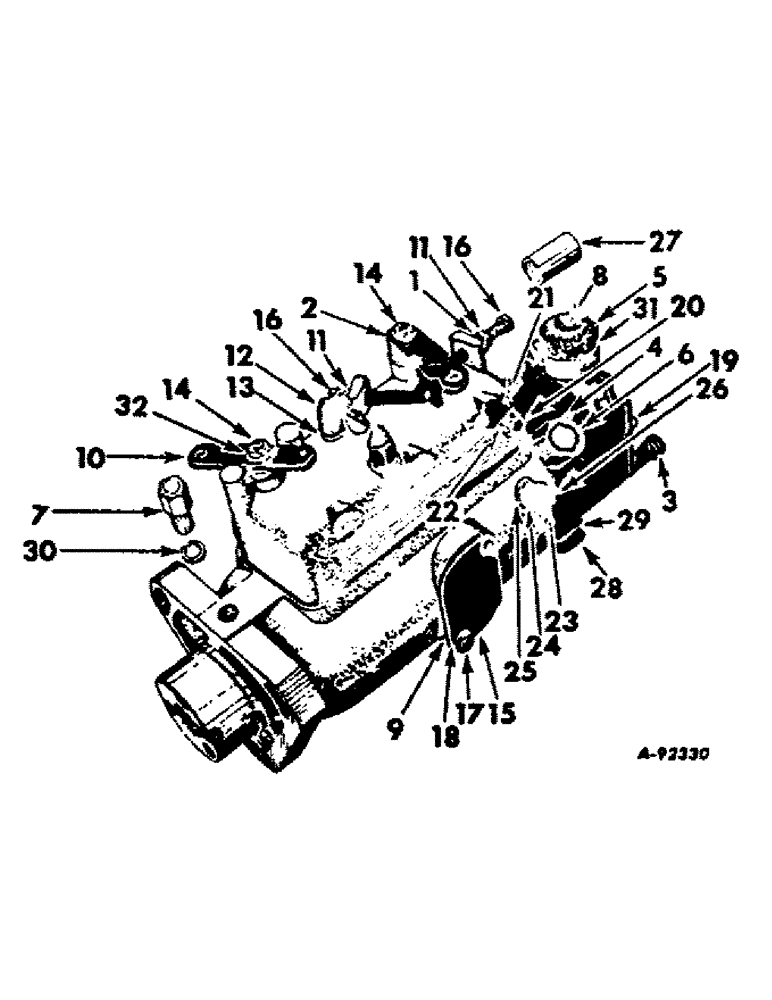

Запчасти Case IH BD-144 (A-13) - FUEL INJECTION PUMP, ENGINE SERIAL NUMBER 17289 AND ABOVE

3040869R91

FUEL INJECTION PUMP

PUMP, D.P.A. fuel injection

1шт.

1

3043095R1

ADAPTER

ADAPTOR, sleeve

1шт.

2

3043104R1

ARM

throttle control, Order from Dresser Ind.

1шт.

3

3043091R1

BOLT

BANJO, short screwed

1шт.

3

3043092R1

CONNECTOR, ELEC

BANJO, long screwed

2шт.

4

3043086R1

BLADE

transfer pump

1шт.

5

3043083R1

CONNECTOR, ELEC

CONNECTION, pipe inlet

1шт.

6

3043094R1

CONNECTOR, ELEC

CONNECTION, radial

1шт.

7

3043107R1

CONNECTOR, ELEC

CONNECTION, drain pipe

1шт.

8

3043084R1

FILTER

1шт.

9

3043110R1

GASKET

cover plate

1шт.

10

3043103R1

LEVER

shut-off

1шт.

11

3105138R1

NUT

adjusting screw locking

1шт.

12

3043101R1

NUT

cover stud

2шт.

13

3043102R1

SEALING WASHER

cover stud

2шт.

14

3043106R1

NUT, shut-off shaft and throttle shaft

1шт.

15

3043109R1

PLATE

cover

1шт.

16

3043097R1

ADJUSTMENT SCREW,M10 x 32 x 35mm

SCREW, adjusting

1шт.

17

3043111R1

SCREW

cover plate

2шт.

18

705380R1

WASHER, Shakeproof

2шт.

19

3043082R1

SCREW, end plate

4шт.

3043099R91

BREATHER

SCREW ASSY., vent cover

1шт.

20

3043108R1

CAPSCREW

SCREW, vent

1шт.

21

3043113R1

SCREW, vent body

1шт.

22

3043100R1

WASHER

1шт.

3043088R91

BREATHER,Lock

SCREW ASSY., vent head

1шт.

23

3043108R1

CAPSCREW

SCREW, vent

1шт.

24

3043112R1

CAPSCREW

SCREW, vented head

1шт.

25

3043089R1

WASHER

head screw

1шт.

26

3043087R1

SEAL

transfer pump

1шт.

27

3064263R1

SLEEVE

locking

1шт.

28

3043090R1

STUD

fuel connection

4шт.

29

3043093R1

WASHER

connection

8шт.

30

3043093R1

WASHER

drain connection

1шт.

31

3043085R1

WASHER

fuel inlet

1шт.

32

705380R1

WASHER, Shakeproof, shut-off shaft and throttle shaft

2шт.

32

3043105R1

WASHER

shut-off shaft and throttle shaft

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

3шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

3шт.
