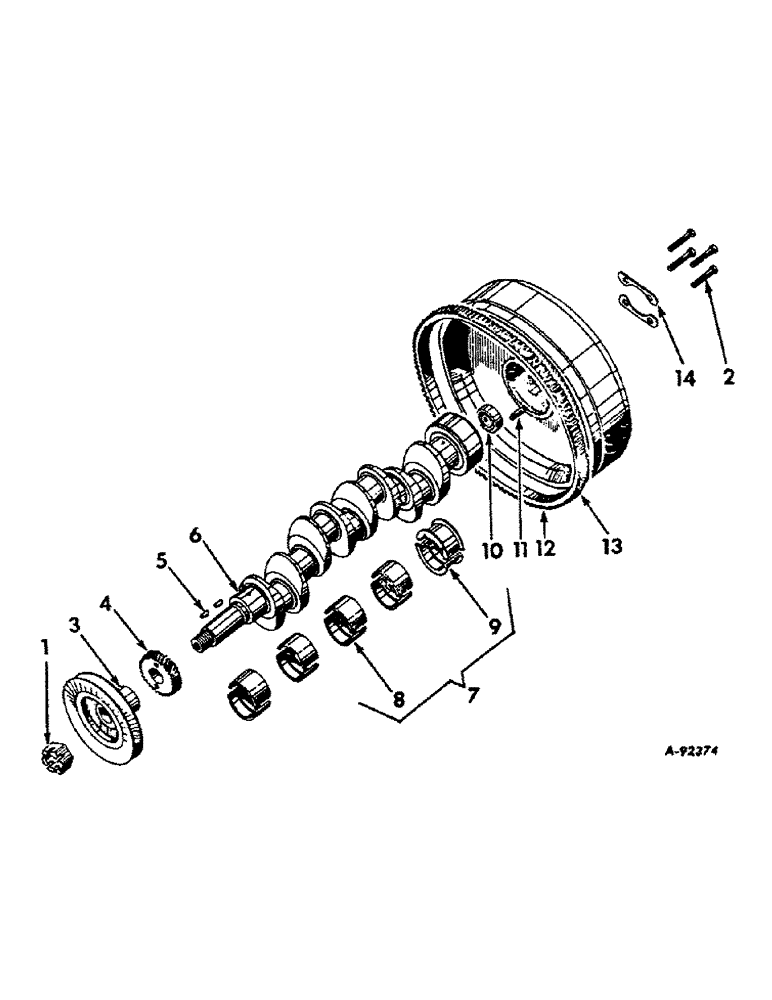

Запчасти Case IH BD-144 (A-10) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

711069R1

NIPPLE, LUBE

NUT, starting crank

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

2

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

3

707327R2

PULLEY

fan drive, Engine serial no. 17288 and below

1шт.

3

708286R1

PULLEY

fan drive, Engine serial no. 17299 and above

1шт.

3

635266R1

PULLEY

fan drive, Tractors w/front power drive

1шт.

4

703865R1

GEAR

PINION, crankshaft, 33 teeth

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 no. 91 Woodruff

2шт.

6

3110995R91

CRANKSHAFT

STD, w/two pins 24550D and bearing 708909R91

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING, crankshaft main, std, Consists of

1шт.

710318R11

CRANKSHAFT BEARING

BEARING

4шт.

708910R91

BEARING ASSY

BEARING

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING, crankshaft main, Consists of

1шт.

710740R11

CRANKSHAFT BEARING

BEARING

4шт.

708911R91

BEARING ASSY

BEARING

1шт.

8

710318R11

CRANKSHAFT BEARING

BEARING, main front and center crankshaft, std.

4шт.

8

710740R11

CRANKSHAFT BEARING

BEARING, main front and center crankshaft, .030 U/S

4шт.

8

713657R11

CRANKSHAFT BEARING

BEARING, main front and center crankshaft, .015 U/S

4шт.

9

708910R91

BEARING ASSY

BEARING, main rear crankshaft, std

1шт.

9

708911R91

BEARING ASSY

BEARING, main rear crankshaft, .030 U/S

1шт.

9

708915R91

BEARING ASSY

BEARING, main rear crankshaft, .015 U/S

1шт.

10

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

11

24550D

PIN

flywheel dowel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3041456R11

FLYWHEEL, w/ring gear 704436R1 and two pins 141215, Engine serial no. 17289 and above

1шт.

13

751128R31

FLYWHEEL, w/ring gear 704436R1 and two pins 141215, Engine serial no. 17288 and below

1шт.

14

709516R1

RETAINER

LOCK, flywheel bolt

2шт.
