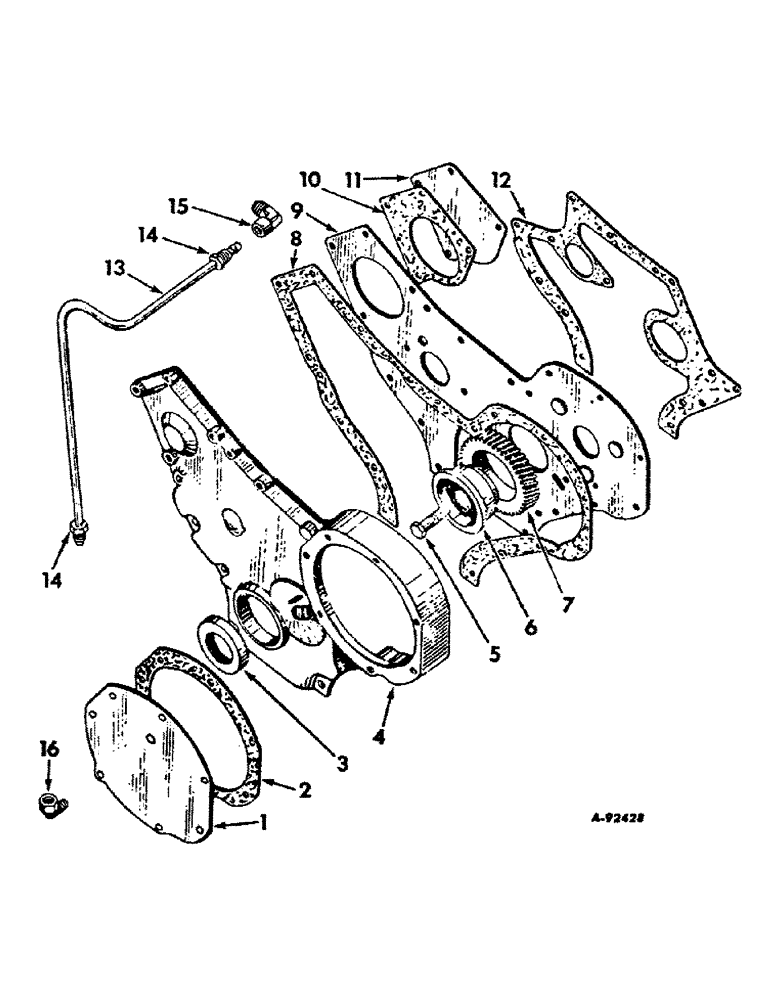

Запчасти Case IH BD-144 (A-08) - CRANKCASE FRONT COVER

1

NLS

NO LONGER SERVICED

COVER, injection pump gear, Discontinued for service, Engine serial no. 17288 & below

1шт.

1

709904R2

COVER

injection pump gear, Engine serial no. 17289 & above

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

2

703849R1

GASKET

injection pump gear cover

1шт.

3

20290D

OIL SEAL

OIL SEAL, crankshaft front

1шт.

4

3042069R21

COVER

W/OIL SEAL, 20290D, crankcase front, Engine serial no. 17289 and above

1шт.

4

703843R11

COVER W/OIL SEAL, 20290D, crankcase front, Engine serial no. 17288 and below

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

1/2-20 x 1-7/8 hex-hd

1шт.

6

703853R11

SHAFT

W/PIN, 932039 idler gear

1шт.

932039

PIN, ROLL

PIN, 1/8 x 5/8 roll

1шт.

7

703852R1

GEAR

idler

1шт.

8

708285R1

GASKET

crankcase front cover, Engine serial no. 17289 and above

1шт.

8

703847R1

GASKET

crankcase front cover, Engine serial no. 17288 and below

1шт.

9

709901R11

PLATE

crankcase front, Engine serial no. 17289 and above

1шт.

9

703841R21

PLATE, crankcase front w/three locks 46250D and three rivets 100638, Engine serial no. 17288 and below

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4 x 3/4 sl-flat-hd mach

2шт.

703636R1

WASHER

front plate bolt tab

1шт.

10

703851R1

GASKET

hydraulic pump opening cover

1шт.

114616

WASHER

1/4 1/4 csk ext tooth lock

2шт.

11

703850R1

COVER

hydraulic pump opening

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

SCREW, 5/16-18 x 2-1/8 hex-hd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

3/4 x 11/32 x 16 ga plain

1шт.

12

709903R2

GASKET

crankcase front plate

1шт.

13

3040831R1

PIPE, crankcase breather, Engine serial no. 17289 and above

1шт.

13

3040331R1

PIPE, crankcase breather, Engine serial no., Serial Range: 4677-17288

1шт.

13

709460R11

PIPE, crankcase breather, Engine serial no. 4676 and below

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, crankcase breather pipe connector

2шт.

15

57068D

ELBOW, breather pipe intake manifold

1шт.

16

3110596R1

ELBOW

breather pipe injection pump

1шт.
