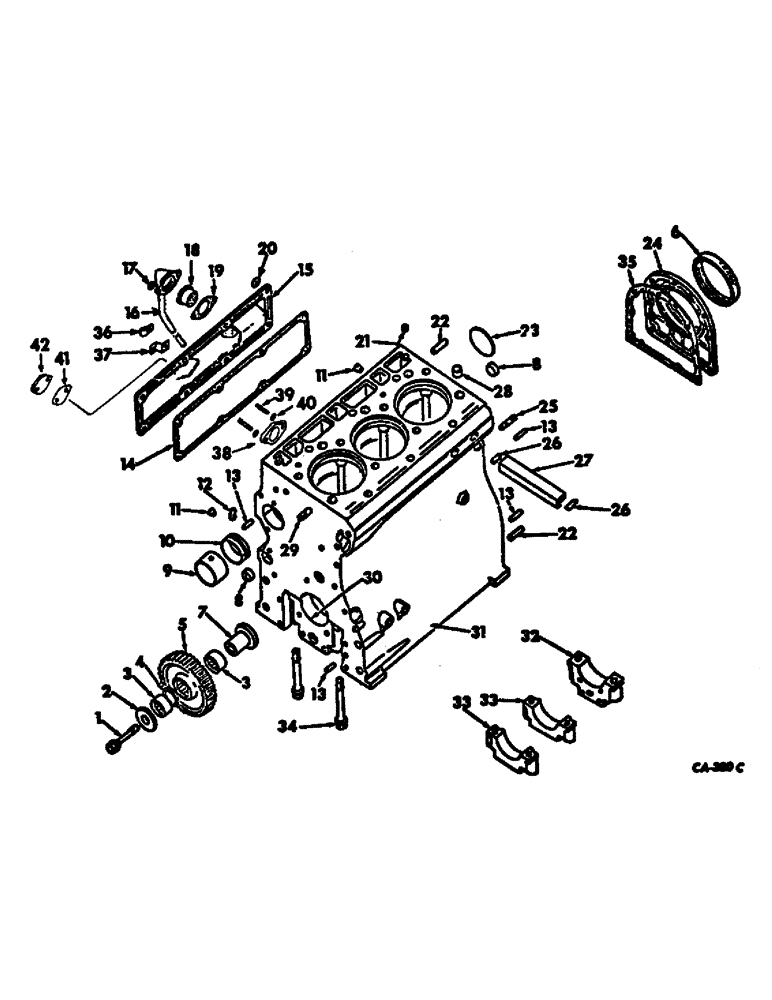

Запчасти Case IH D-179 (A-08) - CRANKCASE AND RELATED PARTS

1

3055374R2

BOLT

BOLT, idler gear carrier

1шт.

2

3055372R1

DISC

WASHER, thrust

1шт.

3

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER, needle bearing, Optional with retainer 3136515R91

2шт.

3

3136515R91

BEARING

RETAINER, needle bearing, Optional with retainer 3058816R91

2шт.

4

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING, distance

1шт.

5

3055043R3

PINION

GEAR, idler 68 teeth

1шт.

6

3138701R91

SEAL

SEAL, oil

1шт.

7

3055373R1

CARRIER

idler gear

1шт.

8

933537R1

PLUG,M25, Conical

COVER, closing

2шт.

9

3055008R1

CAMSHAFT BEARING

BEARING, camshaft front

1шт.

10

3055009R1

BEARING LINER

BEARING, camshaft

3шт.

11

103884

PLUG,Slotted, 1/4" NPT

1/4 slotted headless pipe

3шт.

12

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

13

141242

DOWEL

PIN, 3/8 x 7/8 dowel

4шт.

14

3055394R1

GASKET

side cover, Optional w/gasket 3136174R1

1шт.

14

3136174R1

GASKET

side cover, Optional w/gasket 3055394R1

1шт.

15

3055313R11

COVER

ASSY, crankcase side

1шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

REF#15 SHOULD USE 3132815R1 8/19/96

1шт.

16

3144020R91

BREATHER ASSY.

BREATHER ASSY, Replaces 3055319R11

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

3138687R1

RING

packing

2шт.

18

3055324R91

ELEMENT

ASSY, filter breather

1шт.

19

3138639R1

GASKET

breather

1шт.

20

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x .098

8шт.

21

3136004R1

COVER

closing

1шт.

22

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

23

41-3044

PLUG,Exp, 2 3/4"

2-3/4 expansion

1шт.

24

3055216R1

RETAINER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

933570R1

WASHER

DISK, spring

9шт.

25

3055270R1

STUD

rear

1шт.

26

714868R1

SEALING STRIP

seal

2шт.

27

3055214R1

SUPPORT

STRIP, crankcase sealing

1шт.

28

3055007R1

BUSHING

PIN, dowel

2шт.

29

3055989R1

STUD

front

1шт.

30

CAP, crankshaft front bearing, Not serviced separately, Order crankcase assy

1шт.

31

3055001R36

CRANKCASE

ASSY, Consists of

1шт.

CRANKCASE (NSS)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

103884

PLUG,Slotted, 1/4" NPT

3шт.

NLS

NO LONGER SERVICED

PIN

4шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

41-3044

PLUG,Exp, 2 3/4"

1шт.

3136004R1

COVER

1шт.

933537R1

PLUG,M25, Conical

COVER

2шт.

3218400R1

PIN

BUSHING

2шт.

3055008R1

CAMSHAFT BEARING

BEARING

1шт.

3055009R1

BEARING LINER

BEARING

3шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

8шт.

CAP ASSY (NSS)

1шт.

CAP ASSY (NSS)

2шт.

CAP ASSY (NSS)

1шт.

3055270R1

STUD

1шт.

32

CAP, crankshaft rear bearing, Not serviced separately, Order package 3144436R91

1шт.

33

CAP, crankshaft center bearing, Not serviced separately, Order package 3144438R91

2шт.

34

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

8шт.

35

3055215R1

GASKET

seal retainer

1шт.

36

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

37

3144022R1

BRACKET

LINK, fixing

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

SCREW, 9/16-12 x 3/4 hex-hd cap

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

38

3055391R22

NO LONGER SERVICED

FLANGE ASSY, Includes ref nos. 39 and 40

1шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

DISC, spring

2шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

39

3055388R1

STUD

2шт.

40

3132869R1

O-RING

WASHER

2шт.

41

3144685R1

GASKET

cover

1шт.

42

3144684R1

COVER

1шт.

3144436R91

CRANKSHAFT BEARING

PACKAGE, crankshaft bearing cap, Consists of

1шт.

CAP (NSS)

1шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

2шт.

3144438R91

BEARING ASSY

PACKAGE, crankshaft bearing cap, Consists of

1шт.

CAP (NSS)

1шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

2шт.

3144785R91

CONVERSION PACKAGE

FIELD PACKAGE, breather, Used to avoid oil loss through crankcase breather during tractor operation on extreme sloping conditions, Consists of

1шт.

3144787R1

COVER

VALVE COVER

1шт.

3144117R92

CAP

BREATHER CAP

1шт.

3144120R1

CLAMP

1шт.

3070232R1

O-RING

1шт.

3144789R1

COVER

CLOSING COVER

1шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

2шт.

3138639R1

GASKET

1шт.

3138641R1

GASKET

1шт.
