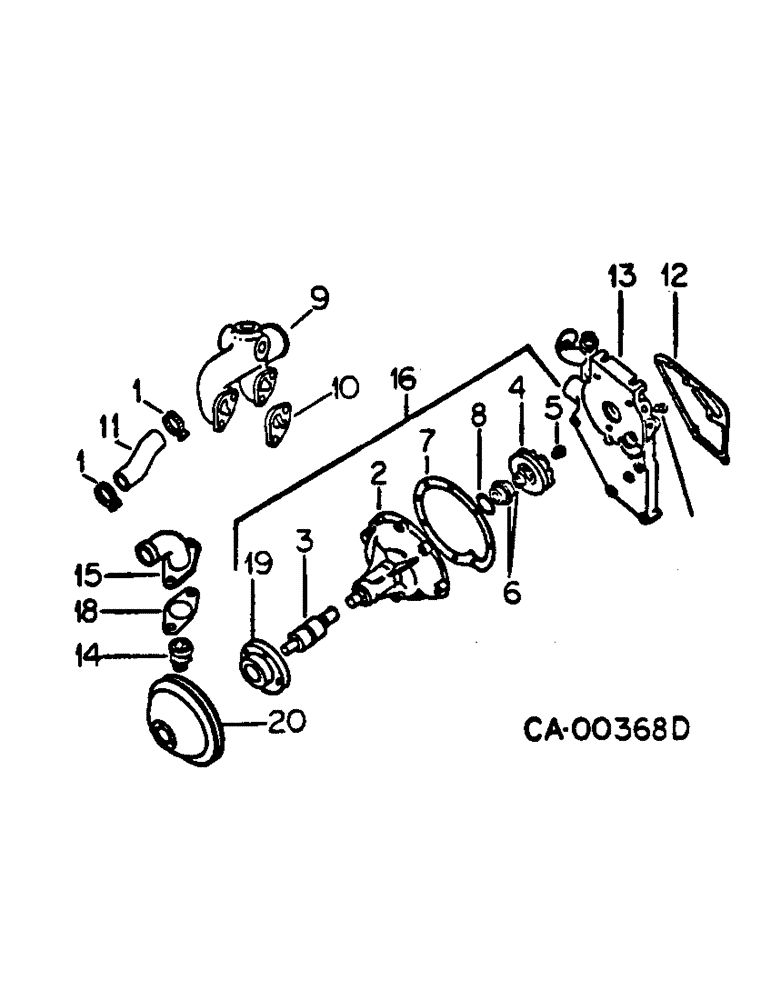

Запчасти Case IH D-179 (A-06) - THERMOSTAT AND WATER PUMP

1

3218259R1

CLAMP,M40-60, Worm

CLAMP, hose, Replaces 3136499R1, Optional w/clamp 755023R91 and 3144921R1

2шт.

1

755023R91

STRAP

CLAMP, hose, Optional w/3144921R1 and 3218259R1

2шт.

1

3144921R1

CLAMP,M50-70, Worm

CLAMP, hose, Optional w/755023R91 & 3218259R1

2шт.

2

3144662R92

X

BODY ASSY, pump, Includes ref. no. 3

1шт.

3

3144445R1

SPARE PART BEARING, water pump, Used w/housing, 3144609R92, Note

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING, water pump, Used w/housing, 3132677R3, Note (replaces 3055192R92)

1шт.

4

3055211R2

IMPELLER

IMPELLER, pump

1шт.

5

3055308R1

PLUG

PLUG, closing

1шт.

6

3055285R93

GASKET KIT

PACKAGE, water pump reconditioning, Consists of

1шт.

REF

INSTRUCTION

RING (NSS)

1шт.

REF

INSTRUCTION

PACKING (NSS)

1шт.

REF

INSTRUCTION

RING (NSS)

1шт.

REF

INSTRUCTION

RING (NSS)

1шт.

3055177R1

GASKET

GASKET

1шт.

7

3055177R1

GASKET

GASKET, water pump

1шт.

8

3055260R1

O-RING

O-RING, seal

1шт.

9

3144027R1

MANIFOLD

MANIFOLD, water collecting, Replaces 3055254R1 and 3218034R1

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

444630

PLUG,Hex Hd, 1/2"-14

PLUG, Replaces 444667

2шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex.

6шт.

933570R1

WASHER

DISC, spring

3шт.

712616R1

PLUG,Hex, M14 x 1.5

PLUG, Hex, M14 x 1.5

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

1шт.

3136506R1

RING

RING, packing

1шт.

10

3055306R1

GASKET

GASKET, water pipe

3шт.

11

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting, Used with manifold 3055254R1

1шт.

11

3144028R2

HOSE

Connecting, Used w/manifold 3218034R1

1шт.

12

3055999R1

GASKET

GASKET, water pump carrier

1шт.

13

3136678R1

HOUSING

CARRIER, water pump

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 3 1/2", G5

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT, Hex, 5/16"-18 x 4", G5

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

445686

PLUG

PLUG, 3/8-18 auto hex-hd pipe

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

1шт.

14

3059676R91

THERMOSTAT

THERMOSTAT 176-183 deg

1шт.

15

3132142R2

FLANGE

ELBOW(replaces 3136052R1)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-18 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

3136053R91

WATER PUMP

PUMP ASSY, water

1шт.

16

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

16

735102C91

REMAN-WATER PUMP

Remanufactured, WATER PUMP

1шт.

16

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3132679R1

SPACER

SCREW, 5/16-18 x 3-1/2 hex-slt-hd

1шт.

17

444630

PLUG,Hex Hd, 1/2"-14

PLUG, 1/2-14 auto-hex-hd pipe

1шт.

18

3132143R1

GASKET

GASKET

1шт.

19

3132146R1

HUB

HUB, pulley

1шт.

20

401124R2

PULLEY

PULLEY, water pump, 192-19 lockwasher used on pulley assy.

1шт.
