(A-05) - CONNECTING RODS, PISTONS AND SLEEVES, THREE RING PISTONS

Запчасти Case IH D-179 (A-05) - CONNECTING RODS, PISTONS AND SLEEVES, THREE RING PISTONS

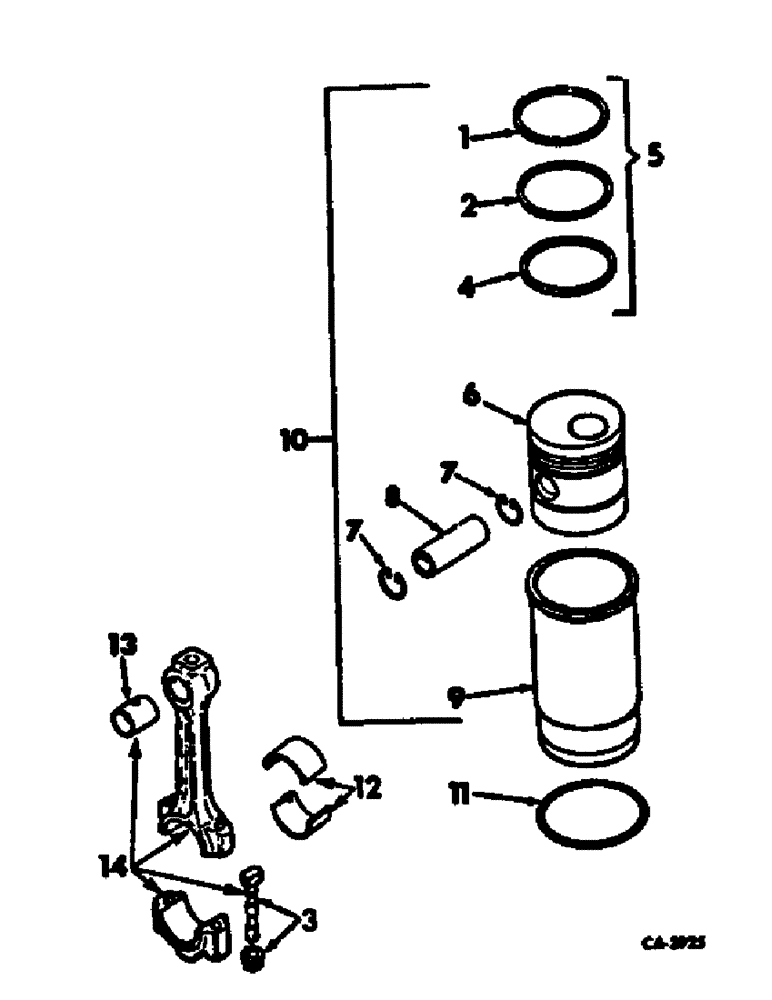

Схема запчастей Case IH D-179 - (A-05) - CONNECTING RODS, PISTONS AND SLEEVES, THREE RING PISTONS
7
3
12
9
13
7
4
8
2
14
1
6
5
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

RING, compression, First, Order reference no. 5

3шт.

2

RING, compression, Second, Order reference no. 5

3шт.

3

3055033R11

BOLT

W/Nut, Connecting rod

6шт.

4

RING, oil control, Third, Order reference no. 5

3шт.

5

3144452R92

PISTON RING SET

3шт.

RING SET, piston, rectangular shaped top ring groove, 464 tractors, 454 GD tractors with engine serial number 024832 and above and 454 HS tractors with engine serial number 056138 and above, Consists of two compression and one oil ring, optional w/3218416R91

1шт.

5

3218416R91

PISTON RING SET

RING SET, piston, note, all chrome rings, Consists of two compression and one oil ring, Optional w/3144452R92

3шт.

5

3139594R91

PISTON RING

RING SET, piston, chrome, For pistons w/keystone shaped top ring groove, 454 BD tractors with engine serial number 024831 and below and 454 HS tractors with engine serial number 056137 and below

3шт.

6

PISTON, Not serviced separately

3шт.

7

933327R1

SNAP RING,M36, Int

SPRING, retainer

6шт.

8

3055217R2

PISTON PIN

PIN, piston

3шт.

9

SLEEVE, cylinder, Not serviced separately

3шт.

10

3139591R93

PISTON ASSY

PISTON W/SLEEVE, piston w/rectangular shaped to ring groove(replaces 3144257R93)

3шт.

REF#10 SHOULD USE 3139591R93 8/19/96

1шт.

11

3218603R1

O-RING

3шт.

12

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

3шт.

12

3056834R11

BEARING ASSY

BEARING ASSY, connecting rod - .010 U/S

3шт.

12

3056879R11

BEARING ASSY

BEARING ASSY, connecting rod - .020 U/S

3шт.

12

3055781R11

BEARING ASSY

ASSY, connecting rod - .030 U/S

3шт.

13

3132018R1

BUSHING

piston pin, engine must be equipped with cylinder head gasket, 3144181R2

3шт.

14

3055030R24

ROD, CONNECTING

ROD ASSY, connecting

3шт.

3218538R1

SHIM

cylinder sleeve, 0,05 MM

1шт.

3218539R1

SHIM

cylinder sleeve, 0,1 MM

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

cylinder sleeve, 0,25 MM

1шт.

3218541R1

SHIM

cylinder sleeve, 0,5 MM

1шт.

3218542R1

SHIM

cylinder sleeve, 0,8 MM

1шт.
