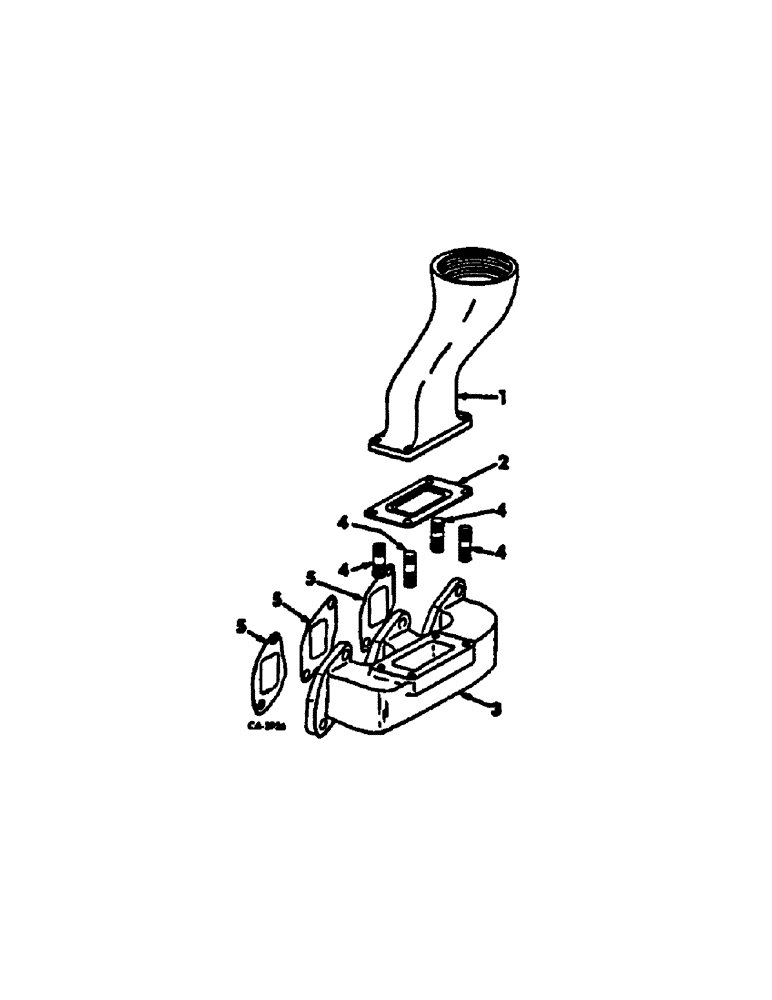

Запчасти Case IH D-179 (A-31[A]) - EXHAUST MANIFOLD, VERTICAL 454 AND 464 TRACTORS

1

3136250R1

ELBOW

exhaust manifold

1шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold elbow

1шт.

3

3136069R12

MANIFOLD

W/FOUR STUDS, exhaust

1шт.

103026

NUT,3/8"-24, G5

6шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

6шт.

4

3056663R1

STUD, manifold

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

REF#4C NUT- SHOULD BE PART 129-103 8/19/96 REF #4 STUD OF 3056663R1 SHOULD BE 3055663R1

1шт.

5

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

3шт.
