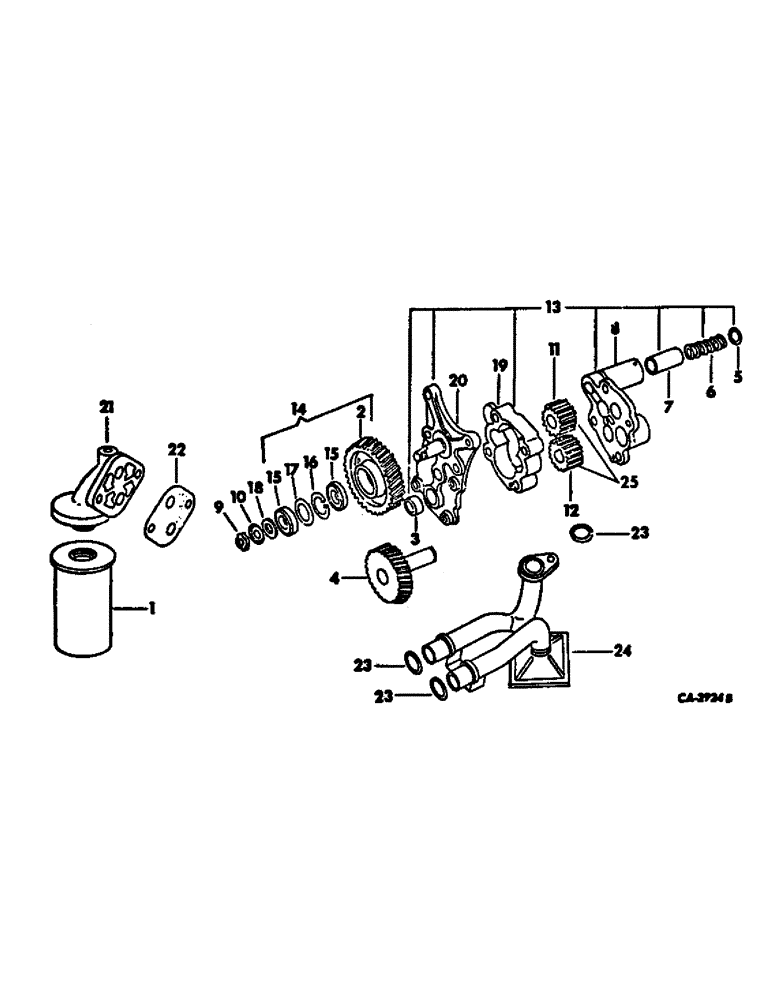

Запчасти Case IH D-179 (A-30) - LUBRICATING OIL PUMP AND FILTER

3136429R92

PUMP

ASSY, oil, Consists of ref nos 2 through 20

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21035R1

HEX SOC SCREW,5/16"-18 x 1"

4шт.

1

3136046R93

FILTER, ENGINE OIL

FILTER, oil, Optional with 398080R2

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER, oil, Optional with 3136046R93

1шт.

2

3055291R1

PINION

GEAR

1шт.

3

BUSHING, Not serviced separately, Order carrier assy, 3136435R91

1шт.

4

3136437R91

PINION

GEAR ASSY, drive

1шт.

5

3139620R1

SPRING WASHER

spring, Replaces 933133R1

1шт.

6

3136264R1

SPRING

pressure relief valve

1шт.

7

3055202R2

VALVE

piston relief

1шт.

8

COVER ASSY, oil pump, Not serviced separately, Order carrier assy. 3136435R91

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

9

3055295R1

NUT

shaft

1шт.

10

3055296R1

WASHER

PLATE, locking

1шт.

11

GEAR, idler, Not serviced separately furnish gear set 3136440R91

1шт.

12

GEAR, oil pump, Not serviced separately furnish gear set 3136440R91

1шт.

13

3136435R92

ENGINE OIL PUMP

CARRIER ASSY, w/3 roll pin and one cotter pin, 103387

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

14

GEAR ASSY, idler, No longer furnished as an assembly, Furnish the following parts as necessary, 933597R1, 3055291R1, 3055292R1, 476045R91 and 476046R1

1шт.

15

476045R91

ROLLER BEARING

BEARING ASSY, roller cone

2шт.

15

476046R1

BEARING, CUP

BEARING ASSY, roller cup

2шт.

16

933579R1

SNAP RING,M35, Int

1шт.

17

3055292R1

WASHER

WASHER

1шт.

18

3055371R2

WASHER

idler gear

1шт.

19

CASE, oil pump gear, Not serviced separately, Order carrier assy. 3136435R91

1шт.

20

CARRIER, Not serviced separately, order carrier assy, 3136435R91

1шт.

21

3136047R1

HEAD

SOCKET, oil filter

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3144513R1

SPRING WASHER

DISK, spring

2шт.

22

3055237R1

GASKET

oil filter socket

1шт.

23

3055199R1

O-RING

3шт.

24

3132773R92

PIPE

ASSY, oil pressure & suction(replaces 3132828R92)

1шт.

REF#24 SHOULD USE 3132773R92 8/19/96

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

3136440R91

GEAR-SET

SET, oil pump gear

1шт.
