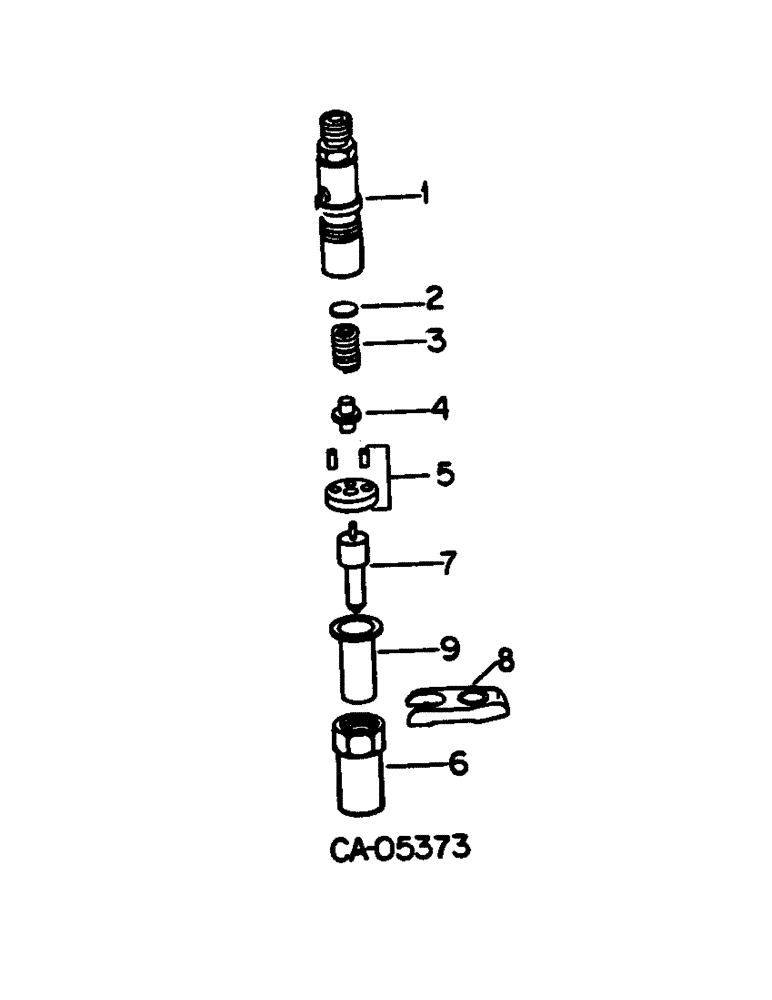

Запчасти Case IH D-179 (A-23) - INJECTION NOZZLE

HOLDER ASSY, injection nozzle, furnish individual components, clamp mounted

1шт.

3218247R91

HOLDER

nozzle, less 3218251R1

1шт.

1

3218389R1

BODY

nozzle holder

1шт.

2

3218657R1

SHIM

adjusting pin, 0.500MM

1шт.

2

3218658R1

SHIM

adjusting pin, 0.525MM

1шт.

2

3218659R1

SHIM

adjusting pin, 0.550MM

1шт.

2

3218660R1

SHIM

adjusting pin, 0.575MM

1шт.

2

3218661R1

SHIM

adjusting pin, 0.600MM

1шт.

2

3218662R1

SHIM

adjusting pin, 0.700MM

1шт.

2

3218663R1

SHIM

adjusting pin, 0.800MM

1шт.

2

3218664R1

SHIM

adjusting pin, 0.900MM

1шт.

3

3218385R1

SPRING

compression

1шт.

4

3218386R1

PIN

pressure

1шт.

5

3218387R1

SPACER

1шт.

6

3218388R1

NUT

cap

1шт.

7

3218251R1

NOZZLE

injection

3шт.

8

3218128R1

RETAINER

CLAMP, injector

3шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

SCREW, 5/16-18 x 1 PHC type 8 hex-hd cap

3шт.

3218129R1

WASHER

centering

3шт.

9

3132028R1

SLEEVE,6.2mm ID x 16.5mm OD x 24.5mm L

heat protection

3шт.
