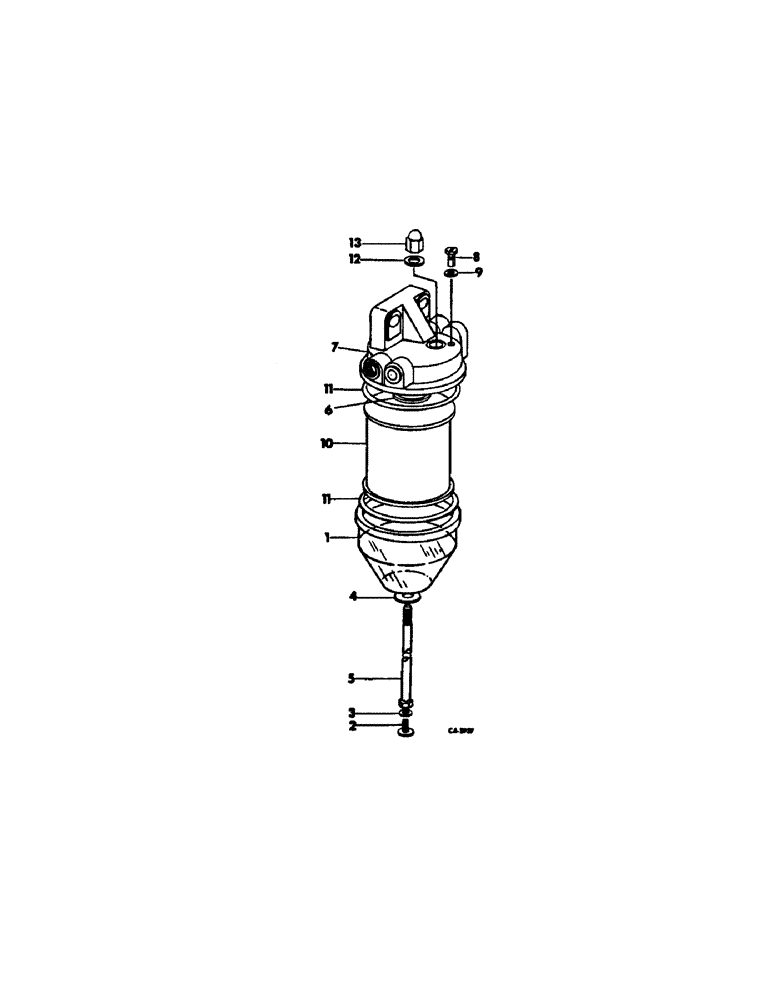

Запчасти Case IH D-179 (A-21[A]) - FINAL FUEL FILTER

3144502R91

FILTER

ASSY, final fuel

1шт.

1

3144478R1

FILTER BOWL

glass

1шт.

2

3144475R1

SCREW

drain

1шт.

3

3144476R1

RING

packing

1шт.

4

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

1шт.

5

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow

1шт.

6

3078483R1

O-RING,2.5mm Thk x 15mm ID

RING, packing

1шт.

7

3144503R1

HEAD

1шт.

8

3055881R1

SCREW

air vent

1шт.

9

757760R1

RING

packging

1шт.

10

ELEMENT, filter, Not serviced separately, Order service package 3144477R91 or 3044506R93

1шт.

11

3144472R1

RING

packing

2шт.

12

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

1шт.

13

3144473R1

CROWN NUT

crown

1шт.

3144477R91

FILTER

PACKAGE, filter service, Optional with 3044506R93, Consists of

1шт.

ELEMENT

1шт.

3144472R1

RING

PACKING

2шт.
