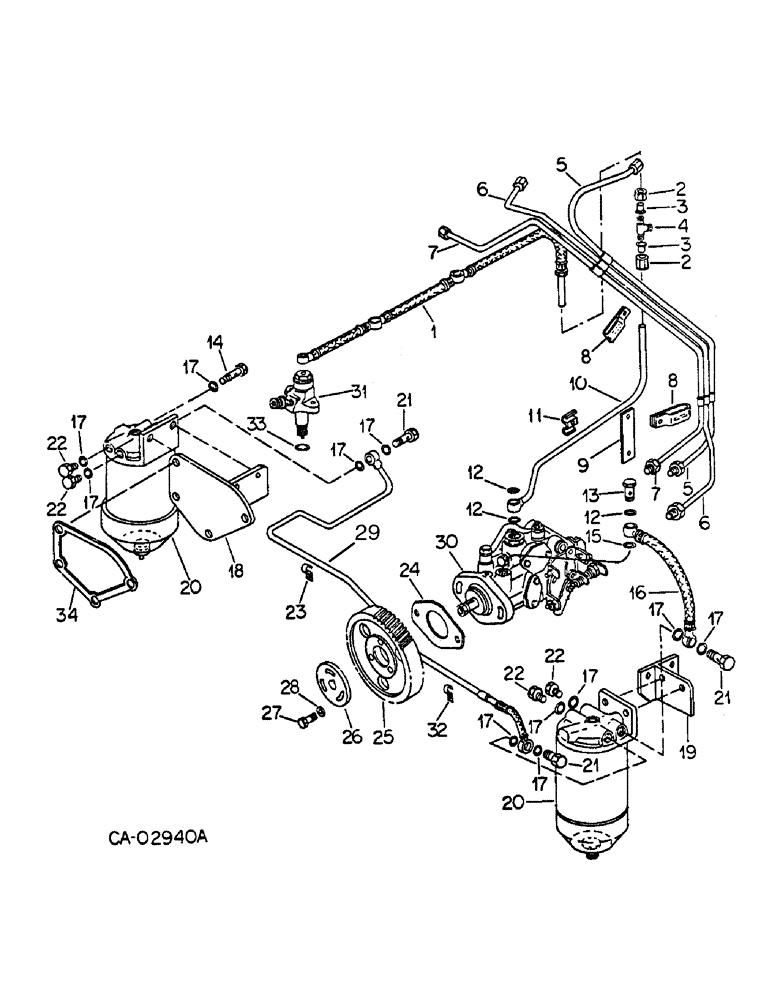

Запчасти Case IH D-179 (A-19) - FUEL INJECTION PUMP AND CONNECTIONS, MACHINES WITH BOSH MODEL CR FUEL INJECTION PUMP

1

3132826R1

LINE

LINE, leak, Used w/nozzle holder assy 3055423R92

1шт.

1

3218126R1

TUBE

LINE, leak, Used w/nozzle holder assy 3218250R91

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW, screw, Used w/3218126R1

3шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm, Used w/3218126R1

6шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SLEEVE, ferrule

2шт.

4

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

TEE, union

1шт.

5

3144409R91

PIPE

PIPE ASSY, injection, Cyl 3, Used w/nozzle holder assy 3055423R92

1шт.

5

3218138R1

FUEL TUBE

PIPE ASSY, injection, Cyl 3, Used w/nozzle holder assy 3218250R91

1шт.

6

3144407R91

PIPE

PIPE ASSY, injection, Cyl 2, Used w/nozzle holder assy 3055423R92

1шт.

6

3218137R1

FUEL TUBE

PIPE ASSY, injection, Cyl 2, Used w/nozzle holder assy 3218250R91

1шт.

7

3144405R91

PIPE

PIPE ASSY, injection, Cyl 1, Used w/nozzle holder assy 3055423R92

1шт.

7

3218136R1

PIPE

PIPE ASSY, injection, Cyl 1, Used w/nozzle holder assy 3218250R91

1шт.

8

3132766R1

CLAMP

CLAMP, pipe

2шт.

176793

SCREW, 1/4-20 x 5/8 hex-hd cap

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

SCREW, panhead 6MM

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT, 6MM hex

2шт.

9

3132174R1

LINK

LINK, fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

3144414R1

PIPE

LINE, overflow

1шт.

11

3055386R1

CLAMP

CLIP, fuel line

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Packing M12 x 15.5 x 1.5

3шт.

13

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

14

3056600R1

ADAPTER

ADAPTER

1шт.

15

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

SEALING WASHER, , Will work for 3055390R1 M12 x 18 x 1.5

1шт.

16

3144347R2

FUEL HOSE

LINE, filter injection pump fuel

1шт.

17

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

11шт.

18

3138776R91

COVER

BRACKET AND COVER ASSEMBLY

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

4шт.

19

3144498R91

BRACKET

BRACKET, fuel filter assy

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

SPRING WASHER, , Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

20

3132452R91

FILTER

FILTER ASSY, fuel, For components see list or parts under details of final fuel filter, Replaces 3144502R91

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

SPRING WASHER, , Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

21

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

3шт.

22

712616R1

PLUG,Hex, M14 x 1.5

PLUG, , Closing Hex, M14 x 1.5

4шт.

23

3132052R1

CLIP

CLIP, fuel line

1шт.

24

3055384R1

GASKET

GASKET, fuel injection pump

1шт.

25

3056885R3

PINION

GEAR, injection pump, 66T

1шт.

26

3055067R1

HUB

HUB, injection pump gear

1шт.

27

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

28

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

3шт.

29

3144501R1

HOSE

LINE, primary to final filter fuel

1шт.

30

PUMP ASSY, fuel injection, For components see list of parts under details of fuel injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

2шт.

31

3055423R93

HOLDER

HOLDER ASSY, injection nozzle, stud mounted, For components see list of parts under details of injection nozzle

3шт.

31

735253C91

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

3шт.

31

1934195C1

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

3шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex.

2шт.

31

3218250R91

HOLDER

HOLDER ASSY, injection nozzle, clamp mounted, For component parts list of parts under details of injection nozzle

1шт.

32

3056927R1

CLAMP

CLIP, fuel line

1шт.

33

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING, injection nozzle sealing

3шт.

34

3132541R1

GASKET

GASKET, closing cover

1шт.
