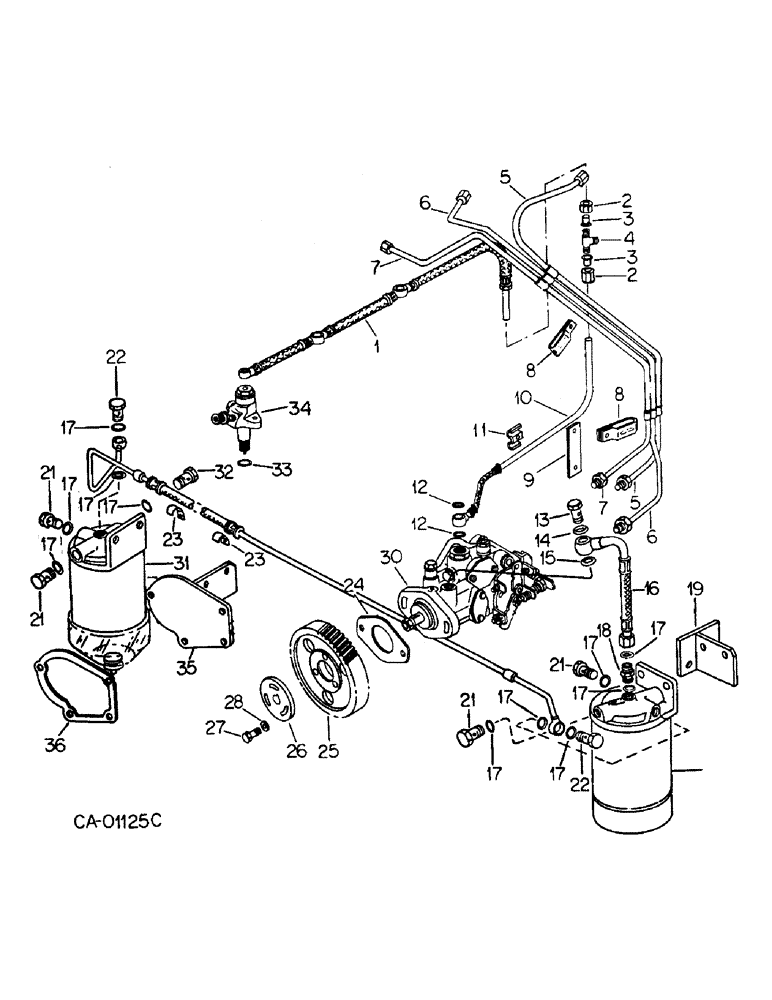

Запчасти Case IH D-179 (A-17) - FUEL INJECTION PUMP AND CONNECTIONS, MACHINES WITH BOSCH MODEL BR FUEL INJECTION PUMP

1

3132826R1

LINE

LINE, leak

1шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SLEEVE, ferrule

1шт.

4

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

TEE, union

1шт.

5

3136037R11

PIPE

SPARE PART PIPE ASSY, injection, cyl 3

1шт.

6

3136039R11

PIPE

PIPE ASSY, injection, cyl 2

1шт.

7

3136038R11

PIPE

PIPE ASSY, injection, cyl 1

1шт.

8

3132766R1

CLAMP

CLAMP, pipe

2шт.

176793

SCREW, 1/4-20 x 5/8 hex-hd cap

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

9

3132174R1

LINK

LINK, fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

3138684R1

PIPE

LINE, overflow

1шт.

11

3059647R1

CLAMP

CLIP, fuel line

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Packing M12 x 15.5 x 1.5

2шт.

13

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

14

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Packing M12 x 15.5 x 1.5

1шт.

15

3055390R1

RING

RING, packing

1шт.

16

3144620R2

HOSE

LINE, filter injection pump fuel, Will work for 3132487R1

1шт.

17

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

11шт.

18

3132483R1

UNION

CONNECTOR

1шт.

19

3136265R11

BRACKET

SPARE PART BRACKET, fuel filter assy

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

3132323R91

FILTER

FILTER ASSY, final fuel, For components see list of parts under details of final fuel filter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

SPRING WASHER, , Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

21

712616R1

PLUG,Hex, M14 x 1.5

PLUG, , Closing Hex, M14 x 1.5

4шт.

22

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

2шт.

23

3132052R1

CLIP

CLIP, fuel line

2шт.

24

3055384R1

GASKET

GASKET, fuel injection pump

1шт.

25

3056885R3

PINION

GEAR, injection pump, 66T

1шт.

26

3055067R1

HUB

HUB, injection pump gear

1шт.

27

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

28

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

3шт.

29

3136051R2

PIPE

LINE, primary to final filter fuel

1шт.

the primary line between filters is not marked. should be ref number 29. p/n 3136051r2 4-23-97 cw

1шт.

30

PUMP ASSY, fuel injection, For components see list of parts under details of fuel injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, .335 x .748 x .098

2шт.

31

3132273R91

FILTER

FILTER ASSY, primary fuel, For components see list of parts under details of fuel filter

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

SPRING WASHER, , Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

32

3056600R1

ADAPTER

ADAPTER

1шт.

33

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING, injection nozzle sealing

3шт.

34

3055423R93

HOLDER

HOLDER ASSY, injection nozzle, For components see list of parts under details of injection nozzle

3шт.

34

735253C91

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

3шт.

34

1934195C1

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzles

3шт.

425-115

NUT,5/16"-24, G5

NUT, 5/16-24 hex.

2шт.

35

3136049R11

COVER

SPARE PART BRACKET ASSY, fuel filter

1шт.

179827

FRONT AXLE

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16 pln type 5

4шт.

36

3132541R1

GASKET

GASKET, closing cover

1шт.
