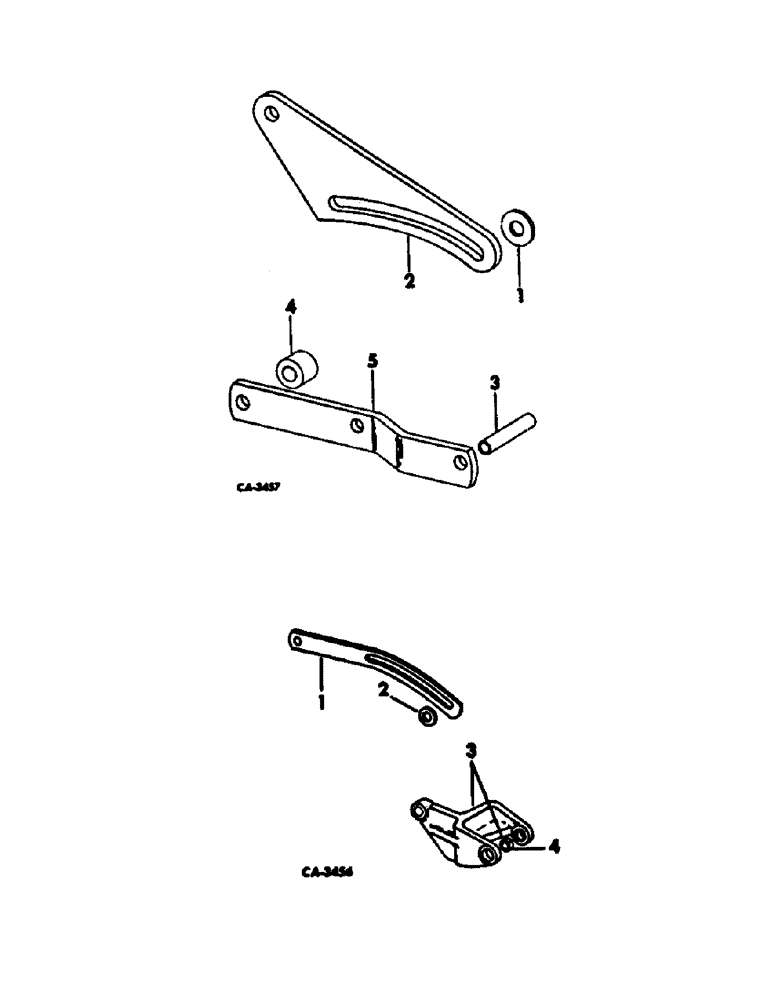

Запчасти Case IH D-179 (A-16) - ALTERNATOR AND GENERATOR MOUNTING

1

280185R1

SPACER

alternator-generator brace

1шт.

2

66466C1

STAY

BRACE, alternator-generator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

3

66465C1

BUSHING

alternator-generator mounting bolt

1шт.

4

397384R1

SCRAPER RING

SPACER, alternator-generator bracket, Optional w/314148R1 and 525820R1

1шт.

4

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

Alternator-generator bracket, Optional w/397384R1 and 525820R1 3/8" X-Strng Pipe x .469"

1шт.

4

525820R1

SPACER,3/8" Pipe x .469"

alternator-generator bracket, Optional w/397384R1 and 314148R1

1шт.

5

66467C1

HOLDER

BRACKET, alternator-generator mounting

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21404R1

SCREW,Hex, 5/16"-18 x 4 1/2", G8

5/16-18 x 4-1/2 hex-hd cap

1шт.

9413977

NUT

5/16-18 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

REF#5A SCREW-REPLACED BY 113-159 8/19/96

1шт.

REF#5CSCREW-REPLACED BY 113-167 8/19/96

1шт.

1

534312R2

BRACE

alternator-generator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

2

280185R1

SPACER

alternator-generator brace

1шт.

REF#2A SCREW-REPLACED BY 113-184 8/19/96

1шт.

REF#2B WASHER-REPLACED BY 192-20 8/19/96

1шт.

REF#2C NUT-REPLACED BY 25-105 8/19/96

1шт.

3

533789R11

BRACKET

ASSY, alternator-generator mounting

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

536241R1

BUSHING

alternator-generator mounting bracket

1шт.
