Запчасти Case IH D-179 (A-12) - CRANKSHAFT, FLYWHEEL AND BEARINGS

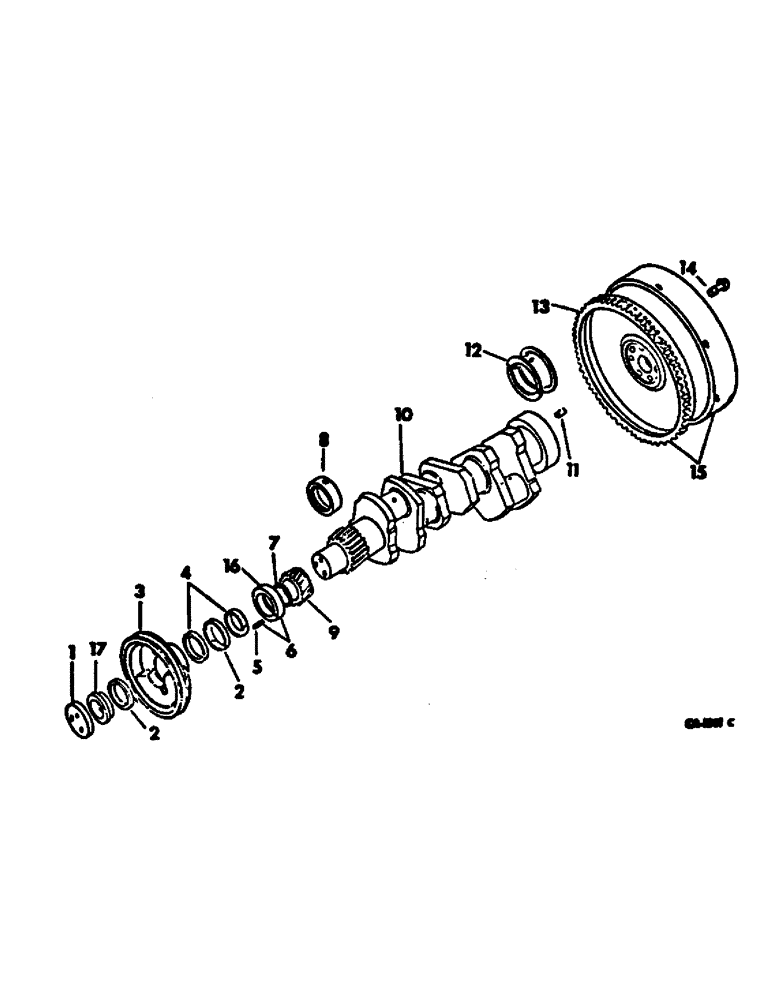

Схема запчастей Case IH D-179 - (A-12) - CRANKSHAFT, FLYWHEEL AND BEARINGS
6
9
4
12
1
15
11
13
8
17
3
2
5
14
16
2
10
7

Артикул

Название

Примечание

Количество

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure, Used w/crankshaft pulley 3136251R1

2шт.

3

3138790R1

PULLEY

crankshaft, On orders for pulley, 3136251R1 Order pulley, 3138790R1 and ring, 3138874R1, 454 tractors with serial no. O21313 and below, 464 tractors with synchromesh transmission

1шт.

3

3144613R1

PULLEY

crankshaft, 454 tractors with serial no. O21314 and above

1шт.

4

3055152R91

RING

ELEMENT, spring tightener, Used w/crankshaft pulley 3136251R1

2шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

RING ASSY, distance, Not serviced separately, Order package, crankcase oil seal 3136724R93

1шт.

7

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

8

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, crankshaft main, std

3шт.

8

3056832R21

BEARING ASSY

BEARING ASSY, crankshaft main - .010 U/S

3шт.

8

3056877R21

BEARING ASSY

BEARING ASSY, crankshaft main - .020 U/S

3шт.

8

3055779R21

BEARING ASSY

ASSY, crankshaft main - .030 U/S

3шт.

9

3055028R1

PINION

GEAR, crankshaft pinion, 33T

1шт.

10

3136045R93

CRANKSHAFT

W/BEARINGS, std, 454 tractors with serial no. O21313 and below, 464 tractors with sycromesh transmission, 454 tractors with hydrostatic transmission, Consists of

1шт.

CRANKSHAFT (NSS)

1шт.

37-1616

DOWEL,3/8" x 1"

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055028R1

PINION

GEAR

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

3шт.

3055351R91

BEARING ASSY

BEARING

3шт.

10

3055782R92

CRANKSHAFT BEARING

W/BEARING, std, 454 tractors with serial no. O21314 and above, Consists of

1шт.

CRANKSHAFT (NSS)

1шт.

37-1616

DOWEL,3/8" x 1"

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055028R1

PINION

GEAR

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

3шт.

3055351R91

BEARING ASSY

BEARING

3шт.

11

37-1616

DOWEL,3/8" x 1"

PIN, 3/8 x 1 dowel

1шт.

12

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, crankshaft main, std

1шт.

12

3056820R11

BEARING ASSY

BEARING ASSY, crankshaft main - .010 U/S

1шт.

12

3056875R11

BEARING ASSY

BEARING ASSY, crankshaft main - .020 U/S

1шт.

12

3055776R11

BEARING ASSY

BEARING ASSY, crankshaft main - .030 U/S

1шт.

13

60883H

RING GEAR

GEAR, ring

1шт.

14

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, Used w/flywheels 3136044R31, 3136044R4, 3144614R93 and 3144614R94

7шт.

14

3132159R2

BOLT,Hex, 1/2" - 20 x 63.5mm

flywheel, Used with flywheels 3136044R11, 3136044R21, 3144614R91 and 3144614R92

7шт.

REF#14 SHOULD USE PART 3055156R2 8/19/96

1шт.

15

3136044R41

FLYWHEEL WITH GEAR

FLYWHEEL ASSY, Also order seven bolts, 3218037R1, 454 tractors with serial no. O21313 and below, 464 tractors with synchromesh transmission, 454 tractors with hydrostatic tranmsission

1шт.

15

3144614R94

FLYWHEEL

ASSY, Also order seven bolts 3218037R1, 454 tractors with serial no. O21314 and above

1шт.

16

RING, Not serviced separately, Order package, crankcase oil seal 3136724R93

1шт.

17

3138874R1

BEARING WASHER

RING, clamping, Used with pulley, 3138790R1

1шт.

3136724R94

GASKET

PACKAGE, crankcase oil seal service, Consists of

1шт.

RING (NSS)

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

SEAL (NSS)

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

Выбрано товаров: 48
