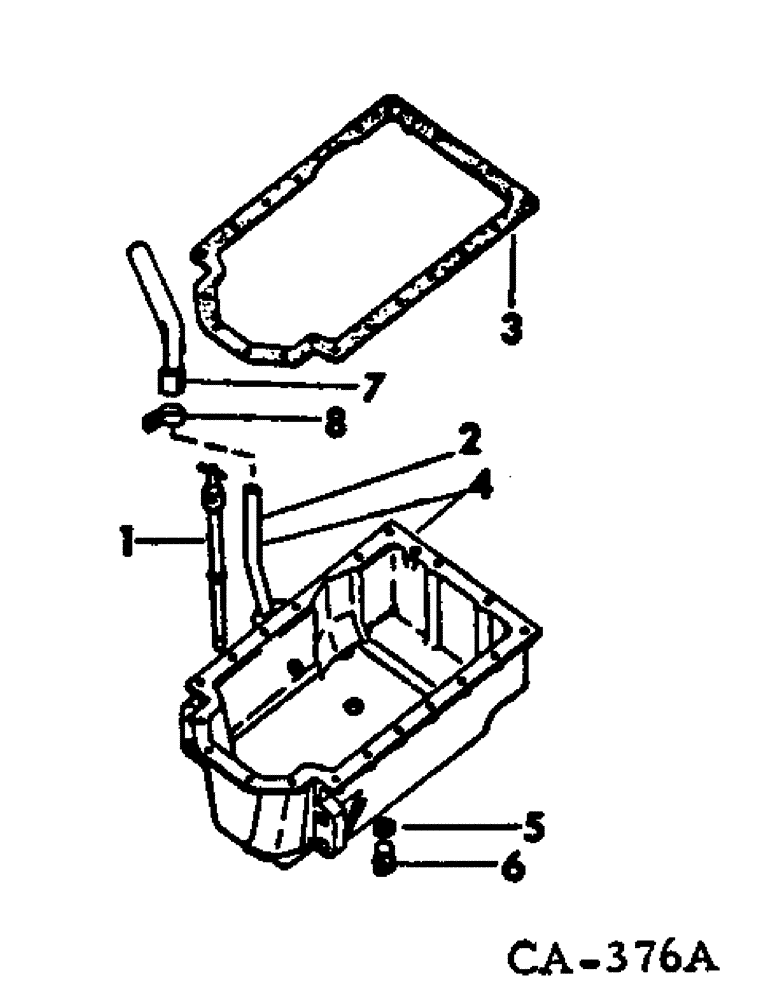

Запчасти Case IH D-179 (A-11) - CRANKCASE OIL PAN

1

3136242R2

DIPSTICK

GAGE ASSY, oil level

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, oil filling

1шт.

3

3055160R1

OIL PAN GASKET SET

oil pan

1шт.

4

3136042R95

SUMP

PAN ASSY, oil

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

179830

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

933570R1

WASHER

DISC, spring

4шт.

5

933609R1

RING

SEAL, washer, Replaces 933609R1(replaces 933608R1)

1шт.

6

3059999R3

PLUG

filler and drain, Replaces 3131883R2(replaces 3132544R2)

1шт.

7

NOT USED THIS APPLICATION

1шт.

8

NOT USED THIS APPLICATION

1шт.
