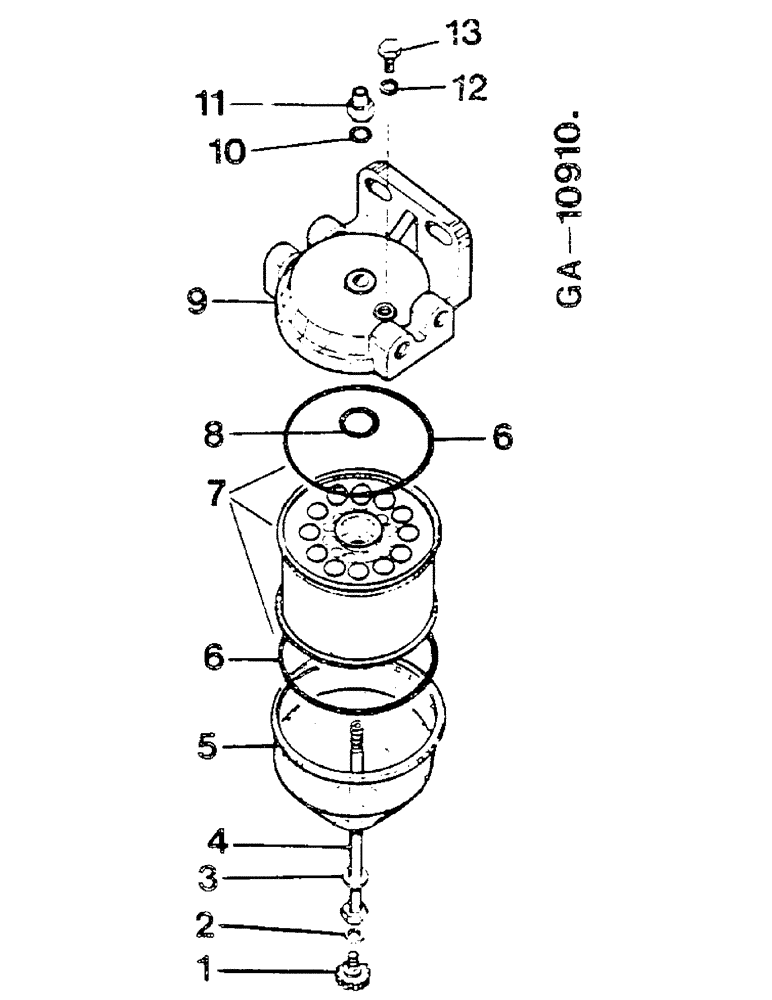

Запчасти Case IH D-179 (11-076) - FUEL FILTER, BOSCH

3144502R91

FILTER

CONSISTS OF ITEMS 1 THRU 13

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

1

3144475R1

SCREW

PLUG, DRAIN

2шт.

2

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

PACKING

2шт.

3

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

PACKING

2шт.

4

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

HOLLOW

2шт.

5

3144478R1

FILTER BOWL

GLASS

2шт.

6

3144472R1

RING

"BOSCH"

4шт.

6

3105001R1

SEAL

"CAV"

4шт.

7

3144477R92

FILTER

ELEMENT, WITH SEAL "BOSCH"

2шт.

7

3055506R93

ELEMENT, FILTER WITH SEAL "CAV"

2шт.

8

3144779R1

RING

PACKING "BOSCH"

2шт.

8

3044505R1

SEAL

PACKING "CAV"

2шт.

9

3144503R1

HEAD

COVER, HOUSING

2шт.

10

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

PACKING

2шт.

11

3144473R1

CROWN NUT

ACORN

2шт.

12

757760R1

RING

PACKING

2шт.

13

3144780R1

SCREW

AIR VENT

2шт.
